Panasonic EY6100 Service Manual

ORDER NO. MEW/PTD 9309-6100

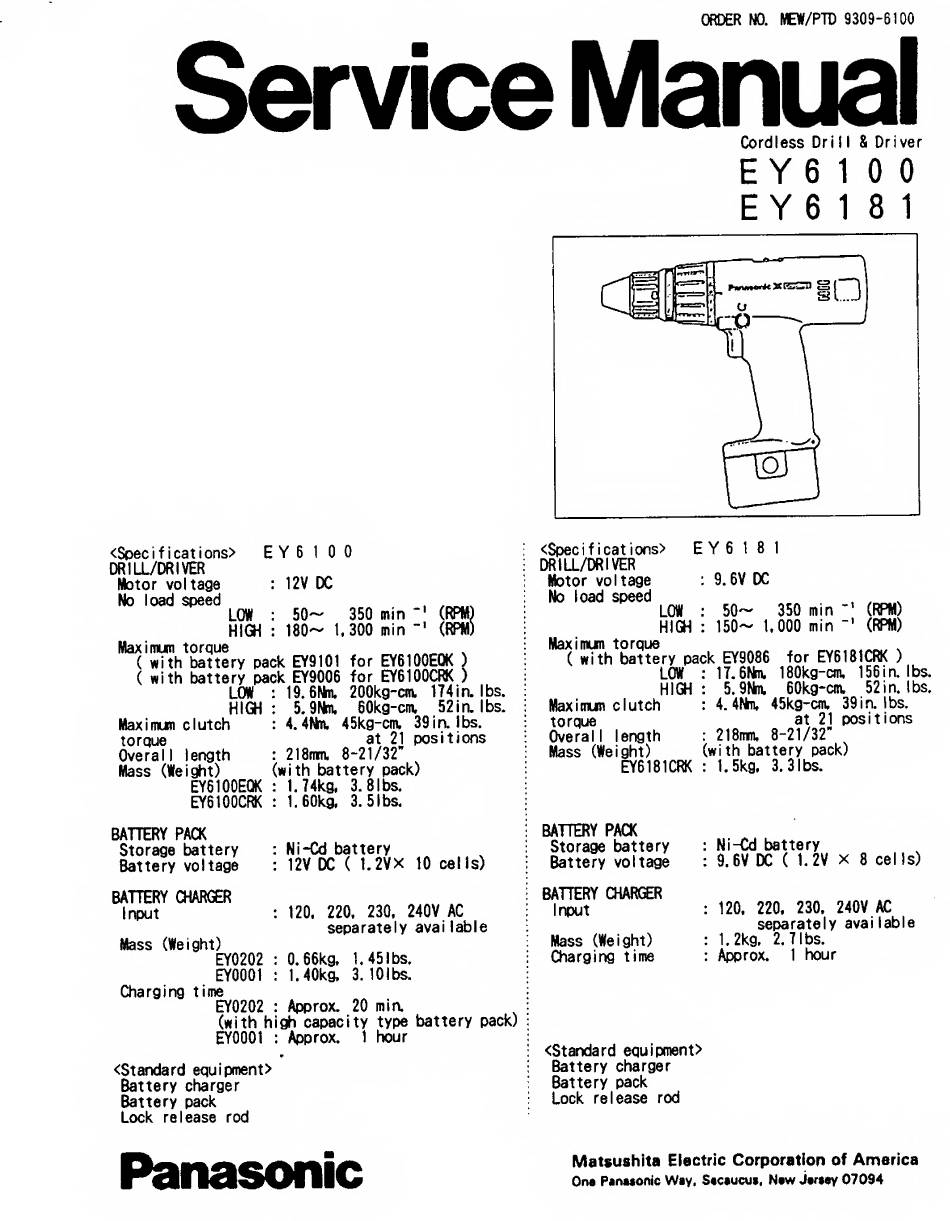

Service Manual
Cordless Drill 8 Driver
E Y 6 1 0 0
E Y 6 1 8 1
<Spec i f i cat i ons> E Y 6 1 0 0
DRILL/DRIVER
Itotor voltage : 12V X
No load speed
LOW : 50— 350 min
HIGH : 180- 1.300 min
(RPM)
(RPM)
Maximum torque x
(with battery pack EY9101 for EY6100EOK )
( with battery pack EY9006 for EY6100CW )
LOW : 19.6^hl, 200kg-cm. 174in. lbs.
HIGH: 5.9Ntn. 60kg-cnv ,52in. lbs.
Maximum clutch : 4.4Mm, 45kg-cm, 39in. lbs.
torque at 21 positions
Overall length : 218mm. 8-21/32"
Mass (Weight) (with battery pack)
EY6100EQK : 1.74kg, 3.8lbs.
EY6100CRK : 1.60kg, 3.5lbs.
BATTERY PACK
Storage battery : Ni-Cd battery
Battery voltage : 12V X ( 1.2VX 10 cells)
<Specifications>
DRILL/DRIVER
Motor voltage
No load speed
LOW
E Y 6 1 8 1
: 9.6V X
: 50— 350 min
HIGH : 150- 1. 000 min
-1
-1
(RPM)
(RPM)
Maximum torque ^
( with battery pack EY9086 for EY6181CRK )
LOW : 17.6Nm, 180kg-cm, 156in. lbs.
HIGH: 5.9Nm. 60kg-cm, 52 in. lbs.
Maxi nun clutch : 4.4Mfn, 45kg-cm. 39 in. lbs.
torque at 21 positions
Overall length : 218mm, 8-21/32"
Mass (Weight) (with battery pack)
EY6181CRK : 1.5kg. 3.3lbs.
BATTERY PACK
Storage battery
Battery voltage
: Ni-Cd battery
: 9.6V X ( 1.2V X 8 cells)
BATTERY CHARGER
Input : 120. 220. 230, 240V AC
separately avaliable
Mass (Weight)
EY0202 : 0.66kg. 1.45lbs.
EY0001 : 1.40kg. 3. 10lbs.
Charging time
EY0202 : Approx. 20 mia
(with high capacity type battery pack)
^0001 : Approx. 1 hour
<Standard equipment>
Battery charger
Battery pack
Lock release rod
: 120, 220. 230. 240V AC
separately available
: 1.2kg. 2. 7 lbs.
: Approx. 1 hour
<Standard equipment>
Battery charger
Battery pack
Lock release rod
BATTERY CHARGER
Input
Mass (Weight)
Charging time
