TESmart HKS0401B2U Quick Start Manual

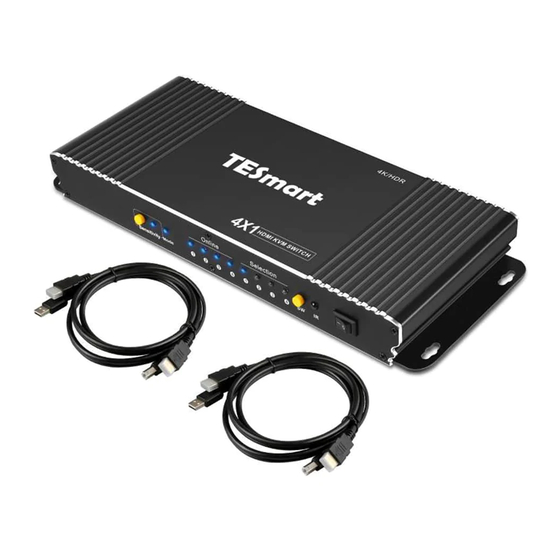

4x1 HDMI KVM Switch 4K@60Hz 4:4:4
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer
equipment easily. It makes you available to switch easily and reliably between any HDMI computers using
one HDMI compliant display.
The 4x1 HDMI KVM Switch supports USB 2.0 device, you even can attach USB drive, printer, barcode
scanner or other USB devices to the KVM. Switching can be controlled through variable methods, front
panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs. Support
analog L/R audio output. Support keyboard and mouse pass through mode to improve KM compatibility.
Features:
Using only 1 set of keyboard, mouse and monitor to control 4 PCs

Support auto switching to monitor computers in a specified time interval

Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to

switch inputs
Available to use keyboard and mouse without any delay after switch input sources

Support resolution up to 3840*2160@60Hz 4:4:4

HDCP 2.2 compliant

Support USB 2.0 for printers, USB drives, etc

With EDID emulators in each input port, keep PCs always having correct display information

Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and

other Linux based system.
Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn

off devices
Support analog L/R audio output

Support HDR 10 and Dolby Vision

Support keyboard and mouse pass through mode to improve KM compatibility

Packing List:
1 * 4x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * User manual
