TESmart HKS0401B1U Quick Start Manual

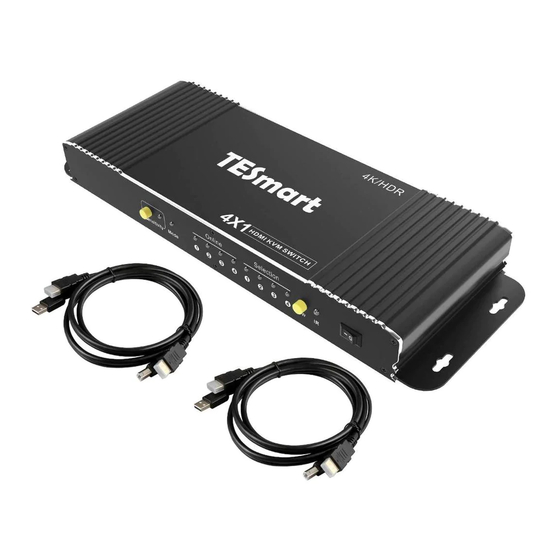

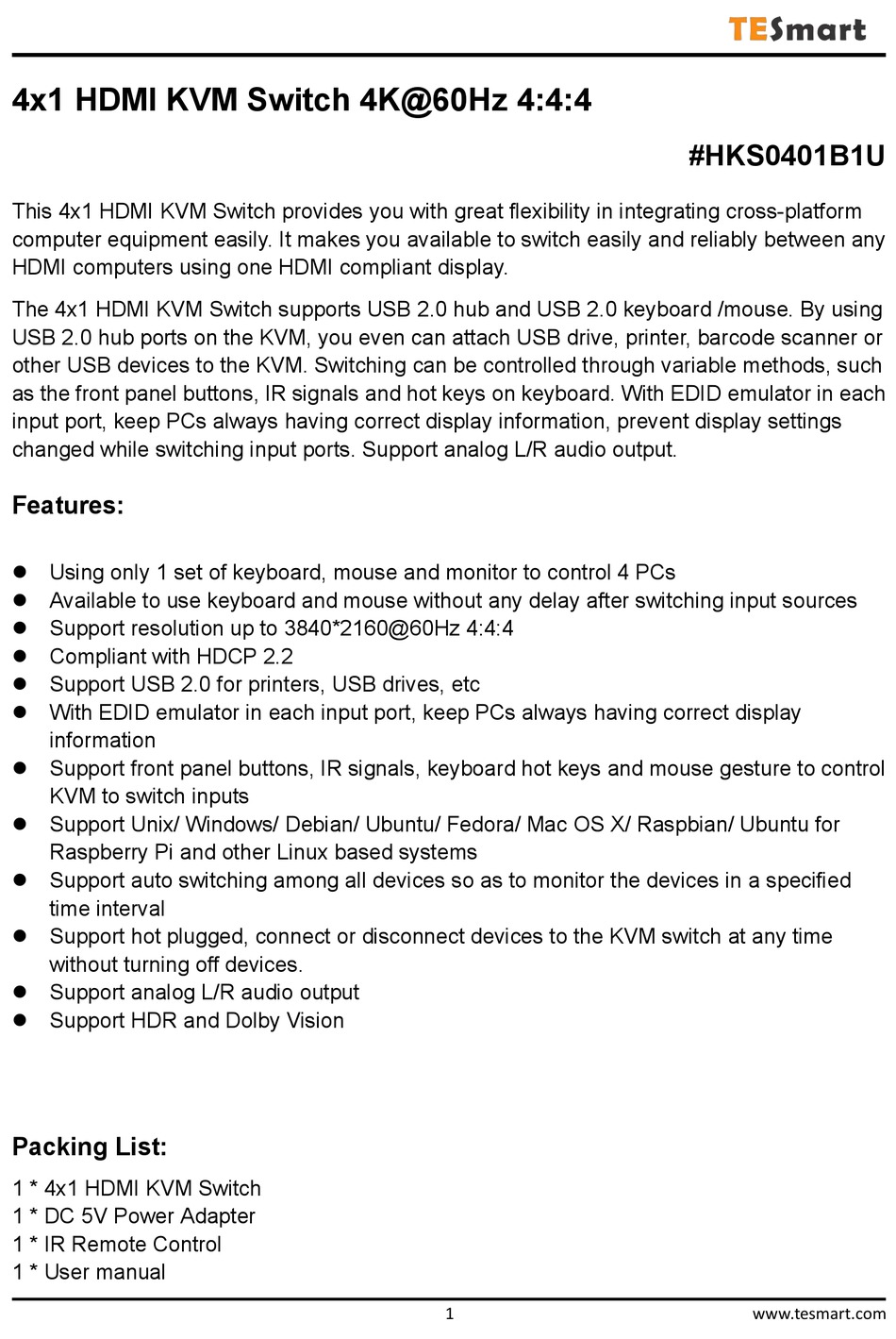

4x1 HDMI KVM Switch 4K@60Hz 4:4:4
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform
computer equipment easily. It makes you available to switch easily and reliably between any
HDMI computers using one HDMI compliant display.
The 4x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using
USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or
other USB devices to the KVM. Switching can be controlled through variable methods, such
as the front panel buttons, IR signals and hot keys on keyboard. With EDID emulator in each
input port, keep PCs always having correct display information, prevent display settings
changed while switching input ports. Support analog L/R audio output.

Features:

 Using only 1 set of keyboard, mouse and monitor to control 4 PCs
 Available to use keyboard and mouse without any delay after switching input sources
 Support resolution up to 3840*2160@60Hz 4:4:4
 Compliant with HDCP 2.2
 Support USB 2.0 for printers, USB drives, etc
 With EDID emulator in each input port, keep PCs always having correct display
information
 Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control
KVM to switch inputs
 Support Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for
Raspberry Pi and other Linux based systems
 Support auto switching among all devices so as to monitor the devices in a specified
time interval
 Support hot plugged, connect or disconnect devices to the KVM switch at any time
without turning off devices.
 Support analog L/R audio output
 Support HDR and Dolby Vision

Packing List:

1 * 4x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * User manual
