Hartman Sorrento 67001068 Assembly Instructions Manual

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is a soft metal and over tightening may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled
ASSEMBLY STEPS:
1. Position part (A), part (B) and part (C) ready for assembly
2. LOOSELY attach RH arm with leg frame (A) and LH arm with leg frame (B) to seating section (C), using bolts (H) and flat washers (J)
with spanner (K) DO NOT TIGHTEN BOLTS AT THIS STAGE.
3. LOOSELY attach middle leg (E) to seating section (C) using bolts (I) and flat washers (J) with spanner (K) DO NO TIGHTEN BOLTS AT
THIS STAGE.
4. LOOSELY attach backrest (D) to assembled leg frames using bolts (I) and flat washers (J) with spanner (K) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
5. Tighten all bolts using the spanner (K)
6. Turn it over and place in desired position, then put all seat cushions (F) and back cushions (G) on the sofa
For more information regarding maintenance of your furniture please visit

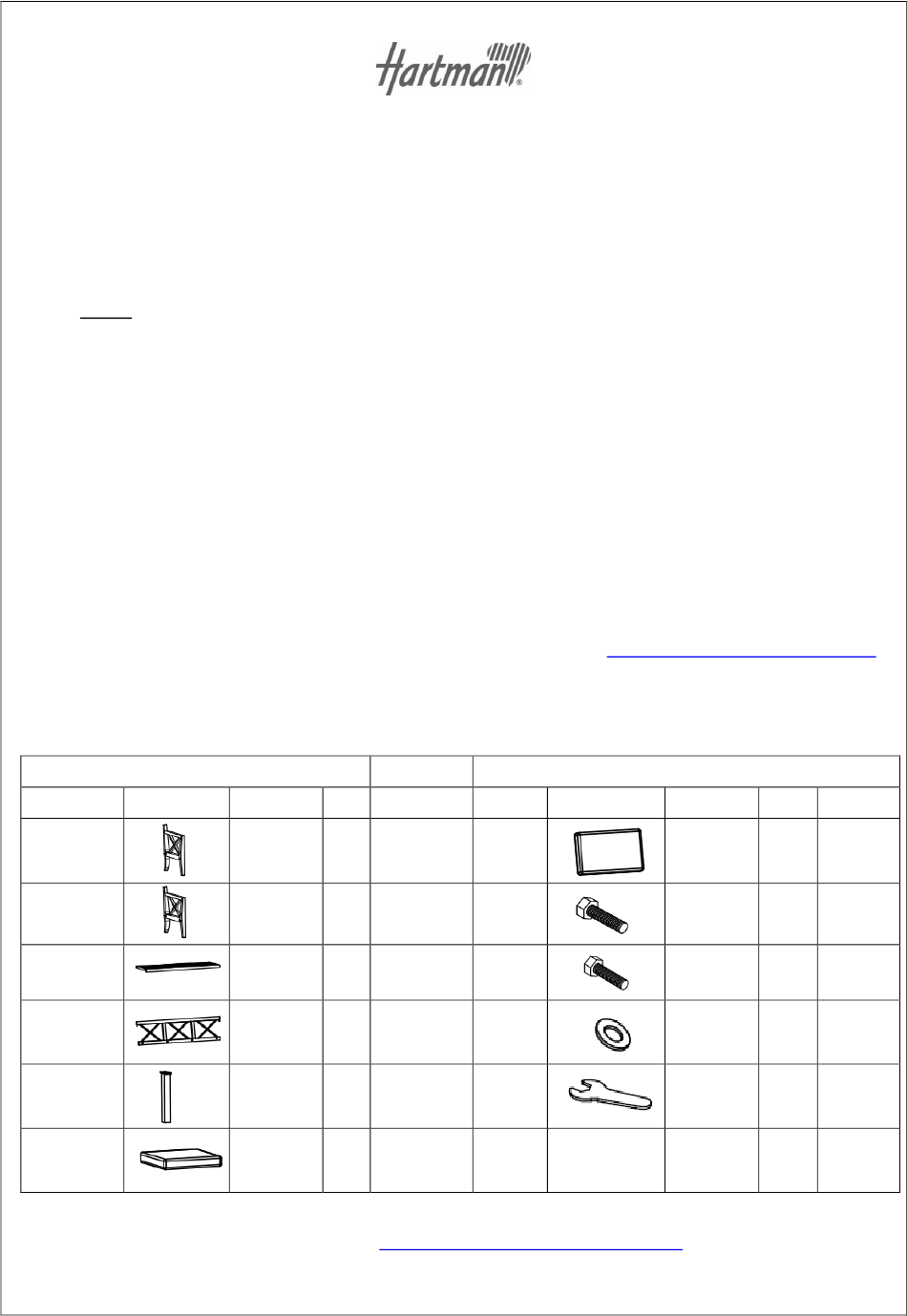

Component's
Parts List Parts Picture
A
B
C
D
E
F
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento 3 Seat Lounge Sofa
(
Description Q'ty Part no
RH arm 1 67001068A
with leg
frame
67001068B
LH arm 1
with leg
frame
Seating 1 67001068C
section
67001068D
Backrest 1
Middle leg 1 67001068E
68001068F
Seat 3
cushion
http://spares.hartmanuk.co.uk/purchase
67001068 )
Fixings
Parts list Parts Picture
G
H
I
J
K
https://www.hartmanuk.com/home
Description Q'ty
Back 3
cushion
M6*35 bolts 8
M6*25 bolts 4
Flat 12
washers
Spanner 1
Part no.
68001068
G
2100040
1231162
1061162
2100041
