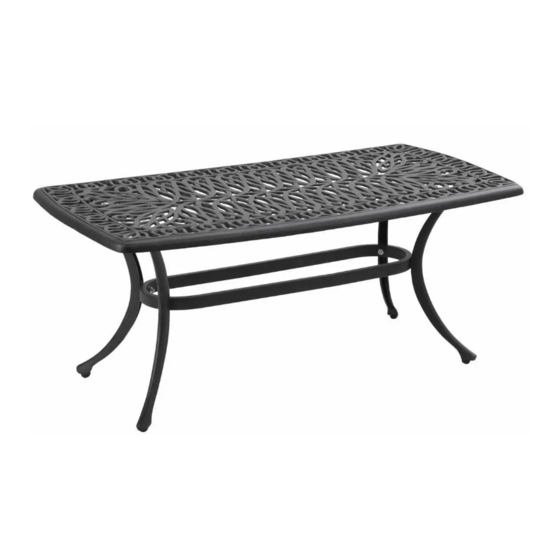

Hartman AMALFI 60749162 Assembly Instructions

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.

ATTENTION:

1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools however you will require a 14mm spanner and flat head screw driver to assemble product.
4. Please allow 30 minutes for assembly.
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the table over and into position when
fully assembled.

ASSEMBLY STEPS:

1. LOOSELY attach centre ring (B) to the legs (C) with allen key (J). Secure using big flat washers (E), big ock washers (F) and nuts (G)
DO NOT TIGHTEN THE NUTS AT THIS STAGE
2. Turn the table top (A) upside down on a soft clean surface.
3. Attach 4 bolts (D) to the table top using flat head screw driver.
4. Attach thelegs (C) to the table top at the points where the bolts (D) have been placed. Then slidebig flat washers (E), big lock washers
(F), and nuts (G) on to the bolt.DO NOT TIGHTEN THE NUTS AT THIS STAGE
5. Tighten all the bolts and nuts with the 14mm spanner one by one being careful not to over tighten any, as this will cause the thread to
become damaged.
6. Place nut caps (H) on all visible nuts (G)
7. Turn the table onto its legs and use the adjuster feet to level the table.
For more information regarding maintenance of your furniture please visit
http://www.hartmanuk.co.uk/after_care_videos.html

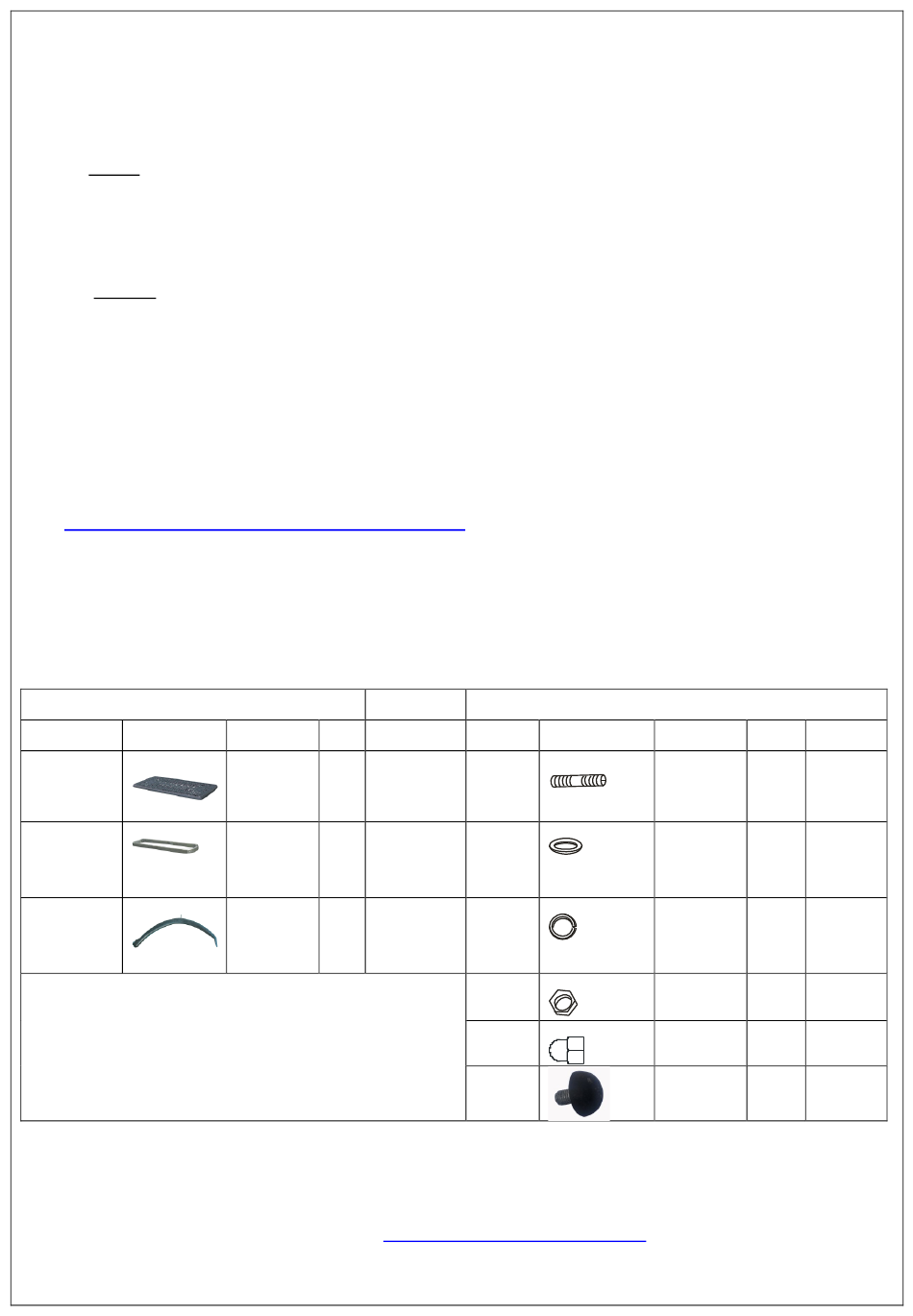

Component's

Parts List

Parts Picture
A
B
C
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Description Q'ty Part no.
Table Top 1 60749162A
60749053A
60749088A
Centre Ring 1 60749162B
60749053B
60744088B
Table Leg 4 60749162C
60749053C
60749088C
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts list Parts Picture
D
(M8*40)
E
F
G
H
I
Description Q'ty Part no.
Bolt 4 1000162
Big Flat 8 1001162
Washer
Big Lock 8 1002162
Washer
Nut 8 1003162
Nut Cap 8 1004162
Screw In 4 1005162
Feet
