Hartman 68135156 Assembly Instructions Manual

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled

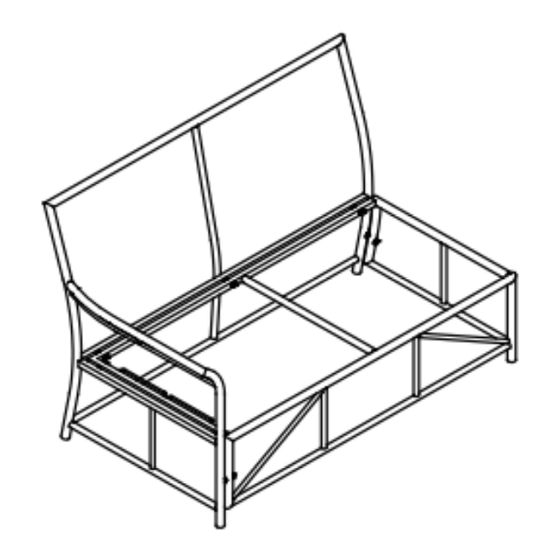

ASSEMBLY STEPS FOR LEFT HAND SECTION:
1. Position part (A)and part (B) ready for assembly
2. With 5 bolts (F) and 5 flat washers (C) LOOSELY attach back piece (A) with spanner (G) to seating section (B) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
3. With 2 bolts (D) and 2 flat washers (C) LOOSELY attach front and rear leg with spanner (G) to seating section (B) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Tighten all bolts using the spanner (G) cover all bolts using nut cap (E)
5. Turn it over and place where required.
For more information regarding maintenance of your furniture and to register your
warranty, please visit www.hartmanuk.com

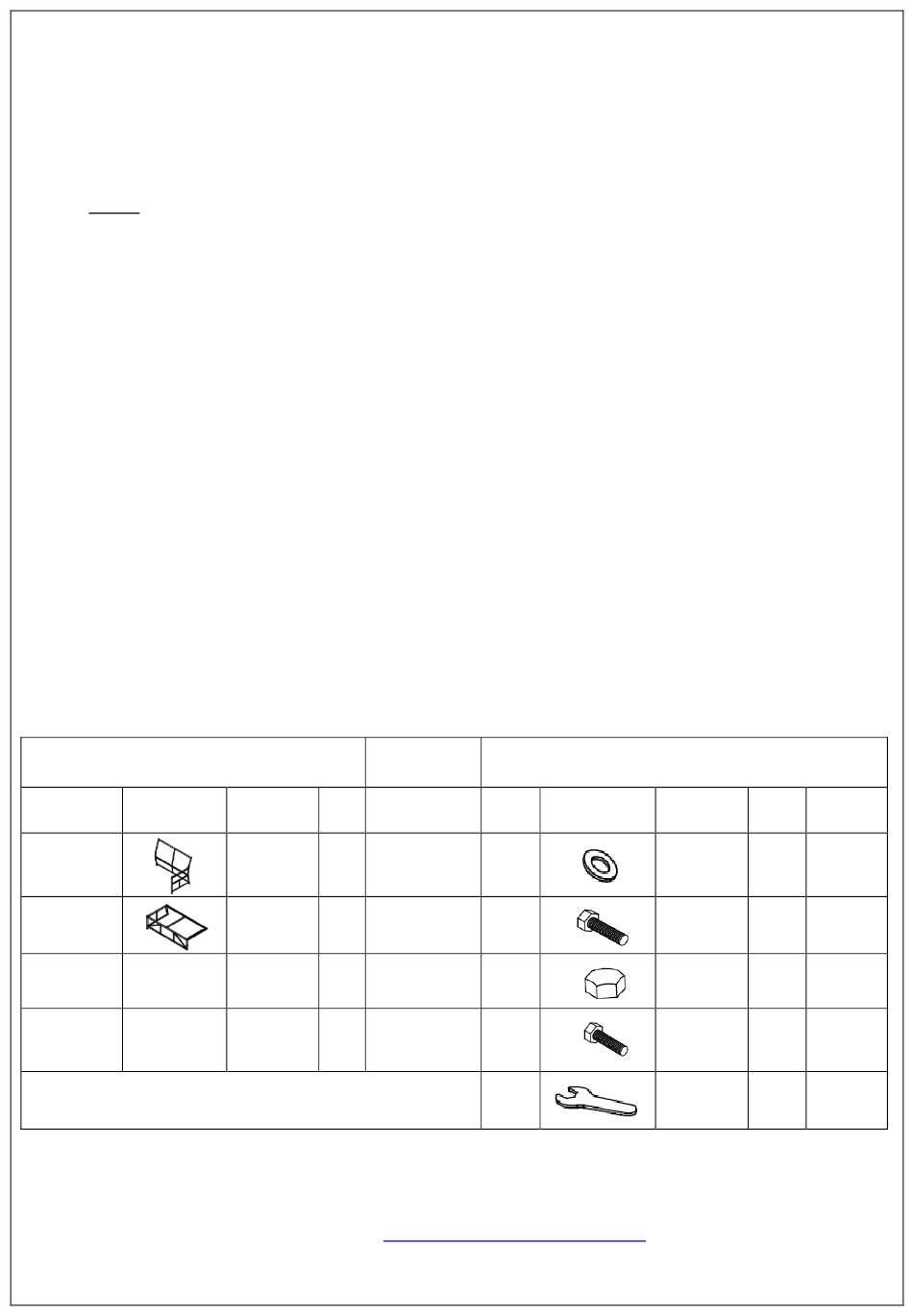

Component's LEFT HAND SECTION
68148145 / 68135146 / 68135156
Parts List Parts Picture
A
B
For replacement or lost spare parts please go to
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
Q'ty
Description Part no
68148145ALH
Backrest 1
68135146ALH
with LH
68135156ALH
arm
68148145BLH
Seating 1
68135146BLH
Section
68135156BLH
http://faq.hartmanuk.co.uk/spares/
Fixings
Parts Parts Picture
list
C
D
E
F
G
Q'ty
Description Part no.
Big Flat 7 1311162
Washers
M6*50 bolts 2 2002176
2002170
Nut cap 7
M6*45 bolts 5 2002167
Spanner 1 1020162
