- Page 1 MSC60099 COMFORT GLIDE AIR BLOWER STAND OPERATOR MANUAL Mobile Cart Manufactured for Medline Industries, LP, Three Lakes Drive, Northfield, IL 60093 USA Made in China www.medline.com 1-800-Medline V1 RG22RMM...
- Page 2 SAFETY SYMBOL DECLARATION Safety sign Reference Title Description Refer to instruction ISO 7010-M002 manual/booklet Filled circles with an General mandatory ISO 7010-M001 exclamation mark indicate an action sign action that must be performed ISO 7010-P001 Circular icons with a diagonal General prohibition and ISO 3864-1, bar tell you that the action...
- Page 3 Safety Instructions To ensure your safety in using the Comfort Glide Air Blower cart, the following safety information and all instructions must be followed. When the lock-knob is released, the spring-loaded column or shock absorber col- umn may expand rapidly and could cause injury. Carefully hold the upper column while unscrewing the lock-knob.
- Page 4 For up-to-date manual information, contact your local Medline sales representative or call 1-800-Medline. Content of this manual is the property of Medline Industries. Whole or parts of content from this manual are not allowed to be used and distributed without permission.
-
Page 5: Table Of Contents
Contents 1. Components in a package ............................1 2. Picture of mobile cart ............................3 3. Assembly of column to base ..........................4 4. Storage basket attachment ..........................5 5. Air blower basket attachment ........................... 6 6. Completed air blower cart ..........................7... -
Page 6: Components In A Package
1. Components in a package Picture Description Comfort Glide Air Blower Cart Wire basket (top) holds Air Blower Air-assisted column with lock knob Five-point base assembly with wheels Wire storage basket (front) Air-assisted column attachment plate for base assembly... - Page 7 Lock washer, for use with attachment plate and base assembly Nut, for use with attachment plate, lock washer and base assembly Wire basket (top) attachment screws Nut wrench, to attach air assisted column to base assembly Wire storage basket (front) attachment screws Hex wrench, to attach the top and front wire baskets...
-
Page 8: Picture Of Mobile Cart

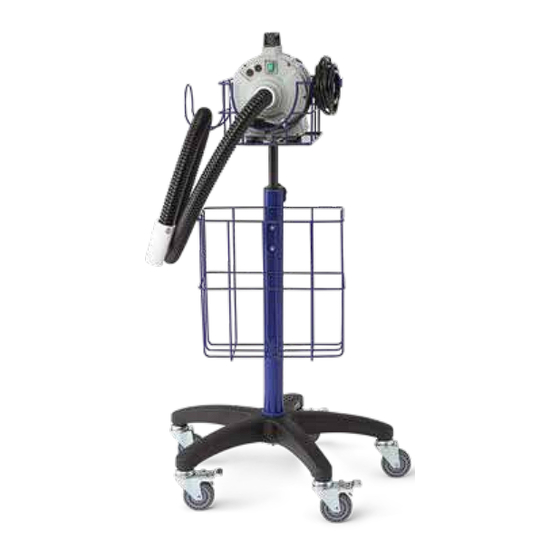

2. Picture of mobile cart 1. Power cord wrap 2. Air blower wire basket 3. Hose storage hook 4. Storage basket 5. Air-assisted column 6. Base assembly [Picture 1]... -
Page 9: Assembly Of Column To Base
3. Assembly of Column to Base Place base with wheels on a level, flat surface. Engage wheel lock(s) to prevent base from moving during assembly. See picture 2: Insert threaded shaft at bottom of air-assisted column into central hole of base. Steady column vertically with one hand. -
Page 10: Storage Basket Attachment
4. Storage Basket Attachment See picture 3: Align the two holes of the mounting plate for the storage (front) wire basket with the pair of holes on the column assembly, (opposite the column height adjust- ment knob.) Use the two screws provided to secure the basket to the column. -
Page 11: Air Blower Basket Attachment
5. Air Blower Basket Attachment See picture 4: Align the four holes of mounting plate at bottom of the blower (top) wire basket with the four holes on the plate at the top of the column assembly. Use the four screws provided to secure the basket to the column. -
Page 12: Completed Air Blower Cart
6. Completed Air Blower Cart [Picture 6]... - Page 14 FOLLOW US Medline Industries, LP, BLOG Three Lakes Drive, Northfield, IL 60093 1-800-MEDLINE (633-5463) medline.com | info@medline.com Manufactured for Medline Industries, LP, Three Lakes Drive, Northfield, IL 60093 USA www.medline.com 1-800-Medline Made in China V1 RG22RMM...
