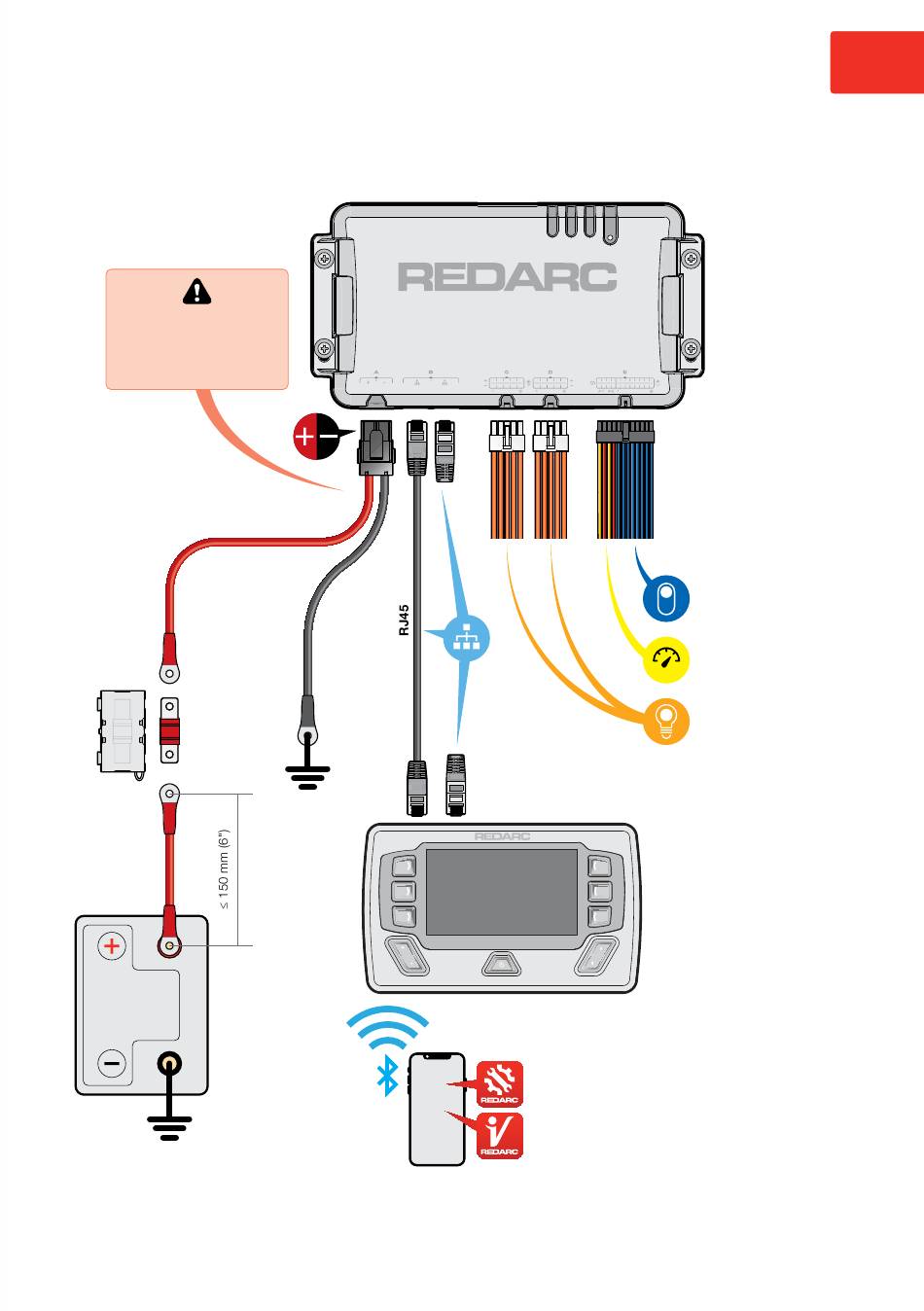

WIRING DIAGRAM — BASIC INSTALL
For a wiring diagram that includes a REDARC Manager, see the full-length TVMS1240 manual.
Do not connect to the
Main Unit until wiring of
C, D and E is complete
50 A
Fuse
Auxiliary
Battery
TVMS1240
DISP4300
Configurator App
RedVision App
EN
Input E 1−8
To Switches, To Ignition
Input E A1/A2
To Sensors
Output C/D
To Loads
5
