Summary of Contents for 5K PILATES FD2302

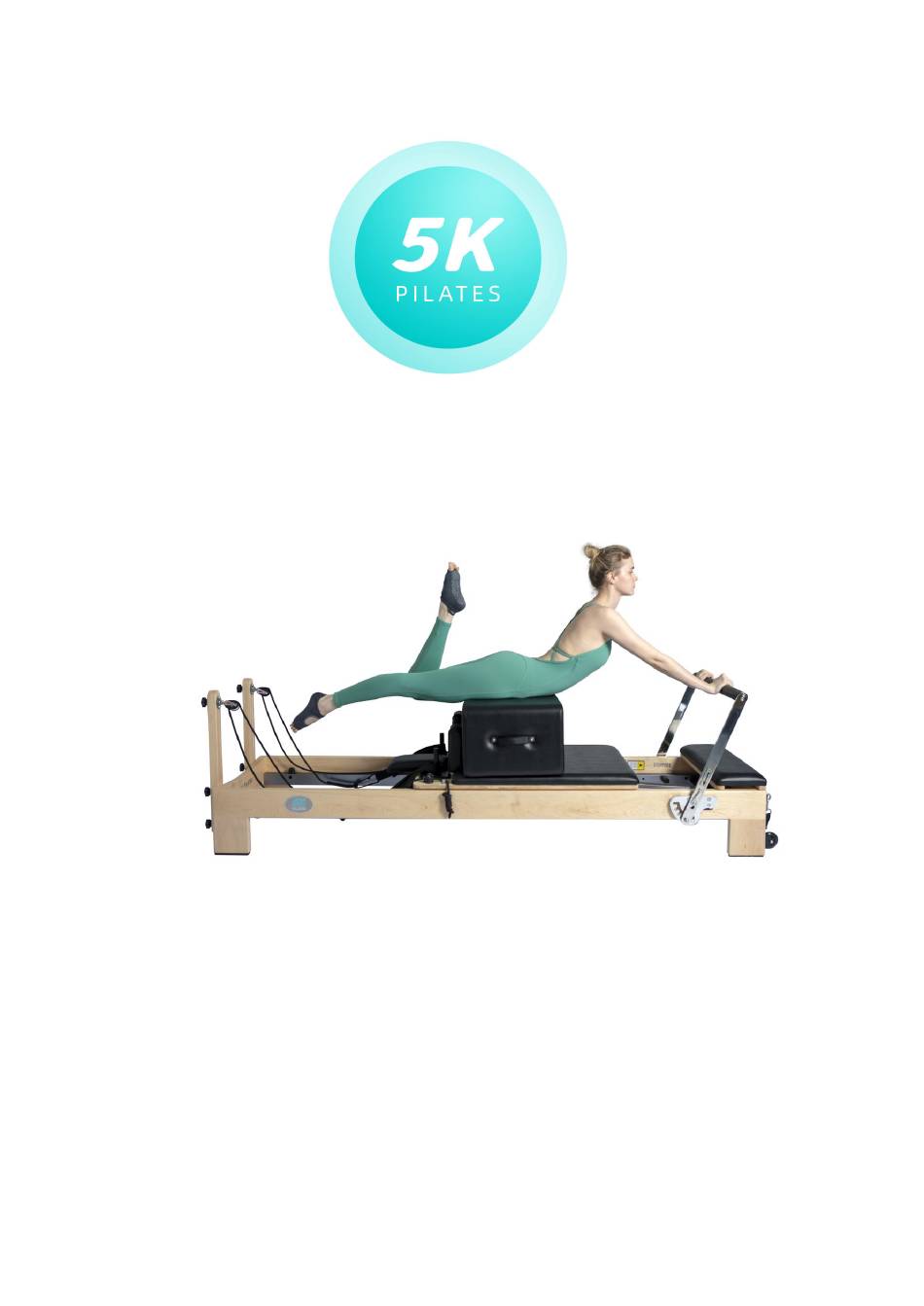

- Page 1 FD2302 Pilates Reformer Assembly Instruction & User Manual...
-
Page 2: Product Introduction
Size: 88 ̎ x 24 ̎ x 13 ̎ (223.5 x 61.5 x 33CM) l Net weight: 183lb(83kg) l Gross Weight: 300lb(136kg) l Pack size: 96 ̎ 29 ̎ 19 ̎ (244.0 73.3 48.5CM) l Packaging: Plywood Box FD2302 Reformer Map:... -
Page 3: Before Assembly
Before Assembly Unpacking the FD2302 reformer,you will receive the frame and all needed accessories as below. l Frame: l Accessories:... -
Page 4: Assembly Procedure
Assembly Procedure Start assemble each accessories with following steps. l Step 1: Install The Rope Riser The star nut is inserted into the rope riser and then into hollow at the end of the bed. You can adjust the rope at different height through the ropeway. - Page 5 l Step 3: Install The Jumpboard First, hand lever to adjust to the forth gear, this is very important. Then the two iron bars of the jumpboard are aligned with the two holes of the head of the bed and placed vertically, then fixd with nuts.
- Page 6 l Step 5: Attach The Ropes Thread one end of the rope into the rope pulley, extending into the rope holder and buckle, and place the silent straps & ropes on the rope holder. Fig13 Fig14 Fig15 l Step 6: Working With Springs The reformer bed is fitted with 5 springs in 2 strengths to offer a wide range of possible resistances.
- Page 7 l Step 7: Adjust The Handle Bar The handle bar is made of 304 stainless steel, mirror polished, with 6 adjustable gears.You can adjust the gear you need. Fig18 Fig19 Warning:In the process of use, if you find any screws loose, please be sure to fix the screws again first.
-
Page 8: Periodic Maintenance
Frame The main material of the FD2302 is a special grade maple, maple is characterized by high hardness, high appearance level and strong stability. The wood has been polished at least six times and coated with a thick layer of wood wax oil, which effectively protects the wood from air corrosion. But you should... - Page 9 l Track This track is made of aviation aluminum, which is hard oxidized, very thick and durable, and very silky to use. The only thing need to pay attention is that track dust needs to be cleaned regularly. l Hardware Ensure that all nuts and bolts are securely fastened. l Loops &...
- Page 10 Jumpboard - the use of the jumpboard must be supported by handle bar. This is very important! Congratulations! You are now ready to use your FD2302 Pilates Reformer. We hope that you can enjoy using your new Reformer. Have a good time！...
- Page 11 When standing on the reformer always put your first foot on the satnding platform and then the other on the carriage.when getting off the reformer from standing take your foot off the carriage first and then step down off the standing platform. Use the reformer in a clear space with at least 1m of space all around the machine, this equipment is for indoor use only on a firm and flat surface.
