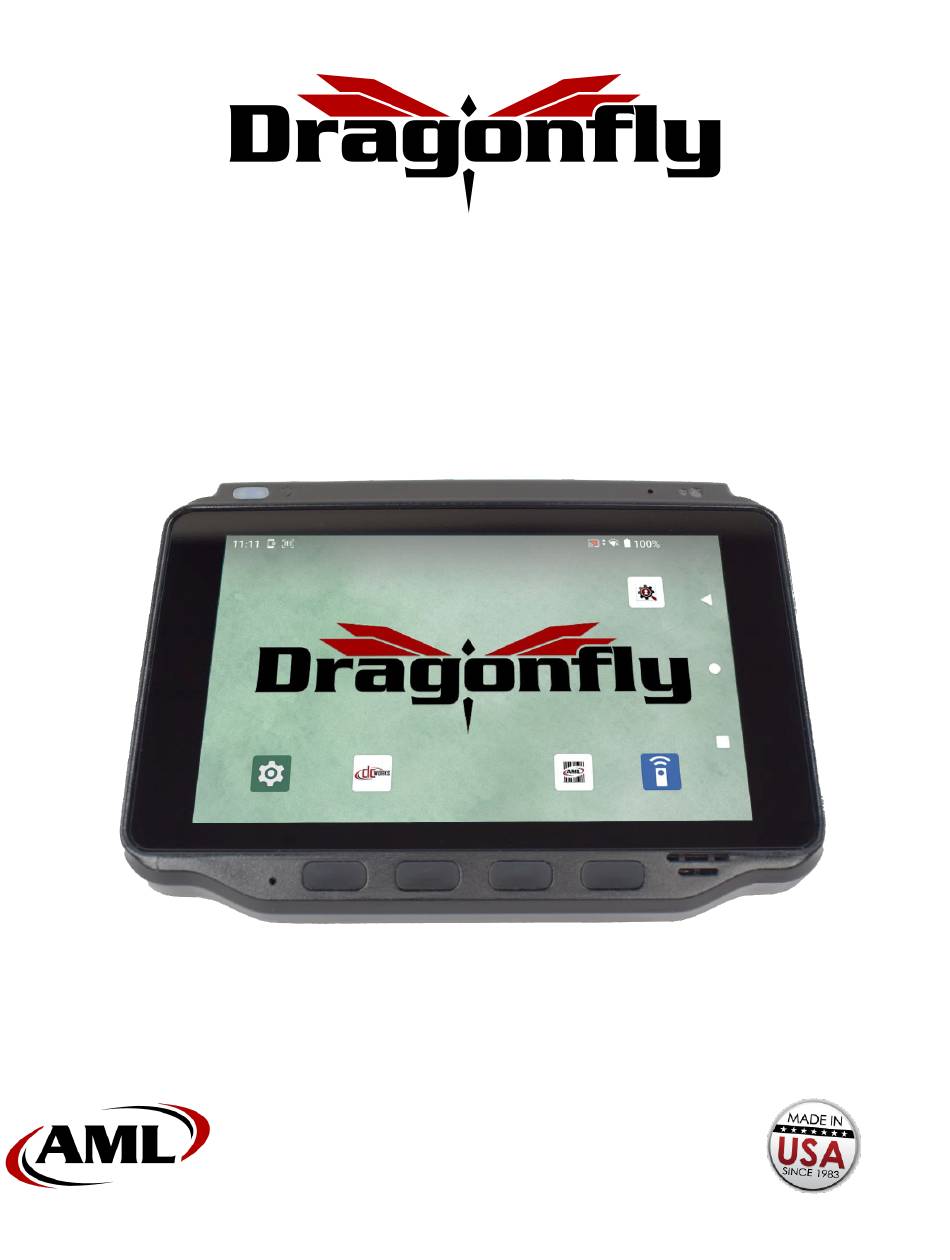

- Page 1 Wearable Computer Quick Reference Guide 7361 Airport Freeway, Richland Hills, Texas 76118 800-648-4452 www.amltd.com 032524...
-
Page 2: Specifications
1,000 tumbles @ 3.3ft/1m Sanitizing your Dragonfly The best way to clean and sanitize your AML mobile is to use a diluted solution of three-parts water and one-part rubbing alcohol. Rubbing alcohol is a diluted form of isopropyl alcohol. It typically contains 70% isopropyl alcohol with the balance consisting of other denaturants. -
Page 3: Product Registration And Warranty
AML Technical Support Team AML technical phone support is toll-free and pain-free. Speak with a US-based AML employee trained to answer your question and do everything possible to resolve any issues that might arise. 877-842-3990 Mon-Fri, 8:00 to 5:00 CST. -
Page 4: Device Layout
DEVICE LAYOUT Power Button, Charge Indicator, Suspend/Resume Charging Port, USB Communications Microphone Light Sensor, Proximity Sensor Accessory Port Cover Speaker Programmable Buttons Microphone Arm Base Attachment Lock Battery Lock Battery... -
Page 5: Included Hardware
INCLUDED HARDWARE BATTERY PACK (P/N: 180-2170) DRAGONFLY WEARABLE COMPUTER (Base Model: M6500) ARM BASE (P/N: 173-6509) ARM PAD (P/N: 173-6510) ARM STRAP (P/N: ACC-6500STR-V) Item Part Number Specifications Dragonfly M6500 (Base Model) Battery Pack 180-2170 18.5Wh, 5Ah, 3.7V, Li-Ion Arm Base 173-6509 Nylon Arm Pad... - Page 6 BATTERY AND BASE LOCKS The locking mechanisms for both the Battery and the Arm Base can be found on the left side of the Dragonfly. The Battery lock is highlighted in red, and the Arm Base lock is highlighted in blue. Slide the locks in the direction indicated to operate.
-
Page 7: Installing The Battery
INSTALLING THE BATTERY Align tracks, or rails, on the battery with the tracks, or rails, in the battery compartment of the Dragonfly. Slide fully into position. Slide battery latch to unlock. Slide the battery lock towards the rear of the Dragonfly to lock the battery into place. -
Page 8: Battery Care
BATTERY CARE Adequate battery life is crucial to the performance of mobile computing devices. Here are some tips for prolonging the life of your Dragonfly batteries: Charging your batteries at room temperature is recommended. Charging at lower • temperatures will require a longer charge time and charging below freezing can permanently damage battery cells, making them more sensitive to failure when exposed to vibration and other stresses. - Page 9 ARM BASE, PAD, STRAP ARM BASE (P/N: 173-6509) ARM PAD (P/N: 173-6510) ARM STRAP (P/N: ACC-6500STR-V) ARM BASE The Arm Base mounts to the underside of the P/N: 173-6509 Dragonfly and provides a stable base interface between the Dragonfly and the Made of durable and flexible nylon.
- Page 10 INSTALLING THE ARM PAD Two “tabs” on Three “tabs” on the right. the left. Secure the silicone Arm Pad to the Arm Base by slightly bending and overlapping the ends around the left and right edges of the Arm Base.
- Page 11 INSTALLING THE ARM STRAP Orient the strap so that the logo is facing up as shown. Feed the strap through the back slot of the Base from the outside. Feed the strap through the front slot of the Base, from the inside. Loop back and fasten the strap onto itself, at the desired length to control the tightness on the arm.
- Page 12 INSTALLING THE DRAGONFLY TO THE BASE Line up the tabs on the base with the Unlock the device lock. slots on the Dragonfly. Line up the FRONT tabs first. Line up the tabs and slide the base towards the lock position to engage with the Dragonfly. Re-engage the device lock.
- Page 13 WEARING THE BASE Because arms vary greatly in size and shape, we recommend that you determine the ideal position on your arm where it (a) feels comfortable and (b) feels secure. Wearing the Base nearer to the elbow instead of the wrist may improve the balance of the device but may not be the most secure.
- Page 14 POWER BUTTON / STATUS LED STATE / ACTION INDICATION / BEHAVIOR The LED is off. Device not plugged in. Press and hold for 2 seconds while the Device turns on. device is off. Momentary press while the device is on. Turns sleep mode ON or OFF. Android “Turn Off”...
-
Page 15: Software Utilities
SOFTWARE UTILITIES AML Device Manager is optional device management software written specifically for AML mobile computers and kiosks. It gives IT Administrators the ability to remotely create device configurations for rapid deployment, update firmware and settings and view device performance. It also allows complete remote control of the device for support issues and features two-way messaging and a “find my device”... -
Page 16: Barcode Scanning
BARCODE SCANNING WSC-1600 Wearable Bluetooth Scanner Versatile 2D imaging barcode scanner scans any barcode in any orientation. Scan distances vary depending on the type and size of barcode, but generally fall into the 2-20 inch range. Weighs 1.52 ounces (43g) with the battery. Typical battery life is 8 hours depending on rate of scanning.
