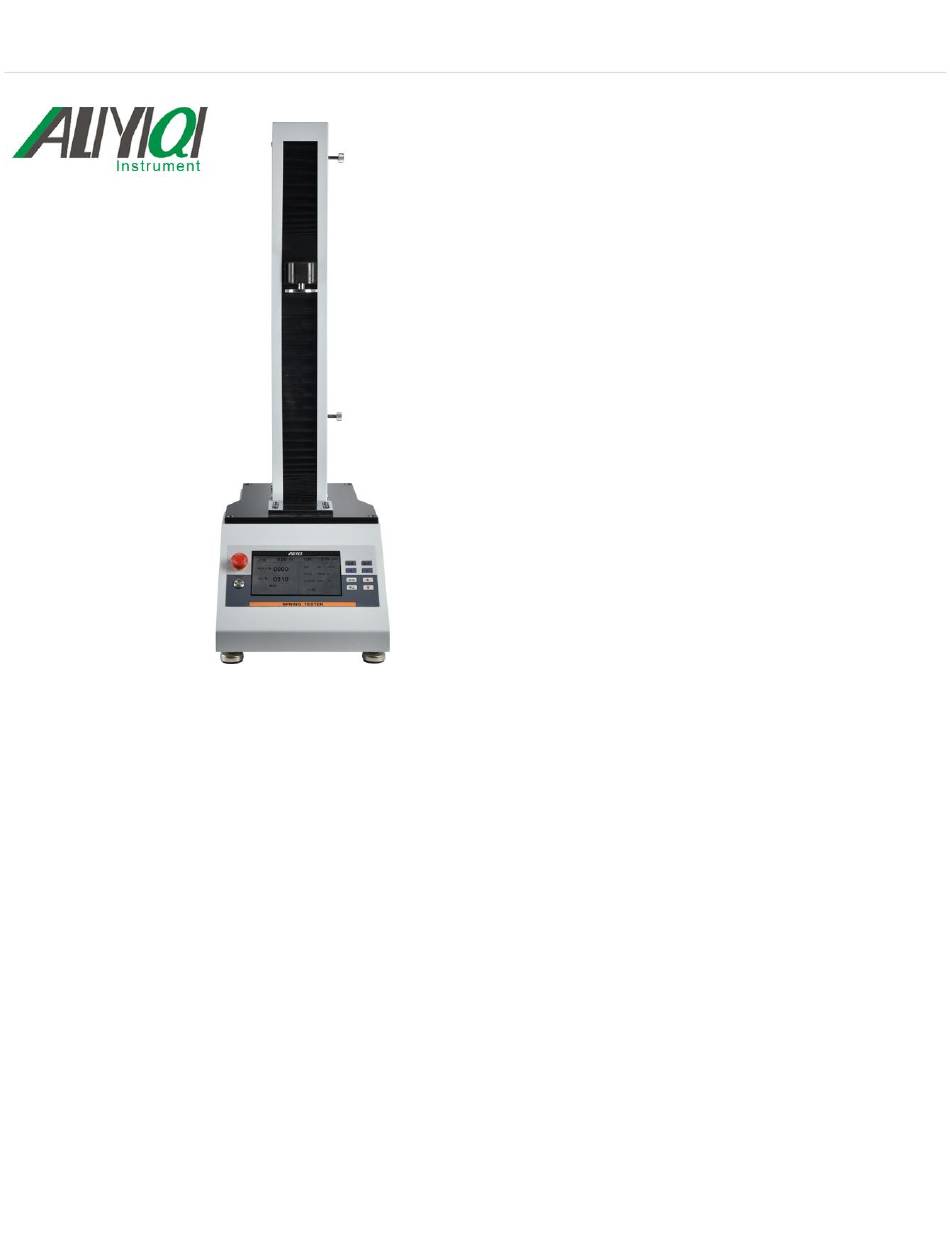

AEL-A integrated electric single column testing
AEL-A integrated testing machine
I. Overview
1.1Main purpose and scope of application
AEL-AThe integrated testing machine is an integrated testing machine dedicated to testing
tension or compression. Replace traditional electric (manual) test machine+The test method of
digital display table enhances the accuracy of test and the convenience of operation. It is
suitable for the testing of push-pull load, insertion force, destruction test of rubber and plastic,
light industrial textile, building doors and windows, composite materials, wire and cable, auto
parts, power machinery, scientific research institutions and other industries.
1.2Features
1.2.17Inch large screen LCD display;
1.2.2Real-time force value and displacement display;
1.2.3Two measurement modes: real-time/Peak
Advertisement
Related Manuals for Aliyiqi AEL-A-2
Summary of Contents for Aliyiqi AEL-A-2
- Page 1 AEL-A integrated electric single column testing AEL-A integrated testing machine I. Overview 1.1Main purpose and scope of application AEL-AThe integrated testing machine is an integrated testing machine dedicated to testing tension or compression. Replace traditional electric (manual) test machine+The test method of digital display table enhances the accuracy of test and the convenience of operation.
- Page 2 1.2.4Two working modes: automatic/Manual 1.2.5Man-machine Chinese dialogue is intuitive and clear; 1.2.6There is a continuous increase/Speed reduction function; 1.2.7With emergency stop function. Second, product model specifications AEL- AEL- AEL- AEL- AEL- AEL- AEL- AEL- AEL- AEL- AEL-A- AEL-A- Type number A-10 A-20 A-30...
- Page 3 3.2Key Description...
- Page 4 3.2.1Emergency stop button: When an emergency occurs, the user can press the emergency stop button to cut off the power and stop the instrument; if you want to restart, you need to rotate the emergency stop button to the right and then press the power button to start. 3.2.2Power button: on/Shut down button.
- Page 5 3.2.10▼(down)Key: Run down. Click this button, the active block will move down one\"Single step distance \"; long press this key4After releasing in seconds, the active block will run down until it touches the lower limit screw; in the system setting interface, this key can be used to set the value.
- Page 6 Model specifications Measurement interface...
- Page 7 4.1.2Measurement interface ①Measured force value display. ② Record the number of round-trip running of the real-time test. ③ Preset the total number of automatic tests. ④Measurement mode: Press \"Settings \" to switch between real-time peak values. ⑤automatic/Manual mode. ⑥ Displacement value display. ⑦...
- Page 8 a, Total count: preset value,systemThe default value is1，Can be set1 ~ 9999In the range. For example: the user performs continuous testing on a product, and the number of tests is set to505Press the\"\" Auto\"\" button in the measurement interface to proceed505Test; instrument running505Automatically stop after the second time, the total count is only for the automatic mode;...
- Page 9 completed, press \"Stop \" key to switch to \"Save \" option, then press \"Setting \" key to save the setting value, press \"Back \" key to exit the system setting. f.Calibration: Sensor calibration. The specific operation method is as follows: f-1.After the instrument is turned on, long press the\"Settings\"...
- Page 10 ⑼, press \"Auto \" to tick the box on the screen. ⑽ 、 Adjust the appropriate speed as needed:dog\"◀\"(left)键，speed 值减 1,Press\"◀\"(left) 键，speed 值 Continuous reduction 小,until1For the mostdog\"▶\"(To the right)键，speedValue plus1,Press\"▶\"(To the right)键，speed 值 continuousIncrease until300For the most ⑾ 、 backPress\"▲ \" or \"▼ \" key to start measurementtest. 4.2.2ManualDynamic modeHow to use: ⑴、Make sure the power cord is connected；...
- Page 11 5.2 Please clean the instrument with a soft cloth, immerse the cloth in the water soaked with detergent, wring it out and remove the dust and dirt. Note: Do not use volatile chemicals to clean the instrument (such as volatile agent, thinner, alcohol, etc.).
