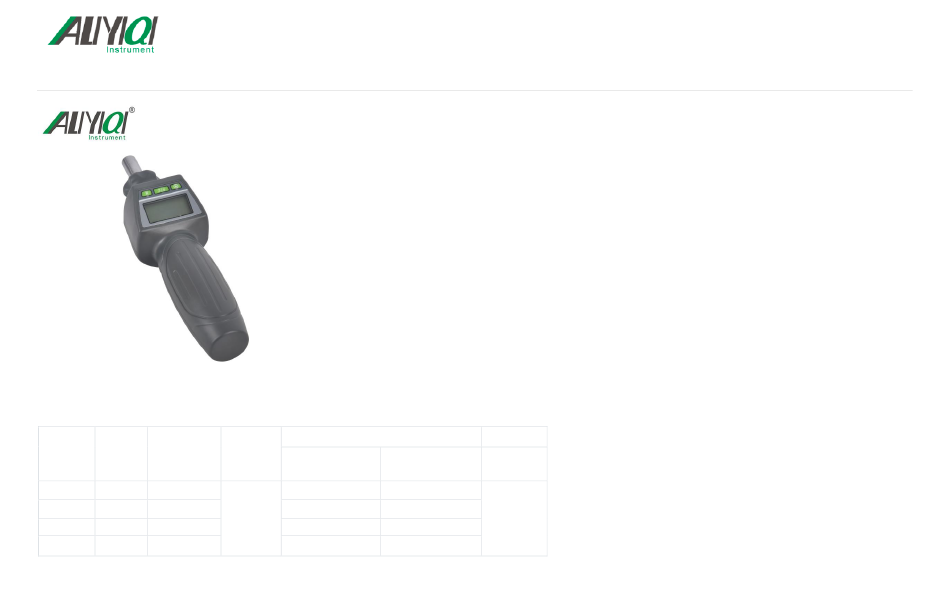

Ans digital torque driver
3.Specification model
Range
Index value
model
(N.m)
(N.m)
ANS-0.5
0.05-0.5
0.0001
ANS-2
0.2-2
0.001
ANS-4
0.4-4
0.001
ANS-8
0.8-8
0.001
1,Overview
1.Main purpose and scope of application
ANS digital torque screwdriver is a product designed for assembly and torque testing of small torque fasteners in the precision
manufacturing industry An essential tool for precise torque connection. Compared with mechanical preset screwdrivers, torque
control is more accurate.
2.Features
1The torque-angle value can be read directly.
2Automatic shutdown after 5 minutes of inactivity, saving power.
3Operate clockwise and counterclockwise.
4The three working modes of real-time, peak and preset values can be switched freely.
5Choice of four torque units (N.m, lbf.ft, lbf.in, kgf.cm).
6In peak modeData storage function.
7Torque direction mark and battery level display.
Nominal size of inner six parties
Accuracy
inch
1/4
1/4
± 2%
1/4
1/4
net weight
mm
(kg)
6.35
6.35
0.4
6.35
6.35
