1. Features:

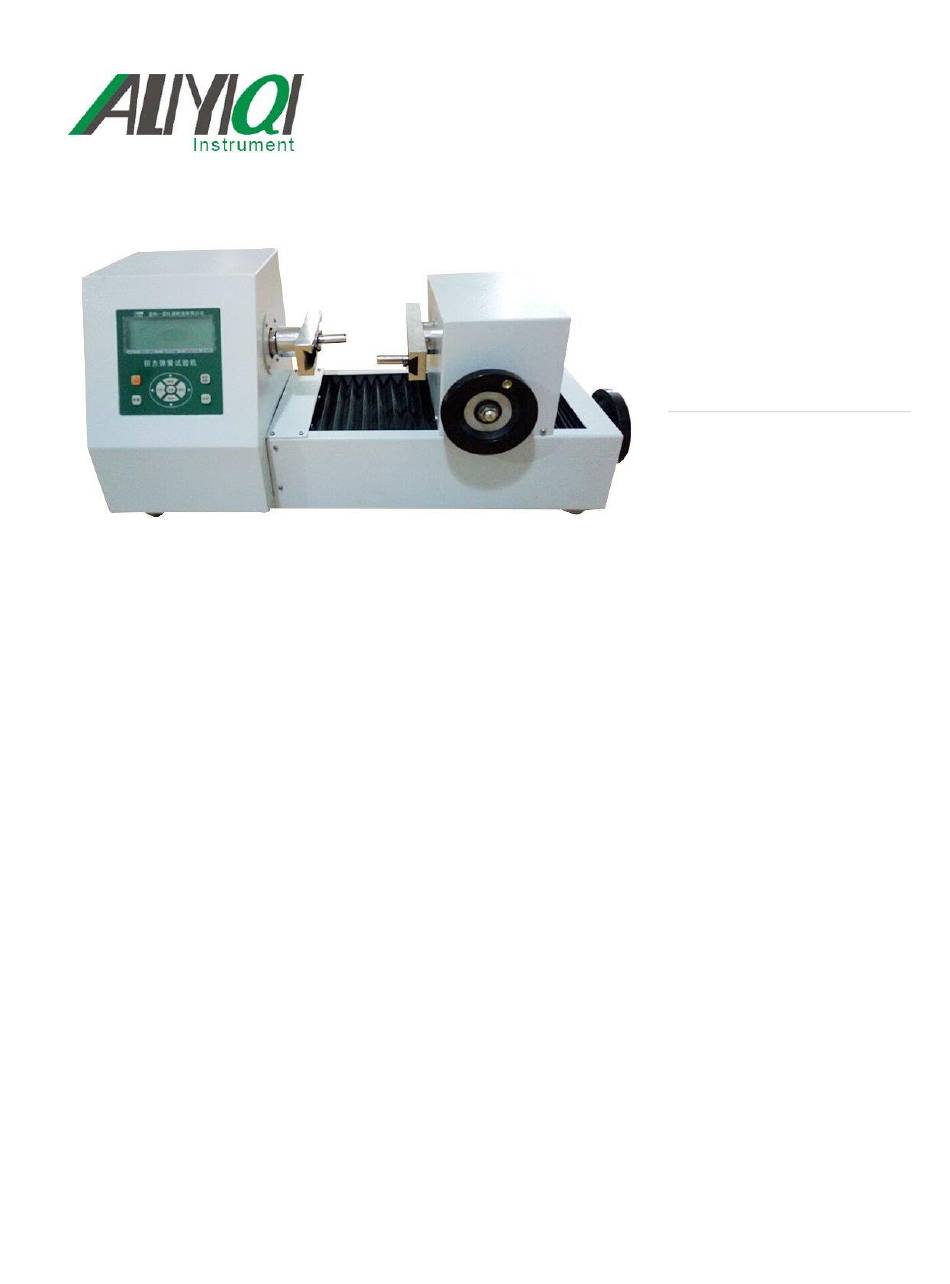

ADT horizontal torsion spring testing machine is an intelligent multifunctional
measuring instrument designed and manufactured for testing and testing various
torsion springs. It can be used for torque testing of various shapes of torsion
springs, scroll springs and other elastic torsion pieces. It has the characteristics
of simple operation, high precision, full function and convenient portability. It is
widely used in various electrical, light industry, machinery manufacturing,
scientific research Institutions and other industries.
2. Main features:
1. High precision, high resolution, fast sampling speed, large screen display.
2. The upper and lower limits can be set, with sound and light alarm function
3. Three parameters display (torque value, rotation angle, spring stiffness).
4. The three units N · m, kgf · cm and Ibf · in are mutually converted.
5. The three modes of real-time, peak and auto-peak can be switched at will.
ADT series
horizontal
torsion
spring
testing
machine
Advertisement
Related Manuals for Aliyiqi ADT Series
Summary of Contents for Aliyiqi ADT Series
- Page 1 ADT series horizontal torsion spring testing machine 1. Features: ADT horizontal torsion spring testing machine is an intelligent multifunctional measuring instrument designed and manufactured for testing and testing various torsion springs. It can be used for torque testing of various shapes of torsion springs, scroll springs and other elastic torsion pieces.
- Page 2 6. Peak hold, automatic release function, free setting of release time. 7. Automatic shutdown function without operation, time can be set freely. 8. Large storage capacity, can save 99 sets of test data. 9. Automatic shutdown function without operation, time can be set freely. 10.
- Page 3 0.5 ～ 50 (N﹒m) ADT-50 50 N﹒ m 0.001 N﹒ m 2. Angle resolution: 0.1 ° 3. Range of measurement angle: 0 ~ ± 9999.9 ° 4. Rotation diameter of test piece: φ100mm 5. Length of test piece: 150mm 6. Loading method: manual 7.
- Page 4 1. LCD screen 2. Setting parameter name column 3. Function buttons 4. Special test head 5. USB interface 6. Power socket Five: display panel...
- Page 5 Six: Key description 1. ON / OFF key: can be used to turn on and off. 2. Angle reset key: during real-time measurement, press this key to correct the angle zero point. 3. View key: This key can be used to view the stored measurement data during the measurement interface.
- Page 6 4. Clear key: during real-time measurement, press this key to correct the torque zero point. During peak and auto peak, press this key to clear the peak and return to zero; when viewing the interface, press this key to clear the current stored measurement value, long press this key to clear all stored measurement values.
- Page 7 2. The main user interface display 3. User setting interface Press the setting key once, the display is as follows: Use the up or down key to select the setting item. When the user's setting item is selected, press the setting key to enter the parameter setting interface. 4.
- Page 8 Description of setting parameters: (Take the maximum torque value as an example) Use the up and down keys to shift and modify the data. At this time, press the set key to confirm and save the set data, (if you press the zero key to return, the data will not be modified).
- Page 9 appears, the machine enters the automatic protection state, you must press the reset button or restart, if you can not measure, please long press the set button, enter the password: up, down, press the set button Restore the factory settings interface, choose to restore the factory settings, press the setting button to restore (if you can not restore, please contact the manufacturer).
- Page 10 1. Under normal circumstances, plug in the power cord, turn on the power switch, and after the display is stable, if the display data is not zero, please press the\"\" Zero\"\" key to clear and clear the torque value. 2. According to the test needs, press the moment unit conversion key to select the required unit.
- Page 11 14. Precautions, maintenance and repair 1. Do not overload the torque test, be sure to test the torque within the test range of the torque tester, otherwise the instrument will be damaged and more likely to be dangerous. 2. Do not tap the LCD screen to place objects on the LCD screen. 3.
- Page 12 machine or repair the company at other repair points. The company does not guarantee it). If the card is contacted with the original place of purchase, the company will get a free warranty for one year. 14. The warranty terms of this product are only applicable to the ANH series products sold in the Chinese market.
