USER`S MA NUAL
SAGI TA P RE ST IG E
VACUUM TUBE PRE AMPLI FIER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAGITA PRESTIGE and is the answer not in the manual?

Questions and answers

Summary of Contents for Fezz Audio SAGITA PRESTIGE

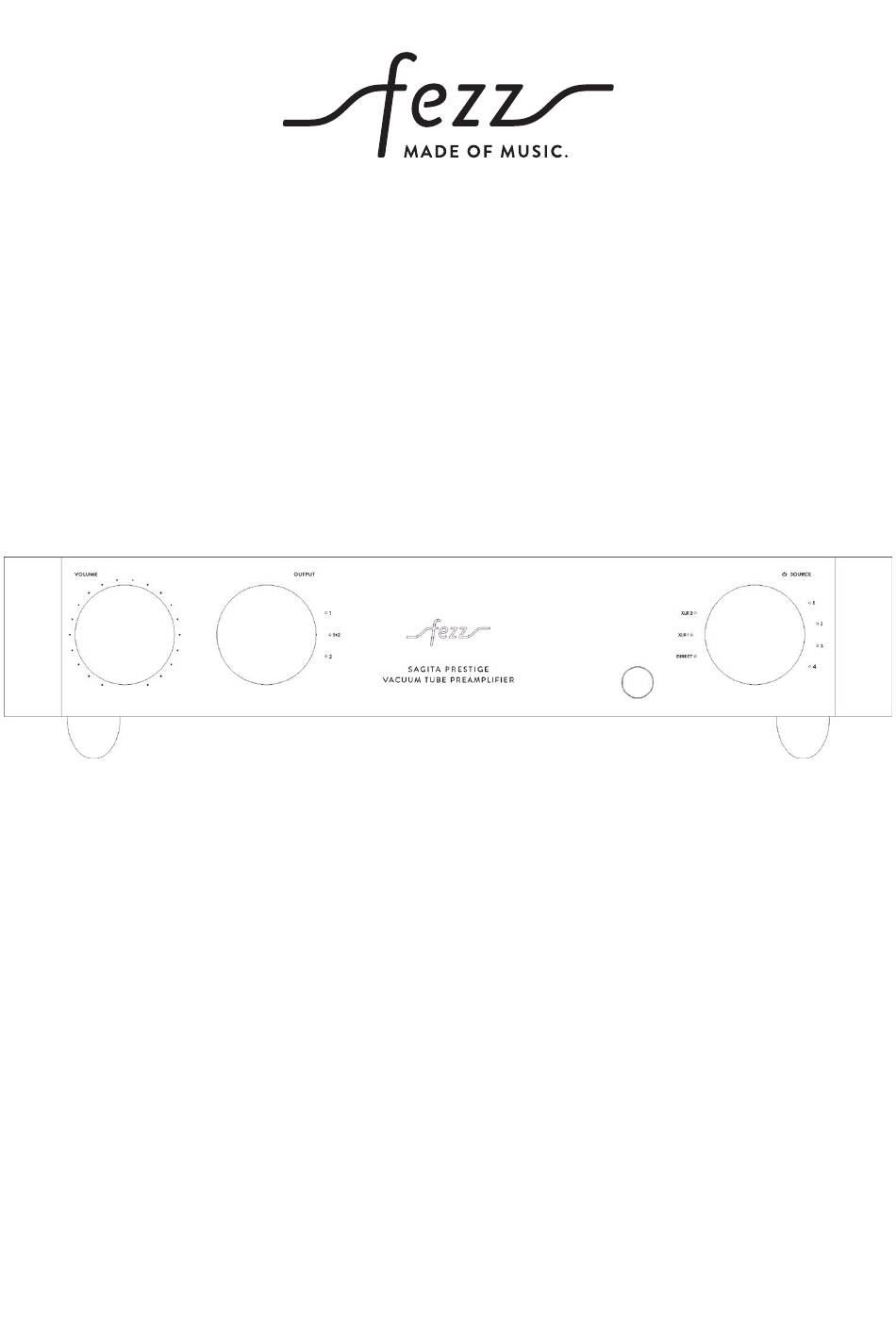

  • Page 1 USER`S MA NUAL SAGI TA P RE ST IG E VACUUM TUBE PRE AMPLI FIER...
  • Page 2: Table Of Contents

    Getting started – 5 TROUBLE-SHOOTING GUIDE – 5 TECHNIC AL DATA Type: Vacuum tube line preamplifier Model: Sagita Prestige, Line: Evolution Unbalanced inputs: 4x RCA + 1 direct Balanced inputs: 2x XLR Unbalanced outputs: 2x RCA Balanced outputs: 2x XLR Harmonic distortion THD: <0,005%...
  • Page 3: Safety Tips

    U N PACK I N G Please kindly check if the packaging of the Sagita Prestige preamplifier has not been damaged during transit. If you find any damages, please immediately contact your dealer. Remove the preamplifier and accessories from the packaging. Make sure that the content is not damaged.
  • Page 4: Interconnections

    Balanced XLR outputs Balanced XLR inputs The figures above shows the rear panel view of the Fezz Sagita Prestige line preamplifier. To avoid electrostatic shock to the components of the preamplifier, please touch a grounded conductive surface before making any connections .Any and all connections must be made whilst the device is disconnected from the mains power supply.
  • Page 5: Getting Started

    Fezz Sagita Prestige is equipped with two 12AU7/ECC82 vacuum tubes. You can easily change the tube by gently pushing and moving sideway plexiglass window at the top of the device. You can move it to the left or right side. Carefully remove the vacuum tube from its socket.
