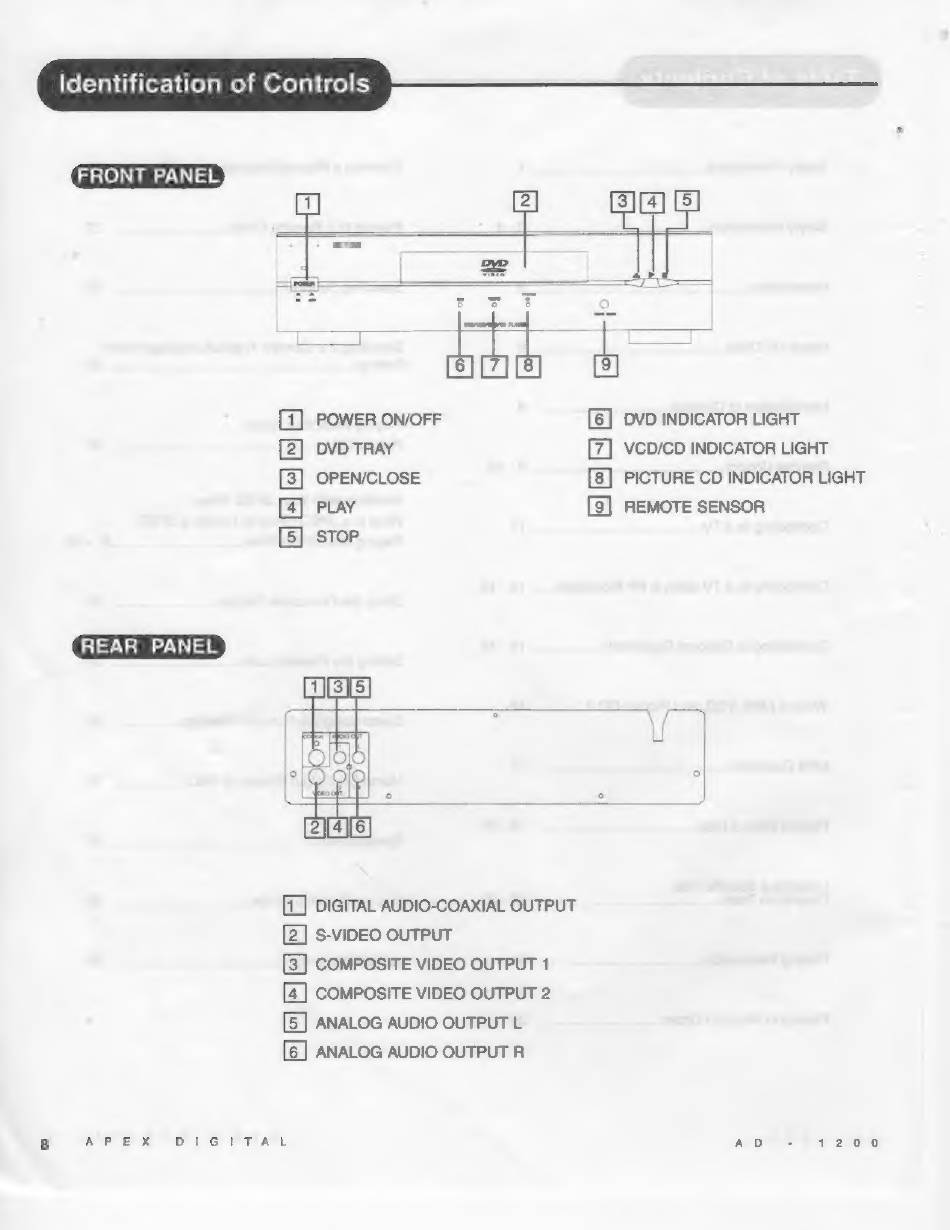

Identification of Controls
8
FRONT PANEL
REAR
PANEL
101200
=H
POWER ON/OFF
DVD TRAY
OPEN/CLOSE
PLAY
STOP
[6] DVD INDICATOR LIGHT
VCD/CD INDICATOR LIGHT
PICTURE CD INDICATOR LIGHT
[9] REMOTE SENSOR
DIGITAL AUDIO-COAXIAL OUTPUT
[2] S-vipEo OUTPUT
[8] COMPOSITE VIDEO OUTPUT 1
[4] COMPOSITE VIDEO OUTPUT 2
[5] ANALOG AUDIO OUTPUT L
[6] ANALOG AUDIO OUTPUT R
Ta
kt
ll hd
al it OS a
ADT
eS Tt a6
