sisel ENDA EFVC Series Quick Start Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the device is damaged by not following
instructions detailed in the manual. The company shall not be responsible for any damage or losses however caused, which may be
experienced as a result of the installation or use of this product.

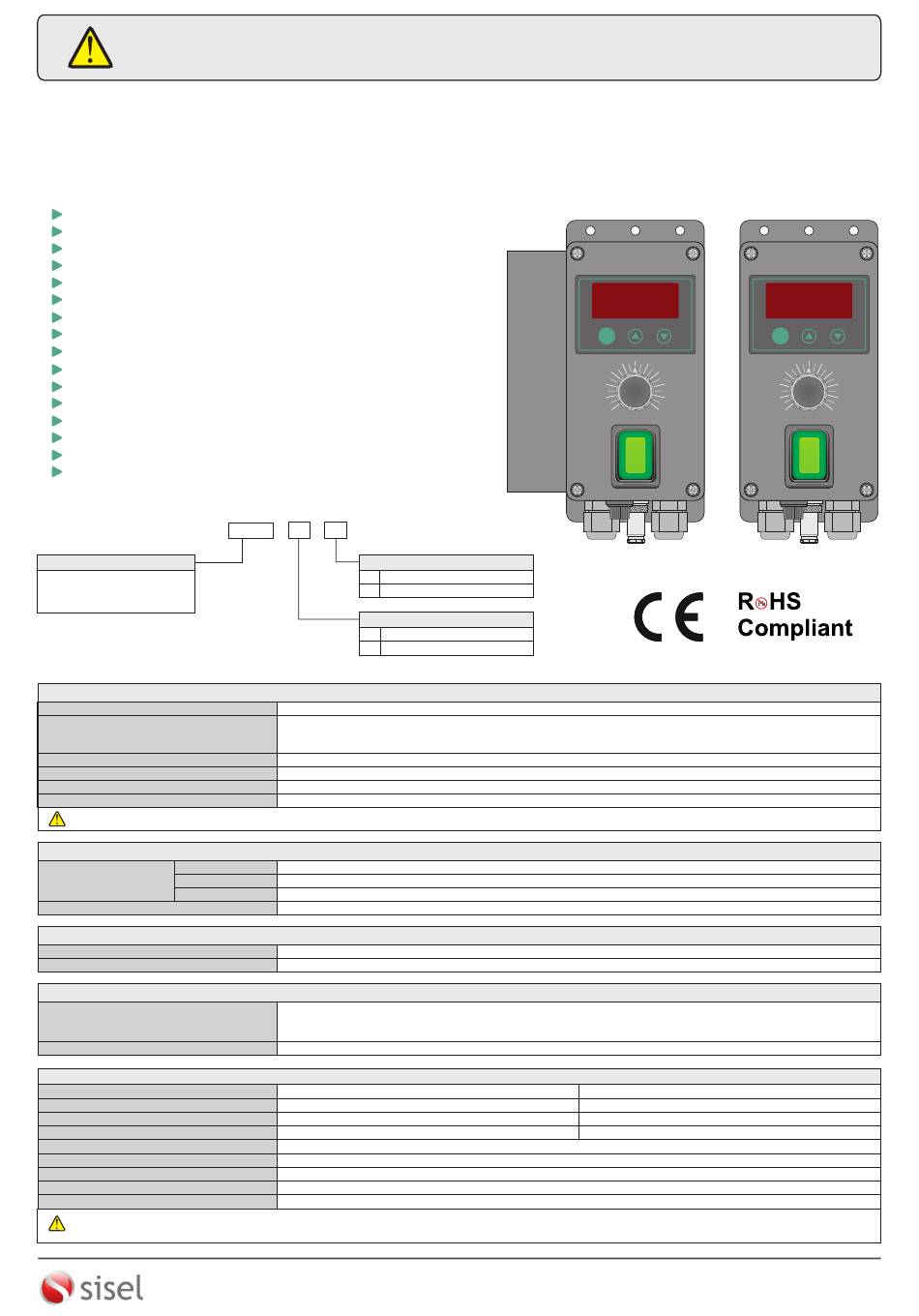

ENDA EFVC SERIES FREQUENCY CONTROLLED
Thank you for choosing ENDA EFVC Series Frequency Controlled Vibration Controller.
Frequency controlled vibration control.
3A AC or 6A AC load current.
Operating with 110V AC / 220V AC mains voltage.
Adjustable vibration frequency from 30Hz to 140Hz.
Adjustable set point with adjustment knob, digital set point or analog input.
Stopping the load output with digital input and/or "OUT OFF/ON" key.
Selectable digital input (for NO/NC contact).
Solenoid valve output controlled by digital input (Optional, 24V DC/250mA).
Power cable with plug.
Connection cables for vibration coil output and solenoid valve output.
Plug-in connection for digital input and analog input.
Ability to assign maximum and minimum value for output.
Internal fuse.
Starting with Soft Start and stopping with Soft Stop.
ON/OFF Power Switch.
CE marked according to European Norms.
ORDER CODE
Product Basic Code
Wall Mounted
Frequency Controlled
Vibration Controller
ENVIRONMENTAL CONDITIONS
Ambient/Storage Temperature
Relative Humidity
Pollution Degree
Overvoltage Category
Height
Protection Class
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or liquids and DO NOT USE the device in similar hazardous locations.
OUTPUTS
Current (Arms)
Vibrasyon Coil Output Voltage (Vrms)
Frequency (Hz)
Selenoid Valve Output
CONTROL
Control Type
Vibration Amplitude Setting
INPUTS
Digital Input
Analog Input
GENEL
Sipariş kodu
Besleme
Ebatlar
Ağırlık
İzolasyon gerilimi
Bağlantı
Ürün standardı EMC/LVD
Montaj şekli
Kutu malzemeleri
Avoid any liquid contact when the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18 Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
VIBRATION CONTROLLER
EFVC - 03 - 24
Selenoid Valve Output
-
N/A
24 24V DC/250mA
Load Current
03 3A AC
06 6A AC
0 ... +50°C / -25 ... +60°C (Must be no icing and no condensation in the environment.)
Relative humidity 80% for temperatures up to -31°C decreasing linearly to 50% relative humidity at +40°C.
(Must be no condensation in the environment).
2
II
Max. 2000m
According to EN60529 : Ip20
3A AC for EFVC-03-xx; 6A AC for EFVC-06-xx
0-110V AC (for mains voltage 110V AC) or 0-220V AC (for mains voltage 220V AC).
It can be adjusted between 30Hz and 140Hz.
24V DC, 250mA (If the digital input is active, the output is active).
Manual vibration control is done.
It can be adjusted by adjusting knob or 0-10V DC analog signal input.
Load output can be stopped with NO/NC contact or NO/NC sensor that can be selected from the program and solenoid
valve output is activated.
It can be used with +12V DC (Maximum 30mA) voltage output on the device or with external 10-30V DC voltage.
0-10V DC
EFVC-03-xx
90-250V AC, 50/60Hz, 1000VA
W80xH175xD90mm.
Approx. 1500g (After packing).
Self extinguishing plastics. (V-0 According to EN 60695-11-10 Standards).
Fax : +90 216 365 74 01
FREQUENCY VIBRATION CONTROLLER
%
SET
SET
% MIN
(Optional)
2500 Vrms 1 minute between input and output terminals.
With plug cable, cable and plug connector.
TS EN 61326-1: 2013 / TS EN 61010-1: 2012
Wall mounted.
1 / 4
ENDA ENDA
EFVC
FREQUENCY VIBRATION CONTROLLER
50
%
SET
SET
OUT
OFF/ON
% MAX % MIN
I
O
EFVC-06-xx
90-250V AC, 50/60Hz, 2000VA
W115xH175xD160mm.
Approx. 2500g (After packing).
ENDA
EFVC-EN-01-240220
EFVC
50
OUT
OFF/ON
% MAX
I
O
TM
