sisel ENDA ET1413R Quick Start Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the
device is damaged by not following instructions detailed in the manual. The company shall not be
responsible for any damage or losses however caused, which may be experienced as a result of the
installation or use of this product.

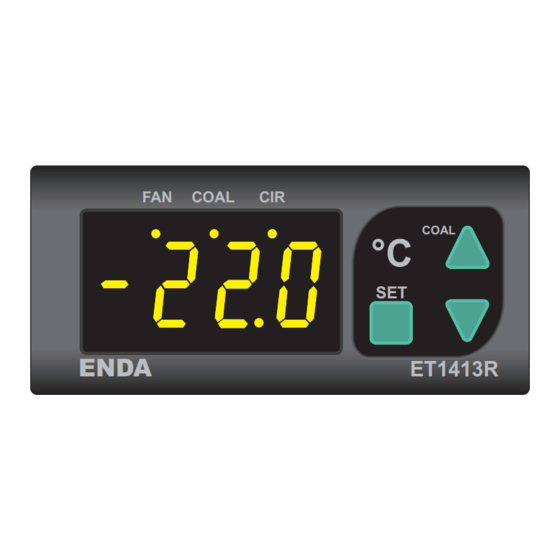

ENDA ET1413R RADIATOR CONTROLLER
Thank you for choosing ENDA ET1413R Radiator Controller.
35 x 77mm sized.
On-Off control.
CIRCULATION, COAL and FAN control outputs.
Upper and Lower setpoint value limits can be adjusted.
Coal output can be set by depending on temperature
duration or manually.
Upper and Lower alarm limits can be configured to
dependent on set value.
CE marked according to the European Norms.
Order Code : ET1413R-NTC -
1 - Supply Voltage
230........230V AC
24 ........24V AC/DC
12 ........12V AC/DC
Connection Diagram
ENDA ET1413R is intended for installation in control panels. Make sure that the device is used only
for intended purpose. The electrical connections must be carried out by a qualified staff and must be
according to the relevant locally applicable regulations. During an installation, all of the cables that
are connected to the device must be free of electrical power. The device must be protected against
inadmissible humidity, vibrations, severe soiling and make sure that the operation temperature is
not exceeded. The cables should not be close to the power cables or components.
ENDA ENDA
INDUSTRIAL ELECTRONICS
ET1413R-NTC-230VAC ET1413R-NTC-24
DIGITAL THERMOSTAT DIGITAL THERMOSTAT
SN: XXXXXXXXX SN: XXXXXXXXX
1 2 3 4 5 6 1 2
7 8 9 10 11 12
Equipment is protected throughout by
DOUBLE INSULATION
NOTE:
Fuse
F 100 mA
SUPPLY:
Switch
250V AC
7
Line
184-253V AC
50/60Hz 4VA
8
Neutral
Fuse should
be connected
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18 Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
FAN COAL CIR
ENDA
1
ENDA
INDUSTRIAL ELECTRONICS INDUSTRIAL ELECTRONICS
ET1413R-NTC-12
DIGITAL THERMOSTAT
SN: XXXXXXXXX
3 4 5 6 1 2 3 4 5
7 8 9 10 11 12
Holding screw
0.4-0.5Nm.
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC
2) In accordance with the safety regulations, the power
Supply
supply switch shall bring the identification of the
relevant instrument and it should be easily
Cable size: 1,5mm²
accessible by the operator.
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient / Storage Temperature
Relative Humidity
Protection class
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply Voltage
Power Consumption
COAL
Connection
°C
Scale
SET SET
Sensitivity / Accuracy
Time Accuracy
Display
ET1413R
EMC
Safety Requirements
OUTPUTS
Circulation Output Relay
Coal Output Relay
Fan Output Relay
Life Expectancy for Relay
CONTROL
Control Type
Control Algorithm
Hysteresis
HOUSING
Housing Type
Dimensions
Weight
Enclosure Material
While cleaning the device, solvents (thinner, gasoline, acid etc.) or corrosive materials must not be used.
DIMENSIONS
77mm
FAN COAL CIR
ENDA
6
7 8 9 10 11 12
1/2
0 ... +50°C/-25 ... 70°C (without icing)
Relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
According to EN60529; Front panel : IP65
Rear Panel : IP20
Max. 2000m
230V AC +%10 -%20, 50/60Hz ; 12V AC/DC ± %10 or 24V AC/DC ±%10
Max. 4.5VA
2.5mm² screw-terminal connections
0 ... +150.0°C
0.1°C / ±1°C
For Time Unit (±% 1-15sec), For Minute Unit (±% 1-1sec)
4 digits, 12.5mm, 7 segment LED
EN 61326-1: 2013 (Provides performance criterion B for EMC experiments.
The device is intended for use in controlled electromagnetic environments.)
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
NO +NC 250V AC, 8A ( for resistive load ), 1/2hp, 0.37kW 240V AC CosF = 0.4 (
NO 250V AC, 8A (for resistive load), 1/2hp, 0.37kW 240V AC CosF = 0.4 (for inductive load)
NO 250V AC, 8A (for resistive load), 1/2hp, 0.37kW 240V AC CosF = 0.4 (for inductive load)
30.000.000 Switching for no-load operation; 300.000 switching for 8A resistive load at 250VAC.
Single set-point control
On-Off control
Adjustable between 1 ... 20.0 °C.
Suitable for flush -panel mounting
W77xH35xD71mm
Approx. 190g (After packing)
Self extinguishing plastics.
For removing mounting clamps:
COAL
- Push the flush-mounting
°C
clamp in direction 1 as shown
SET SET
in the figure below.Then,pull
out the clamp in direction 2 .
ET1413R
Flush mounting
clamp
Panel Cut-out
71,5mm
1
for inductive load )
Depth
71mm 5mm
2
Flush mounting
Rubber
clamp
Panel
packing
Note:
1) Panel thickness should
be maximum 7mm.
2) If there is no 60mm free
space at the back side of
the device, it would be
difficult to remove it from
the panel.
ENDA TM
ET1413R-EN-01-170404
