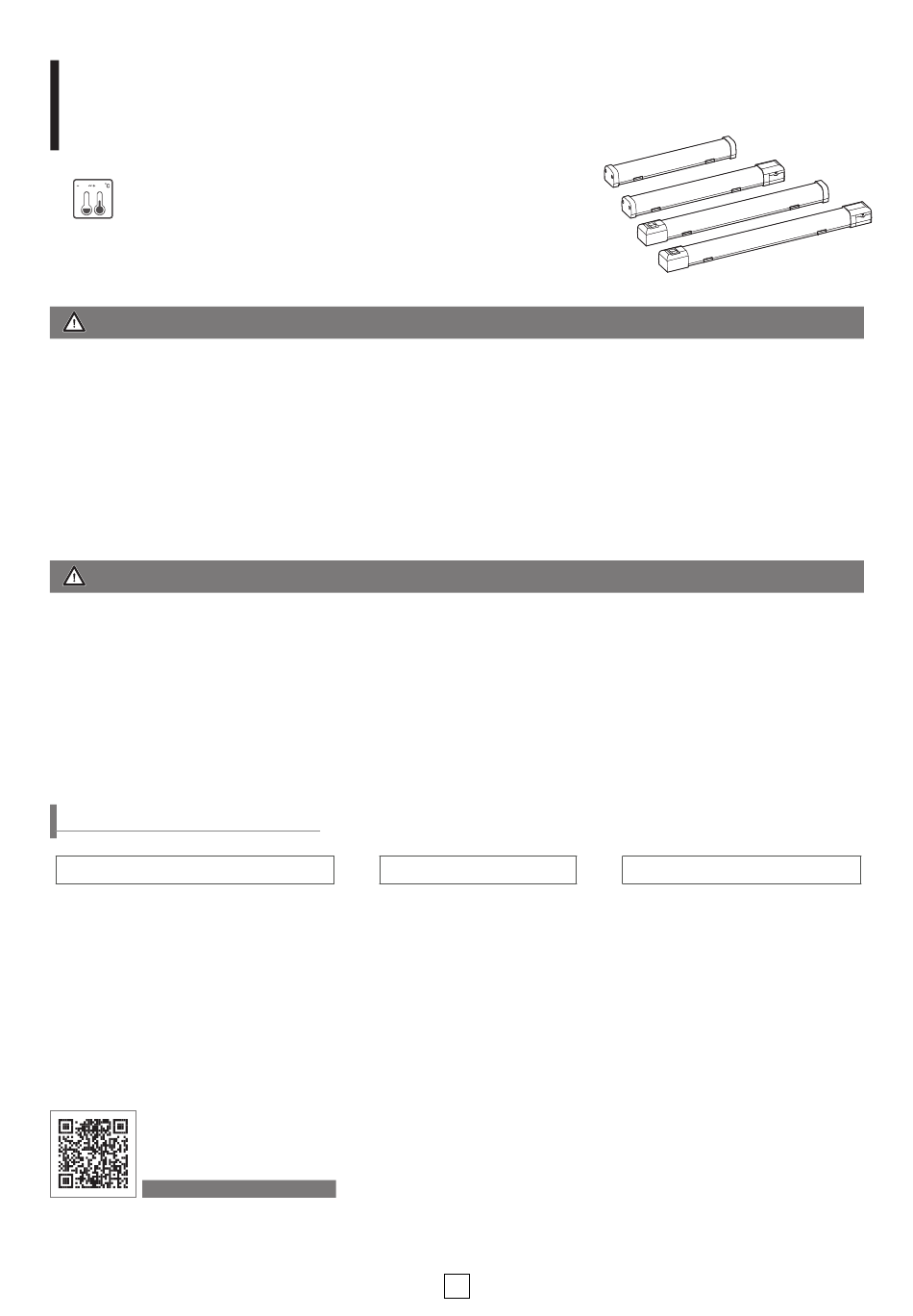

LED Light Bars for Distribution Panel
QEL/ QELT/ QELS/ QELTS
30
50
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
QEL
[Model number]
|
• QEL - External power line
• QELT - Terminal box
• QELS - External power line with power switch
• QELTS - Terminal box with power switch
Please scan the QR code for more
detailed product information.
www.qlight.com
-
200
[Product length]
|
• 200 - 200mm
• 300 - 300mm
• 400 - 400mm
• 500 - 500mm
1
-
24
[Voltage]
|
• 24 - DC24V
• 110 - AC110V
• 220 - AC220V

Advertisement

loading
Need help?

Need help?

Do you have a question about the QEL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Qlight QEL Series

  • Page 1 3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.) 4.
  • Page 2: Product Specifications

    Product Specifications ■ Optics Specifications QEL-200 / QELT-200 QEL-300 / QELT-300 QEL-400 / QELT-400 QEL-500 / QELT-500 Model number QELS-200 / QELTS-200 QELS-300 / QELTS-300 QELS-400 / QELTS-400 QELS-500 / QELTS-500 Directions Translucent Translucent Translucent Translucent Light color (Standard) Cool daylight Color temperature 6,000-7,000K 180lm...
  • Page 3: Wiring Instructions

    Dimensions (Units : mm) QELS QELS ON/OFF SWITCH ON/OFF ON/OFF MODEL MODEL QELS-200 16-170 QELS-200 16-170 QELS-300 16-270 QELS-300 16-270 QELS-400 16-370 QELS-400 16-370 QELS-500 16-470 QELS-500 16-470 2-Ø4.2 Slot hole 2-Ø4.2 Slot hole FITTING HOLES FITTING HOLES QELTS QELTS ON/OFF MODEL ON/OFF...
  • Page 4 Parts definition/ Bracket Adjustment/ Terminal Wiring/ Switch ■ Parts Definition Side cover(ABS) QELT Standard : Lens(PC) Power switch type QELS cover(ABS) Terminal type cover(ABS) QELTS Standard : Bracket(STS201) ■ Bracket Adjustment • Mounting brackets are removable with special sliding structure that allows easy adjustment of distance between the two mounting brackets.
  • Page 5 If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating indicated, it may cause malfunction or damage to the product. • For further information, please visit our website(www.qlight.com).
  • Page 6 Product installation direction ■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product. ㆍBEACON/SIGNALING LIGHT ※ For products with a protection rating of less than IPX4, please install it vertically. Power cord inlet part shall not be facing the sky. ㆍ...
  • Page 7 MEMO...
  • Page 8 Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111) Qlight Overseas Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100 Qlight Public Relations & Marketing Team Office | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017 SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | qlightcn@qlight.com China Factory/ Shanghai Sales Office | #Room 333 Building B, #11, Lane 450, Zhenda Road, Baoshan District, Shanghai, China Tel.
