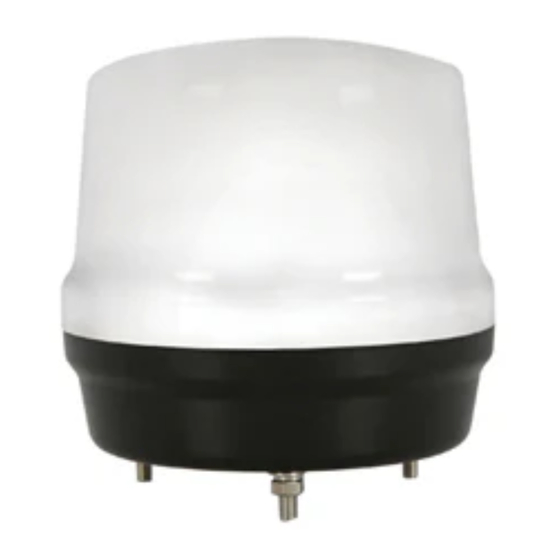

Qlight QMCL Manual

Multiple Color LED Steady Signal Light
QMCL
80dB
30 50
65
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
QMCL80 - BZ
[Model number] [Buzzer]
|
• QMCL60 • (None)
- No buzzer type
• QMCL80
• BZ
• QMCL100
- Built-in buzzer type
• QMCL125
Please scan the QR code for more
detailed product information.
www.qlight.com
- 24
[Voltage]
| |
• 12-DC12V
• 24-DC24V
Product Specifications
Model
Voltage
number
DC12V
QMCL60
DC24V
DC12V
QMCL80
DC24V
DC12V
QMCL100
DC24V
DC12V
QMCL125
DC24V
• Light source/buzzer current
Voltage
Model number
Light source current
QMCL60
Buzzer current
Light source current
QMCL80
Buzzer current
Light source current
QMCL100
Buzzer current
Light source current
QMCL125
Buzzer current
• Protection rating : IP65
• Ambient operating temperature : -30°C to +50°C
1
Current Certificate Weight
170mA
0.12kg
70mA
190mA
0.17kg
135mA
225mA
0.24kg
135mA
235mA
0.31kg
190mA
DC12V DC24V
170mA 70mA
45mA 65mA
190mA 135mA
45mA 65mA
225mA 135mA
45mA 65mA
235mA 190mA
45mA 65mA
Color
7Color
