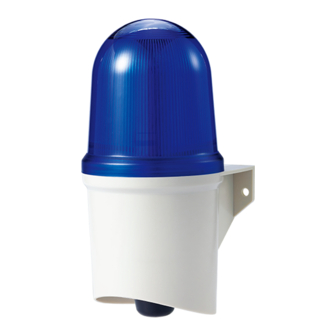

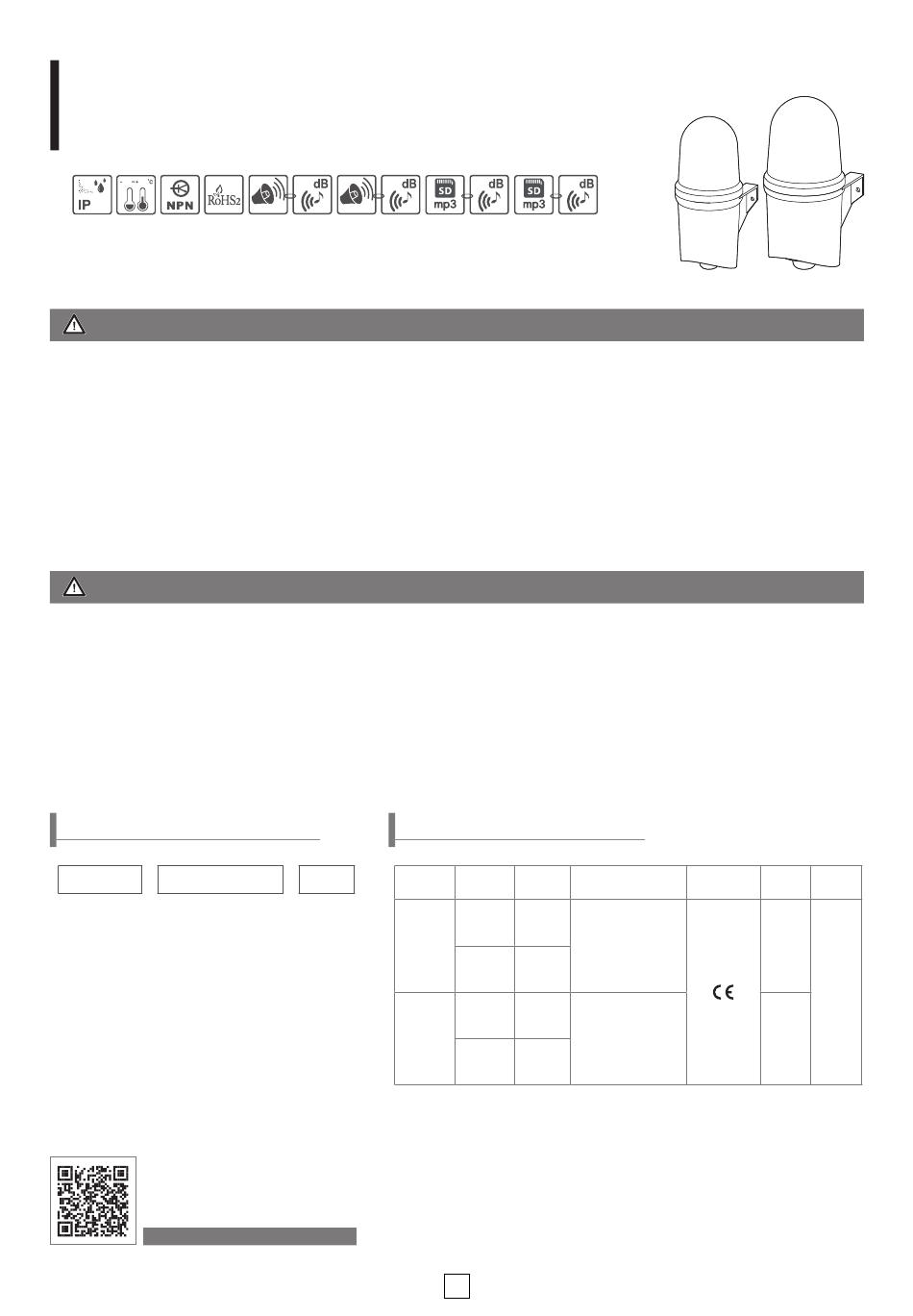

LED Steady/Flash & Electric Horn
QAD100H/ QAD125H
30
50
65
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
QAD100/125 -
110/220
[Model
[Voltage]
number]
|
|
• QAD100H
• 12/24-DC12V-24V
• QAD125H
• 110/220
- AC110V-220V
Please scan the QR code for more
detailed product information.
www.qlight.com
100
115
HORN
HORN
Product Specifications
Model
-
R
number
[Color]
|
QAD100H
R-Red
A-Amber
G-Green
B-Blue
QAD125H
• Protection rating : IP65
• Ambient operating temperature : -30°C to +50°C
95
100
Sound pattern and
Voltage
Current
volume
• Bit Input : 5Ch
DC12V
Max.1A
• Binary Input : 30Ch
-24V
• Built-in sounds
: Max.100dB
AC110V-
Max.
(Based on WA-Ch4)
220V
360mA
• MP3: Max.95dB
• Bit Input: 5Ch
DC12V
Max.
• Binary Input: 30Ch
-24V
2.15A
• Built-in sounds
: Max.115dB
AC110V-
Max.
(Based on WA-Ch4)
220V
360mA
• MP3: Max.100dB
1
Certificates Weight
Color
0.92Kg
R-Red
A-Amber
G-Green
B-Blue
1.12Kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Qlight QAD100H
Summary of Contents for Qlight QAD100H
- Page 1 3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.) 4.
-
Page 2: Wiring Instructions
Power Power Black Black • External power line - UL1015 AWG18(0.75sq) x 2C 400mm External signal line - UL1007 AWG22(0.3sq) 400mm • QAD100H : This product can be wired regardless of polarity. • QAD125H : Black output line is negative(-). - Page 3 • In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-down positions where water can potentially penetrate into the product and impact it’s operation. • For further information, please visit our website (www.qlight.com).
-
Page 4: Play Mode Setting
Top Control Configuration Play Mode Setting • Can select between channel input methods (bit/ binary) and various playback modes. Play mode switch Volume switch • Use a (-) flat screwdriver to rotate one space at a time Sound switch Light function switch (regardless of the direction of rotation.) •... - Page 5 Volume Adjustment Sound Type and Combination Manual ■ Bit Input - Playing Built-in Sound • The volume output of this product is adjustable. • Turn the volume dial clockwise to increase the volume, and • In bit input mode, you can chooses one sound from 1 turn counter clockwise to decrease the volume.
- Page 6 ■ Sound Type by Group ■ Binary Input - Playing Built-in Sound • In binary input mode, you can chooses one sound from 30 Bit input method sound configuration sounds by configuring the 5 channels. • For sound configurations, refer to the table below. Type of sound Group Channel...
- Page 7 Sound Type and Combination ■ Bit Input - Playing External Sound (SD Card) ■ Binary Input - Playing External Sound (SD Card) • User can save sounds(MP3) to the SD card and able to select • Binary input mode chooses one of the 30 sounds by combining 1 sounds from 5 saved sounds.
- Page 8 Operation Method and Setting When using a built-in sound When using an external sound (SD card) Bit input Binary input Bit input Binary input Organized into 6 groups of 5 sound tones for a total of 30 sound Play one of the 5 user-recorded Play one of the 5 user-recorded Play one of 30 built-in sounds tone options.
- Page 9 Product installation direction ■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product. ㆍBEACON/SIGNALING LIGHT ※ For products with a protection rating of less than IPX4, please install it vertically. Power cord inlet part shall not be facing the sky. ㆍ...
- Page 10 MEMO...
- Page 11 MEMO...
- Page 12 Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111) Qlight Overseas Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100 Qlight Public Relations & Marketing Team Office | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017 SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | qlightcn@qlight.com China Factory/ Shanghai Sales Office | #Room 333 Building B, #11, Lane 450, Zhenda Road, Baoshan District, Shanghai, China Tel.
