- Page 1 HOME, SMART MOES HOME Instruction Manual Smart Switch Wi-Fi English...
- Page 2 Bitte scannen Sie den QR-Code, um das deutsche Handbuch, das Installationsvideo und die Funktionseinführung zu erhalten Escanee el código QR para obtener el manual en español, el video de instalación y la introducción de la función Veuillez scanner le code QR pour obtenir le manuel en français, la vidéo d'installation et l'introduction des fonctions Отсканируйте...
-

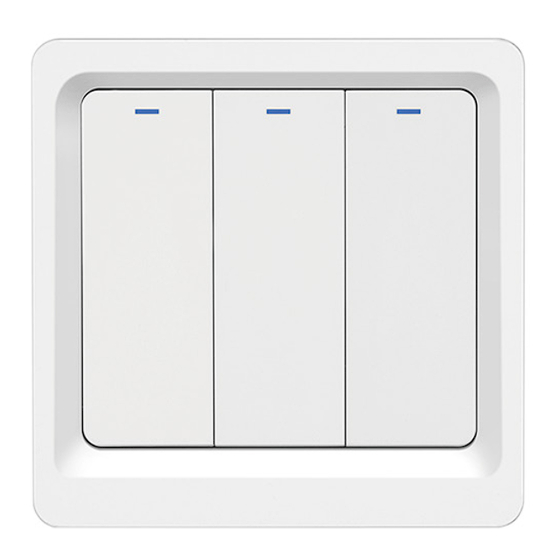

Page 3: Product Description
WiFi to replace traditional switches with a variety of ways to control. Now one new smart feature as multi-control association to other smart switches is added into the MOES App, together with the backlight on/off and relay status. And its scratch resistance is suitable for different decoration styles with its best value. -
Page 4: Installation
Installation Note: Make sure that the power at the circuit breaker is off before wiring. Two versions available and optional:Neutral wire required and no neutral needed in your switch boxes to operate correctly. Please make the correct wiring according to the switch you purchased. - Page 5 Attention: Please disconnect the power supply before installing or removing the device for avoiding irreversible damage on the device from the electric current or some unpredict- able problems such as lamp flashing. Step 2 Remove the old switch English...
- Page 6 Step 3 Remove the switch and pull it away from the wall. Identify Line/Load Wire(Note:The color of your wire may be different from the color shown on the manual.) Verify power is off We recommend you remove the faceplate from the old switch and use an electrical tester to test all wires connected to the switch to ensure there is no voltage in the circuit.
- Page 7 1.Installation Separate the upper and lower parts from the switch by screwdriver Dimension:3.4*3.4*1.7in See The Picture Blow (Noted:Distinguish between each corresponding slot) English...
- Page 8 2.Attention There are two types of wiring below, (2a) Without neutral wire and,(2b)Neutrral wire is required. Prepare to install wiring Attention: Without neutral wire 1-Neutral wire. 2-Live wire. 3-Switch. 4-Capacitor,it must to be connected to L1 and Neutral wire. 5-Lighting,They're between L1, and Neutral wire. L3 L2 L1 L N English...
- Page 9 3.Fix the switch onto wall 3.1 Put the switch lower parts into switch box in the wall 3.2 Mount the two side screws 3.3 Install the upper top case (install from up above) 3.4 Cover the upper top case into switch 3.5 Turn on electricity, and then LED light will be flashed quickly for pairing Indictor Light...
-
Page 10: Preparation For Use
-The switch is into APP pairing Mode Preparation for use ① Download MOES App on App store or scan the QR code MOES App is upgraded as much more compatibility than Tuya Smart/Smart Life App, functional well for scene controlled by Siri, widget and scene recommendations as the fully new customized service. - Page 11 • Enter the Register/Login interface; tap “Register” to create an account by entering your phone number to get verification code and “Set password”. Choose “Log in” if you already have a MOES account. Steps for connecting the APP to the device Method One: 1.Make sure your phone is connected to Wi-Fi and Blue-...
- Page 12 2. Enter Wi-Fi Password and click “Next”, waiting for completing the connection. Add the device successfully, you can edit the name of the device to enter the device page by click “Done” . English...
- Page 13 3. enjoy your smart life with home automation. English...
- Page 14 How to reset/repair Wi-Fi code Press and hold the button for 8s until the indicator flashes. Reset/repair is successful. Enter MOES Skill in Alexa APP 1. Complete product networking configuration in the Complete the device's networking configuration according to the prompts in the App.
- Page 15 SERVICE Thank you for your trust and support to our products, we will provide you with a two-year worry-free after-sales service (freight is not included), please do not alter this warranty service card, to safeguard your legitimate rights and interests. If you need service or have any questions, please consult the distributor or contact us.
-
Page 16: Recycling Information
RECYCLING INFORMATION All products marked with the symbol for separate collection of waste electrical and electronic equipment (WEEE Directive 2012/19 / EU) must be disposed of separately from unsorted municipal waste. To protect your health and the environment, this equipment must be disposed of at designated collection points for electrical and electronic equipment designated by the government or local authorities. -
Page 17: Warranty Card
WARRANTY CARD Product Information Product Name________________________________________ Product Type_________________________________________ Purchase date________________________________________ Warranty Period_______________________________________ Dealer Information_____________________________________ Customer's Name_____________________________________ Customer Phone______________________________________ Customer Address_____________________________________ ______________________________________________________ Maintenance Records Failure date Cause Of Issue Fault Content Principal English... - Page 18 Thank you for your support and purchase at we Moes, we are always here for your complete satisfaction, just feel free to share your great shopping experience with us. If you have any other need,please do not hesitate to contact us first,we will try to meet your demand.
- Page 19 EVATOST CONSULTING LTD Address: Suite 11, First Floor, Moy Road Business Centre, Taffs Well, Cardiff, Wales, CF15 7QR Tel: +44-292-1680945 Email: contact@evatmaster.com AMZLAB GmbH Laubenhof 23, 45326 Essen Made In China Manufacturer: WENZHOU NOVA NEW ENERGY CO.,LTD Address: Power Science and Technology Innovation Center, NO.238, Wei 11 Road, Yueqing Economic Development Zone, Yueqing, Zhejiang, China Tel: +86-577-57186815...
