INSTALLATION & OPERATION MANUAL

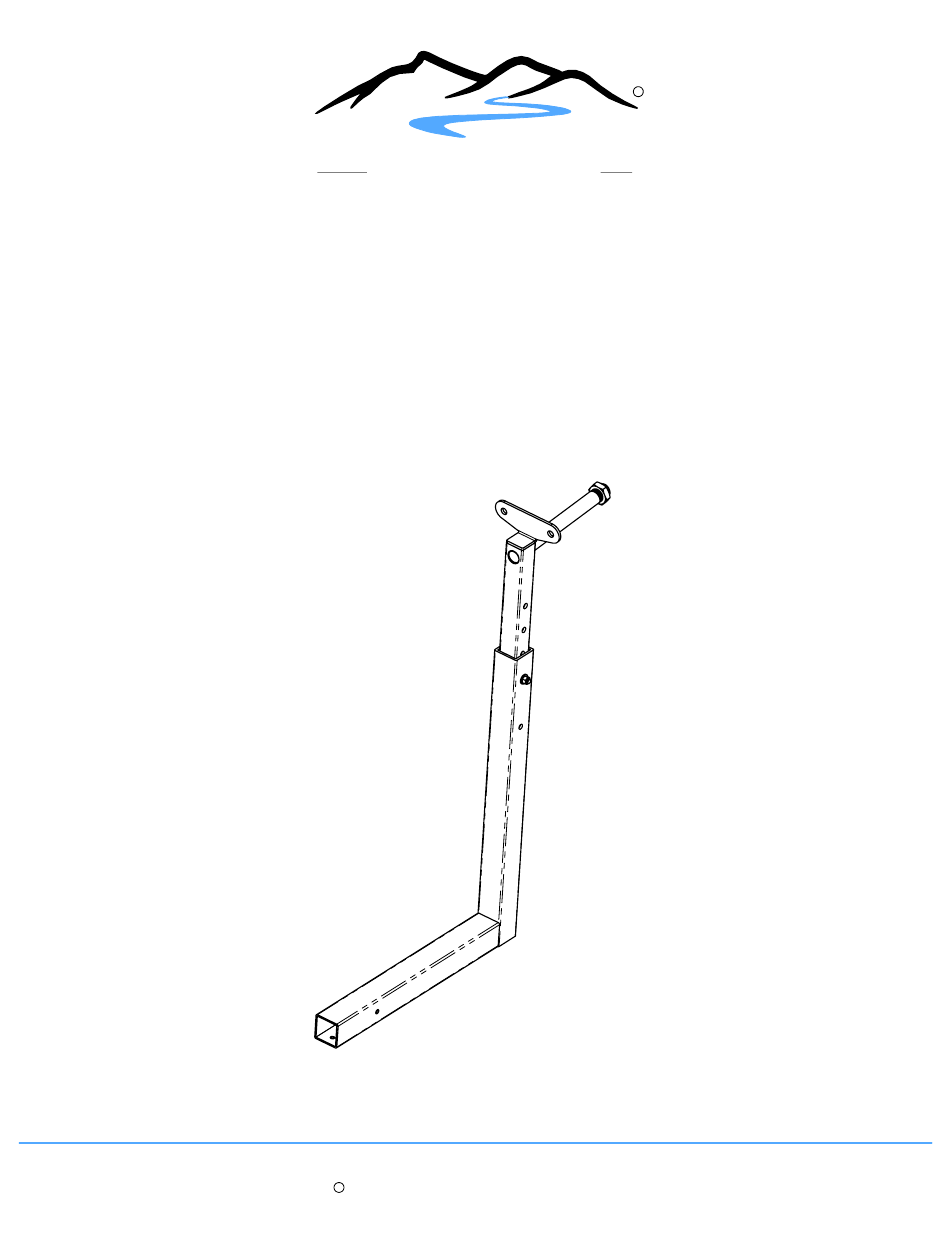

MODEL: ACCESSORY - ADJUSTABLE SEAT POLE - RANGER
CATALOG #: F-AACA
1
9889 GARRYMORE LANE
WWW.AQUACREEK.COM
MISSOULA, MT 59808
UPDATED:
2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED.
C
(406) 549-0769
1 - 4/11/2024
FAX (406) 549-2602
Advertisement
Table of Contents
Related Manuals for Aqua Creek Products F-AACA
Summary of Contents for Aqua Creek Products F-AACA
- Page 1 Leaders in Recreation, Fitness and Ability INSTALLATION & OPERATION MANUAL MODEL: ACCESSORY - ADJUSTABLE SEAT POLE - RANGER CATALOG #: F-AACA 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602...
- Page 2 SAFETY INFORMATION................3 ADA REQUIREMENTS FOR POOL LIFTS (US ONLY)......4 PRODUCT COMPONENTS................. 5 PRODUCT ASSEMBLY................6-9 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602...
-
Page 3: Safety Information
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in transit, Aqua Creek Products LLC must be notified within three (3) days of receipt. Proper installation cannot be over-stressed, as an improper installation will void Aqua Creek's warranty and may affect the safety of the user. -
Page 4: Ada Requirements For Pool Lifts (Us Only)
LOADING SETBACK 36" *Compliance with ADA is the responsibility of the pool owner. Visit www.ada.gov for complete guidelines. 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602... -
Page 5: Product Components
WF - 5/16" FLAT WASHER INV00742 NN - 5/16"-18 NYLOCK NUT TOOLS REQUIRED SOCKETS/WRENCHES ALLEN KEYS/TORX 1 1/2" 3/16" 1/2" 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602... -
Page 6: Product Assembly
UNDO BOLT AND REMOVE SEAT ASSEMBLY, SAVE BOLT, WASHER, AND NUT FOR ATTACHING SEAT TO THE NEW ADJUSTABLE SEAT CRADLE. 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602... - Page 7 CRADLE. SAVE CONTROL ARM NUT, BOLT, WASHER, AND BUSHING TO USE WHEN INSTALLING THE ADJUSTABLE SEAT POLE. 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602...
- Page 8 WF - 5/16" FLAT WASHER PART NO. INV01176 SEAT CRADLE INV01984 BS - 3/8"X2"X5/16"-18 SHOULDER BOLT PART NO. INV00464 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602...
- Page 9 THE 5/16 HEX HEAD BOLT AS SHOWN FROM WHEN THE SEAT WAS REMOVED FROM THE FIXED HEIGHT SEAT POLE 9889 GARRYMORE LANE WWW.AQUACREEK.COM MISSOULA, MT 59808 UPDATED: 2024 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED. (406) 549-0769 1 - 4/11/2024 FAX (406) 549-2602...
