GILKON FP7v100 Specification & Installation Manual

Mobile stand for flat panel display with motorized raise and lower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

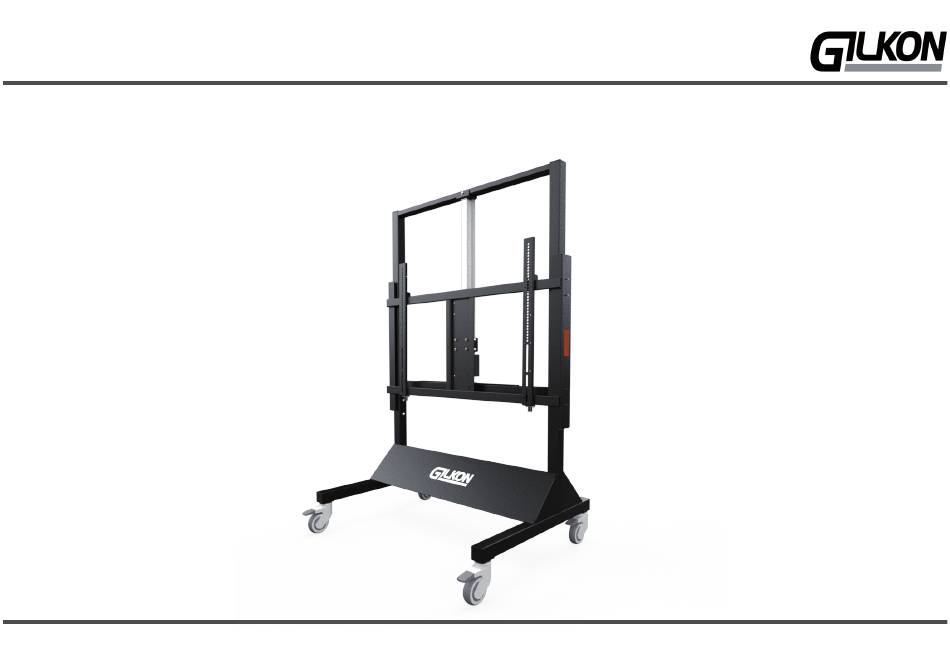

SPECIFICATION & INSTALLATION GUIDE
GILKON FP7v100
Mobile Stand for Flat Panel Display
with Motorized Raise and Lower
Copyright ©2022 Wilson & Gilkes. All rights reserved.
www.gilkon.com.au
email: sales@gilkon.com.au
phone: (02) 99140900
fax: (02) 99140901
All specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP7v100 and is the answer not in the manual?

Questions and answers

Related Manuals for GILKON FP7v100

Summary of Contents for GILKON FP7v100

  • Page 1 SPECIFICATION & INSTALLATION GUIDE GILKON FP7v100 Mobile Stand for Flat Panel Display with Motorized Raise and Lower www.gilkon.com.au email: sales@gilkon.com.au phone: (02) 99140900 fax: (02) 99140901 Copyright ©2022 Wilson & Gilkes. All rights reserved. All specifications are subject to change without notice.

  • Page 2: Table Of Contents

    3. PACKAGE CONTENTS Page 4 4. SPECIFICATIONS Page 5-6 5. INSTALLATION: Attach feet & gussets Page 7 6. INSTALLATION: Stand GILKON FP7v100 upright Page 8 7. INSTALLATION: Attaching the display Page 9 8. INSTALLATION: Attach laptop shelf (optional) Page 10 9.

  • Page 3: Disclaimer

    1. DISCLAIMER Wilson & Gilkes Pty Ltd, intends to make this manual accurate and complete. However, Wilson & Gilkes Pty Ltd makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.

  • Page 4: Warnings & Safety Instructions

    ● Installation & assembly work must be carried out by properly licenced technicians or qualified trades people. ● Incorrect installation can cause the GILKON FP7v100 unit to fall and cause injury . This company assumes no responsibility for injuries or damages that may occur due to improper installation and handling.

  • Page 5: Package Contents

    NOTE: Packaged contents may look different to content shown in diagrams Electric Mobile Feet Gusset & Front Panel (Qty: 2) (Qty: 3) GILKON FP7v100 Frame (Qty: 1) Assembly Fastener kit Allen Key M8 X 25 BHC Screw & SpringWashers (Qty: 8) (Qty: 1) M8 X 70 BHC Screw &...

  • Page 6: Specifications

    4. SPECIFICATIONS Mobile Stand for Screen Mounting Compatibility: Flat Panel Displays Supports mounting hole pattern from 75mm to 800mm wide and from 75mm to 600mm high. with Motorized Raise and Lower Model: 8IMFP7v100 MIN 75 TO MAX 800 1050.0 Copyright ©2022 Wilson & Gilkes. All rights reserved. All specifications are subject to change without notice.
  • Page 7 Gilkon FP7Av100 by Wilson & Gilkes conforms to AS 6065:2003 for stability and mechanical hazards. Component/ Feature Specifications Description Reference page WEIGHT FP7v100 Approx 44kg GILKON FP7v100 assembled MAXIMUM 120kg WEIGHT CAPACITY MOVEMENT Total Lift 650mm Page 5 DIMENSIONS Height (raised)

  • Page 8: Installation: Attach Feet & Gussets

    5. INSTALLATION: Attach feet & gussets (1) Lift GILKON FP7v100 out of the carton. WARNING! If required, use the carton as support for the attaching the feet. ● UNIT EXCEEDS 15KG. TWO MEN OPERATION REQUIRED. GILKON FP7v100 (2) Attached the feet, gussets & front panel to the uprights...

  • Page 9: Installation: Stand Gilkon Fp7V100 Upright

    6. INSTALLATION: Stand GILKON FP7v100 upright (1) Once the feet are attached, tilt the GILKON FP7v100 assembly forward to stand on the castors on the feet. WARNING! (2) Lock the castors in place to stop the ● Apply brakes to castors GILKON FP7v100 from moving.

  • Page 10: Installation: Attaching The Display

    7. INSTALLATION: Attaching the display (1) To mount the display onto the mobile stand, attach hook arms to the mounting points at the back of the display. The lock of the hook arms should be at the lower side of the display screen.

  • Page 11: Installation: Attach Laptop Shelf (Optional)

    8. INSTALLATION: Attach laptop shelf (OPTIONAL) (1) Attach the shelf to the mobile stand with 2 M8 x 16 button head screws. Firmly tighten screws with supplied Allen key. Copyright ©2022 Wilson & Gilkes. All rights reserved. All specifications are subject to change without notice.

  • Page 12: Instruction: Raising & Lowering

    9. INSTRUCTION: Raising & lowering (1) To raise or lower the screen, use the remote switch teathered to the stand. Copyright ©2022 Wilson & Gilkes. All rights reserved. All specifications are subject to change without notice.
