SPECIFICATION & INSTALLATION GUIDE
8IMFP7-WM
Wall Mount Unit for Flat Panel Display
with Motorized Raise and Lower
Copyright ©2017 Wilson & Gilkes. All rights reserved.
www.gilkon.com.au
email: sales@gilkon.com.au
phone: (02) 99140900
fax: (02) 99140901
All specifications are subject to change without notice.
Advertisement
Table of Contents
Related Manuals for GILKON 8IMFP7-WM
Summary of Contents for GILKON 8IMFP7-WM

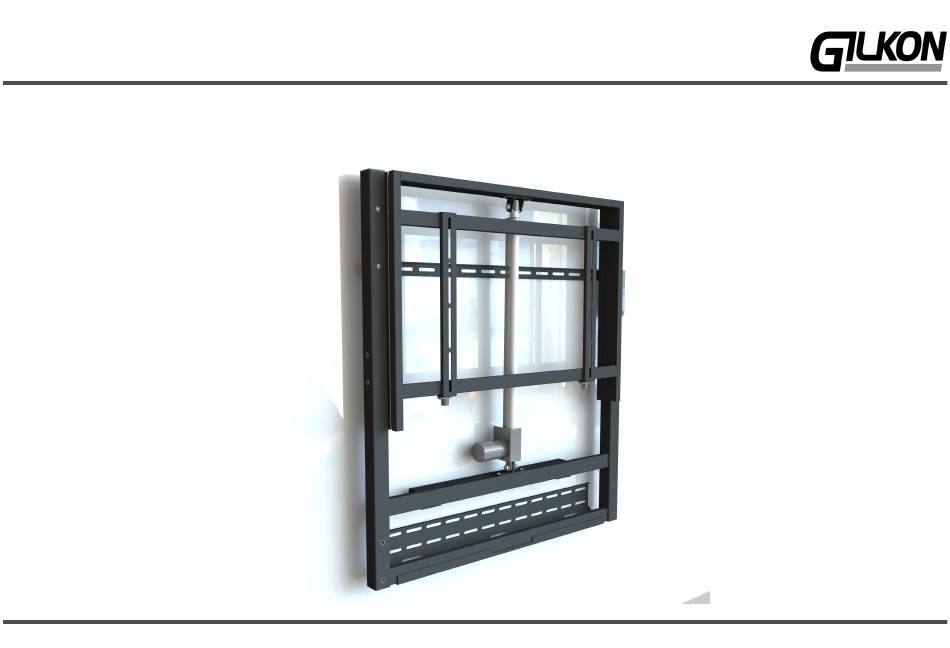

- Page 1 SPECIFICATION & INSTALLATION GUIDE 8IMFP7-WM Wall Mount Unit for Flat Panel Display with Motorized Raise and Lower www.gilkon.com.au email: sales@gilkon.com.au phone: (02) 99140900 fax: (02) 99140901 Copyright ©2017 Wilson & Gilkes. All rights reserved. All specifications are subject to change without notice.
-
Page 2: Table Of Contents
CONTENTS 1. DISCLAIMER Page 2 2. WARNINGS & SAFETY INSTRUCTIONS Page 3 3. PACKAGE CONTENTS Page 4 4. SPECIFICATIONS Page 5-6 5. INSTALLATION: Attach wall and floor brackets Page 7 6. INSTALLATION: Attaching the display Page 8 7. INSTRUCTION: Raising & lowering Page 9 Copyright ©2017 Wilson &... -
Page 3: Disclaimer
1. DISCLAIMER Wilson & Gilkes Pty Ltd, intends to make this manual accurate and complete. However, Wilson & Gilkes Pty Ltd makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 4: Warnings & Safety Instructions
● When the 8IMFP7-WM is not in use, switch off the power source. ● Make sure the fully raised height of the 8IMFP7-WM does not exceed the height of the building/room the 8IMFP7-WM will be used in. Copyright ©2017 Wilson & Gilkes. All rights reserved. -
Page 5: Package Contents
OPTIONAL Front Mounted Computer Kit Camera Bracket (Qty: 1) Lower Wall Bracket Upper Wall Bracket Mount Bracket Electric Wall Mount (Qty: 1) (Qty: 1) (Qty: 1) 8IMFP7-WM Frame (Qty: 1) Keyboard & Mouse Pockets (Qty: 1) ALLEN KEY Fastener kit Fastener kit (Qty: 1) -
Page 6: Specifications
Supports mounting hole pattern from 75mm to 800mm wide and from 75mm to 400mm high. Wall Mount for Flat Panel Displays with Motorized Raise and Lower Model: 8IMFP7-WM Copyright ©2017 Wilson & Gilkes. All rights reserved. All specifications are subject to change without notice. - Page 7 WEIGHT CAPACITY MOVEMENT Total Lift 645mm Page 5 DIMENSIONS Height (raised) 1805mm Height of 8IMFP7-WM Wall Mount when fully raised Page 5 Height (closed) 1160mm Height of 8IMFP7-WM Wall Mount when fully closed Page 5 Depth 137mm Depth of 8IMFP7-WM Wall Mount...
-
Page 8: Installation: Attach Wall And Floor Brackets
5. INSTALLATION: Attach Upper & Lower Brackets WARNING! ● 8IMFP7-WM EXCEEDS 15KG. TWO MEN OPERATION REQUIRED. NOTE: Wall fixing fasteners /anchors are not supplied by Wilson & Gilkes, 3. Rest frame in 1. Attach upper 2. Attach lower lower bracket,... -
Page 9: Installation: Attaching The Display
6. INSTALLATION: Attaching the display (1) To mount the display onto the wall mount, attach hook arms to the mounting points at the back of the display. The lock of the hook arms should be at the lower side of the display screen. -
Page 10: Instruction: Raising & Lowering
Raising & Lowering (1) To raise or lower the screen, use the switch mounted on the side of the 8IMFP7-WM. wall mount. Note: the switch is tethered to the unit with a cable and can be utilised in front of the screen.
