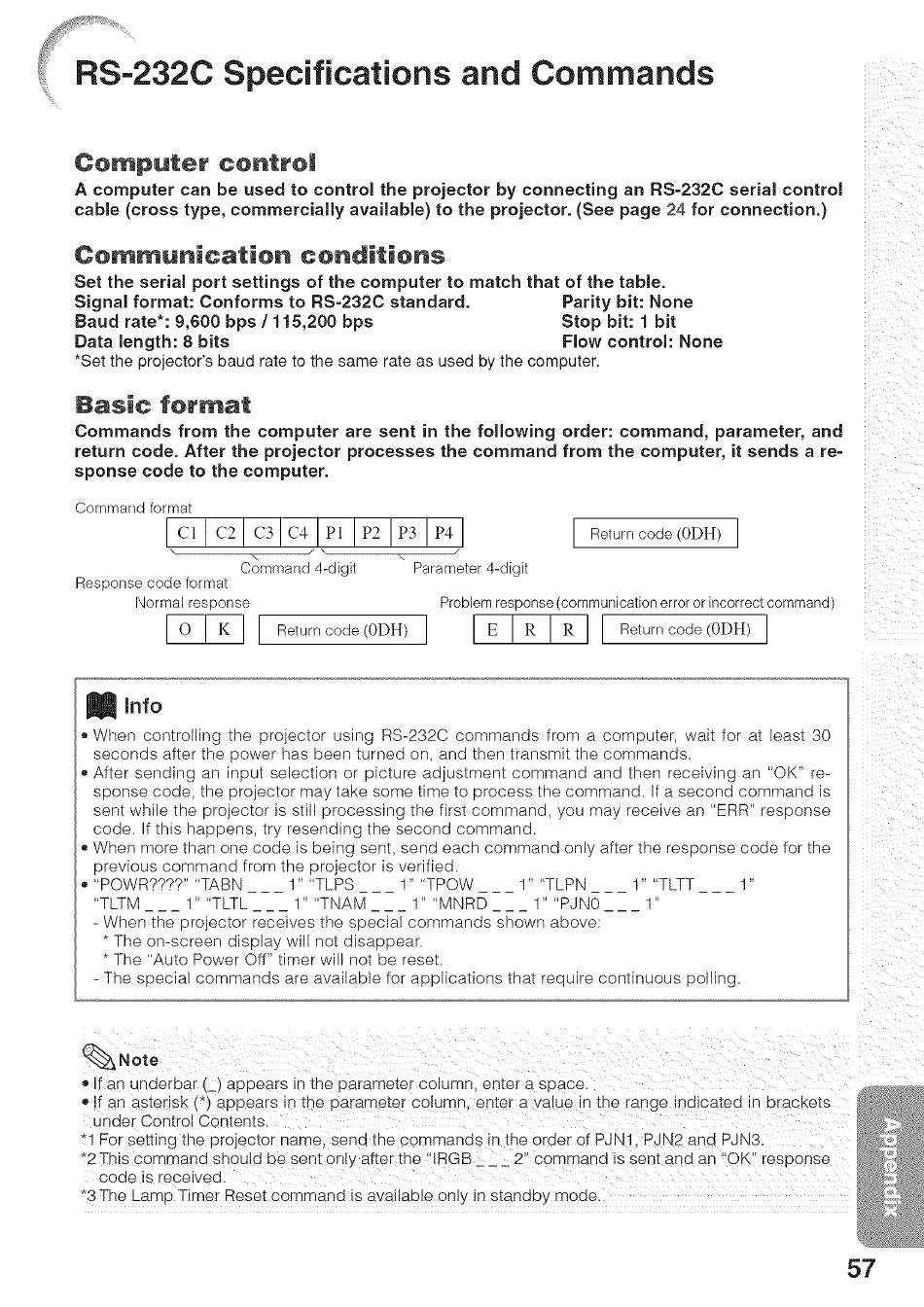

RS-232C Specifications and Commands
Computer centro!
A computer can be used to control the projector by connecting an RS-232C serial control
came (cross type, commercially available) to the projector. (See page 24 for connection.)
Communication conditions
Set the serial port settings of the computer to match that of the table.
Signal format: Conforms to RS-232C standard. Parity bit: None
Baud rate*: 9,600 bps / 115,200 bps Stop bit: 1 bit
Data length: 8 bits Flow control: None
*Set the projector's baud rate to the same rate as used by the computer.
Basic format
Commands from the computer are sent in the following order: command, parameter, and
return code. After the projector processes the command from the computer, it sends a re-
sponse code to the computer.
i i i_ii
Command format
I c, Ic2!cslc4 lp, lp2lpslp4J
[ Return code (0DH)]
"., \
Command 4-digit Parameter 4-digit
Response code format
NormN response Problem response (communication error or incorrect command)
_ I Returneode(0DH)I I E ! R ! R I[ Returneode(0DH)I
Info
When controlling the projector using RS-232C commands from a computer, wait for at least 30
seconds after the power has been turned on, and then transmit the commands.
After sending an input selection or picture adjustment command and then receiving an "OK" re-
sponse code, the projector may take some time to process the command. If a second command is
sent while the projector is still processing the first command, you may receive an "ERR" response
code. If this happens, try resending the second command.
When more than one code is being sent, send each command only after the response code for the
previous command from the projector is verified.
"POWR????" "TABN ___ 1" "TLPS ___ I" "TPOW ___ 1" "TLPN ___ I" "TLTT ___ 1"
"TLTM ___ 1" "TLTL ___ 1" "TNAM ___ 1" "MNRD ___ 1" "PJN0 ___ 1"
- When the projector receives the special commands shown above
* The on-screen display will not disappear.
* The "Auto Power Off" timer will not be reset.
- The special commands are available for applications that require continuous polling.
Note
_' If an underbar (_) apoears in me Darame[er COlumn. enter a space.
o If an asterisk (*) aeDears n me Darame[er columq, enter a value in [no range Indicated In bracKe[s
under Control Conten[s.
"1 For semng the projector name send the commands in the order of PJNq. PJN2 and PJN3.
2 This co _qmand snouid De sent only after the "IRGB __ 2" commar u s se l[ aria an "OK" response
coae s receweo.
*3 The Ls mp Timer Reset command is available on y in standby moae
