elmeasure iACCL M Series User Manual

Elmeasure India Private Limited
Head office & Manufacturing Unit 1
Plot N0.: 47-P, KIADB Hardware Park,
Huvinayakanahalli, Bengaluru - 562 149,
Karnataka INDIA.
Manufacturing Unit 2
Goutham Garden, No.4, Veerapandi,
Coimbatore - 641019 Tamil Nadu, INDIA
www.elmeasure.com
True RMS measurement.
User configurable (Editable) password
Simultaneous sampling of Volts & Amps.
RS485 optional.
Inverse Current tripping.
Over current, Under and Over Voltage protection when it is running
on DG.
Programmable DG start time which avoids overloading the DG.
Intelligent controller trips exactly on the programmed settings.
Resetting the Trip by key press or through communication.
Programmable EB healthy selection (All phases/1Phase).
MCB reset (OFF & ON) option available for overload in DG for
M300 & M330 models.
EB - Power
Trip
To view the
parameters
Downwards and
Reset during trip
To decrement value and
scroll the parameter
to enter Setup mode Display shows 0000).
Enter Password (default is 1000).
Blinking digit indicates edi ng of that digit.
If Password is correct, edi ng is possible.
Enters into Setup mode and meter display's VA Selec on.
to view the setup parameter.
Press Up to view the parameter op on /value.
Again press Up key to select and edit parameter value /op on
Toll Free: 1800 120 5048
support@elmeasure.com
PG/ACCL6K5/V4/0221
Value Indication
XXX
DG - Power
Communication
Kilo
Minus
To view the
parameters
Upwards.
To select, edit & save the
value / parameter
iACCL
M300
M330
M100C
www.elmeasure.com
to decrement values / change the available op ons.
to save the op on / value of the parameter.
to edit next parameter ll end of last parameter
and display screen will prompt
Press Down to change the op ons y(save) or n(not save).
Press Up to save.
Programming Parameter Default
Method of VA
Selection
Baud rate
Parity
Device ID
Password
Energy selection
Starting Amps
Starting voltage
DG low Voltage
DG high Voltage
DG over Amps
EB over Amps *
DG delay time
Cycle 1 set time
Cycle 2 set time
Cycle 3 set time
Cycle 4 set time
No.of trip Cycle
DG Output
selection **
EB healthy
selection #
Save
* Not applicable for M100C without RS485 option.
** Not applicable for M100C & M330.
# Not Applicable for M100C.
For M330 DG selection factory set only.
Current rating:
M100C: 40A/50A/63A
M300: 40A/63A/80A/100A/125A
M330: 40A
3.4 Enabling and Disabling Auto Scrolling
Press Down key con nuously for 5 secs or un l display
shows Display starts to scroll parameters every 5 sec.
To disable Autoscrolling, Press any key, display shows
in a par cular page.
User Manual

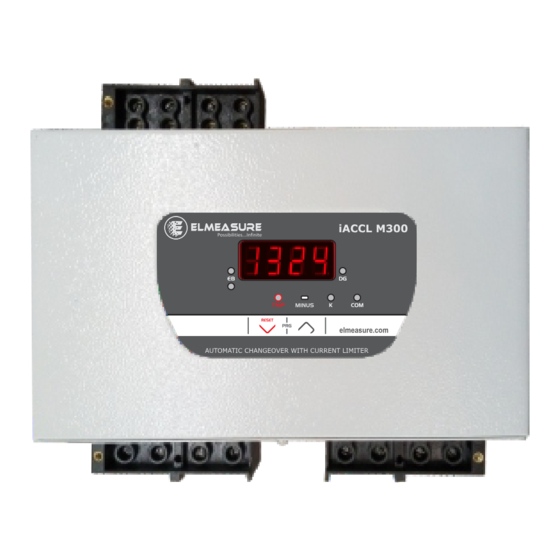

iACCL M 300
with display reads blinking.
Option/Range
Option : Arithmetic , Vector
harmonics, Vector
Option : 2400, 4800, 9600,
19200, 38400
Option : EVEn / odd / no
Range : 1-247
Range: 1000 -9999.
Option : Wh,VAh
Range: 0.02 to 10% of FS
Range: 10 to 40V
Range: 165 to 210V
Range: 240 to 270V
Range : 0 to 40A/50A/63A/80A/
100A/125A
Range : 0.500 to 40A/50A/63A
/80A/100A/125A
Range : 1 to 30 sec
Range : 6 to 150sec
Range : 6 to 150sec
Range : 6 to 150sec
Range : 6 to 150sec
Range : 5 to 10
Options : 3phase, 1phase
Options : ALL.P(all phase) ,
Any 1phase
Yes/No
and remains
