elmeasure SL VDC User Manual

Elmeasure India Private Limited
Head office & Manufacturing Unit 1
Plot N0.: 47-P, KIADB Hardware Park,
Huvinayakanahalli, Bengaluru - 562 149,
Karnataka INDIA.
Manufacturing Unit 2
Goutham Garden, No.4, Veerapandi,
Coimbatore - 641019 Tamil Nadu, INDIA
T: 0422 2697200. TF: 0422 2695200
E: contactcbe@elmeasure.com
www.elmeasure.com
1. FEATURES
Universal Auxiliary supply (24-300V AC/DC).
Parameters VDC & ADC.
1 row 4 digit display.
User configurable (Editable) password.
Auto-scaling of kilo decimal point.

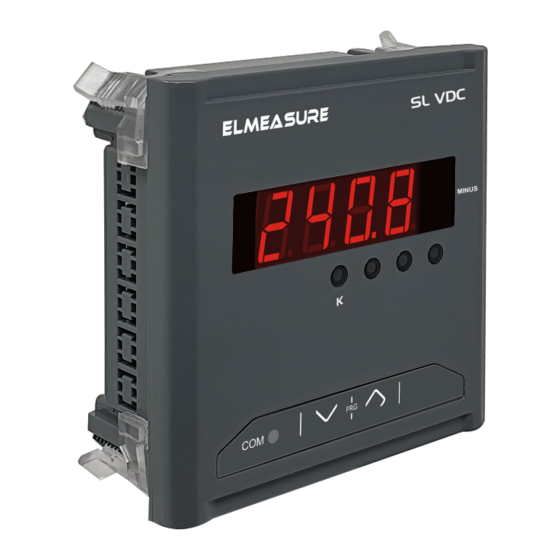

2. KEY & DISPLAY INDICATION
SL VDC | SL ADC
PRG
COM
µA VDC
µA ADC
3. PROGRAMMING MODE
3.1 Programming Keys
To select / Edit &
save Value
3.2 Setup Procedure
Press Up + Down to enter setup mode .
Enter Password (default 1000) blinking of digit indicates Edit is possible.
Press Down to decrement value from 9 to 1.
Press Up to move to the next digit till 4th digit .
If Password is correct, editing is possible.
Press Down to view and press
Press Down to decrement values or to select from available options.
Press Up to save the value / parameter.
Press Down to edit next parameter till end of last parameter &
display screen will prompt
Press Down to change to
Press Up to save.
Toll Free: 1800 120 5048
support@elmeasure.com
PG/SLDC/V1/0820
MINUS
Value Indication
Kilo
To view the parameters Upwards.
To view the parameters Downwards.
Communication
To view the parameters Upwards.
To view the parameters Downwards.
Minus
Kilo
To view the
parameters Upwards.
To view the parameters
Downwards.
Minus
Kilo
To decrement
value
Up key to edit.
display reads (YES).
(NO) .
SL VDC | SL ADC | µA VDC | µA ADC
www.elmeasure.com
3.3 Display
Programming
Default
Parameter
PT Primary(P.P)*
CT Primary(C.P)**
CT Shunt(C.S)**
Offset
Baud rate (bA)
Parity (Pr)
Device Id (dU.)
Password (PW)
Save
Note: *For VDC
**For ADC
4. WIRING DIAGRAM
SL ADC
Input
0-20mA DC
DC
Source
SL ADC
LOAD
SHUNT
User Manual
Option/Range
0.100 to 999.9kV
0.1 to 999.9kA
50 to 100
0.t.F.S to 4.t.F.S
4.800K/9.600K/19.20K/
38.40K
Odd/ no(none)/EVEn
1.000 to 247.0
1000 to 9999
Yes or No
80-300
VAC/DC
AUX
RS 485
N L
80-300
VAC/DC
AUX
RS 485
Input
N
L
DC
Source
MINUS
