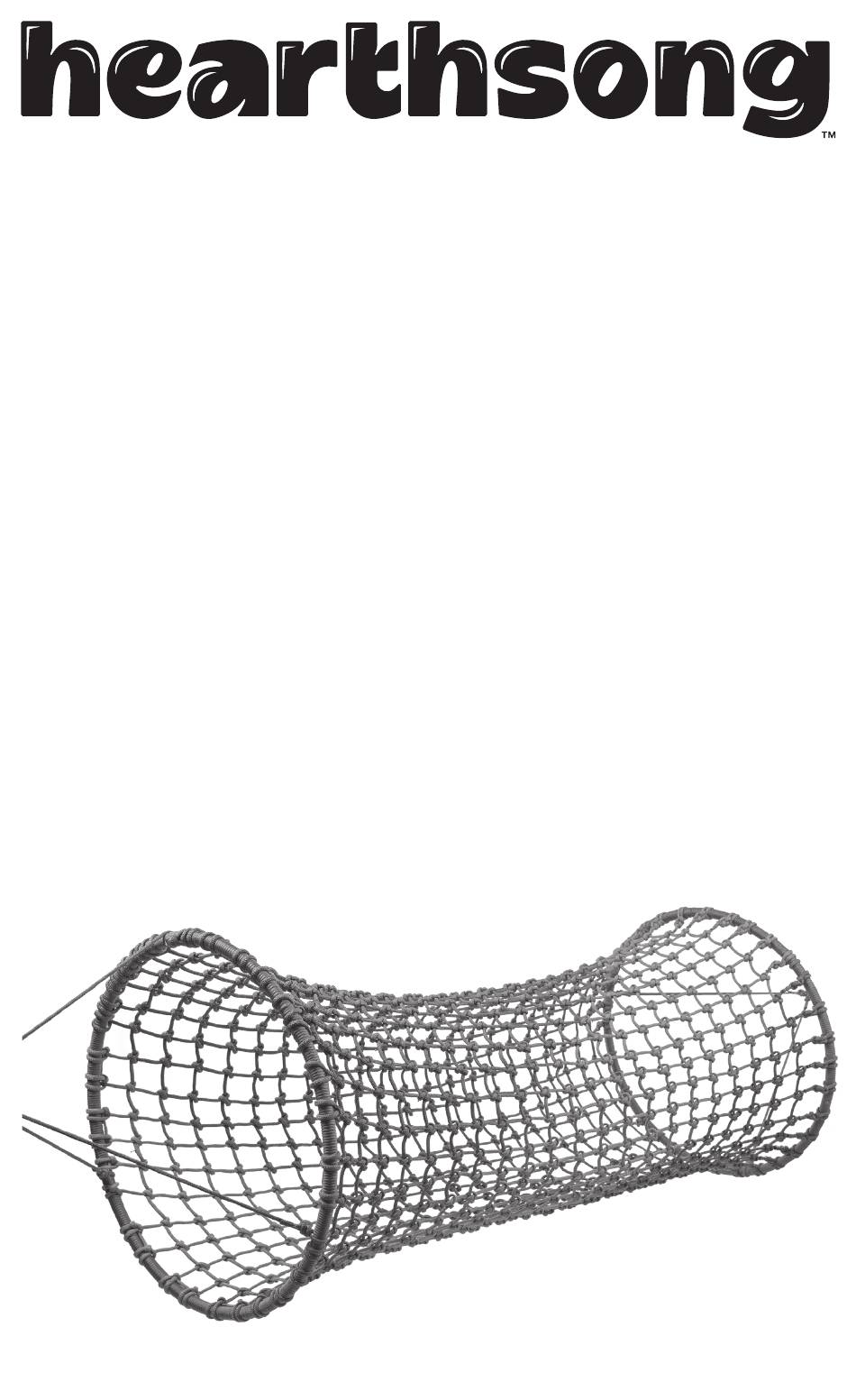

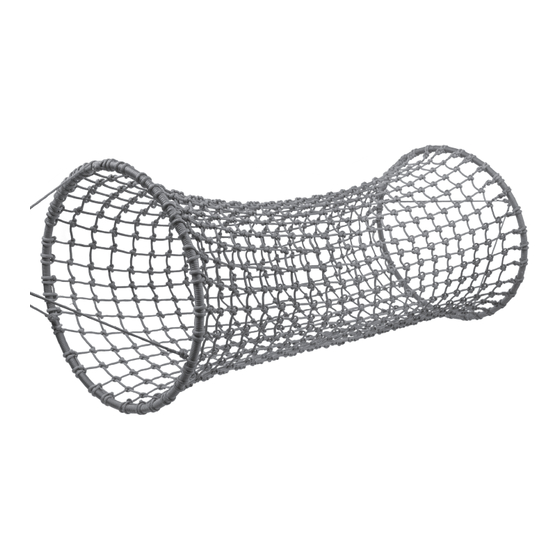

Web Rope Portal Tunnel
Safety and Assembly Instructions
#732958 | Ages 5+
Adult installation and supervision required.
Takes 2 adults to install.
Approx. 8'L x 3' diam.
Weight capacity: 400 lbs.
Parts Included:
• 1 Rope Tunnel
• 2 Straps with reinforced attachment loops
• 2 Ratchets with straps with reinforced attachment loops
(ratchet straps)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HearthSong Web Rope Portal Tunnel
Summary of Contents for HearthSong Web Rope Portal Tunnel
- Page 1 Web Rope Portal Tunnel Safety and Assembly Instructions #732958 | Ages 5+ Adult installation and supervision required. Takes 2 adults to install. Approx. 8'L x 3' diam. Weight capacity: 400 lbs. Parts Included: • 1 Rope Tunnel • 2 Straps with reinforced attachment loops •...
- Page 2 General Notes on Using Ratchets: 1. To use a ratchet, two operating elements are important: the crank and the lever. 2. In the base position (crank folded in half and locked in place), the winding axle (where the second strap will be threaded) is locked. 3.
- Page 3 4. Wrap one of the ratchet straps 5. Put the unattached strap around the trunk of a tree by through the O-ring at the end pulling the ratchet through the of the Rope Tunnel. loop at the end of the strap. 6.
- Page 4 8. Thread the end of the 9. Keep the threaded strap taut unattached strap through as you use the crank to keep the slit in the winding axle winding it around the axle. and pull until there is no slack in the strap.
-
Page 5: Safety Guidelines
Safety Guidelines Owners shall be responsible for maintaining the legibility of any warning labels. Following the safety guidance and warnings below will reduce the likelihood of serious or fatal injury. c WARNING: A fall onto a hard surface can result in serious injury to c WARNING: Do not use the equipment until properly installed. - Page 6 • Reinstall any parts that were removed for the cold season. • If the rope tunnel is hung between tree trunks, then rake and check depth of loose-fill protective surfacing materials (such as mulch or sand) to prevent compaction and to maintain appropriate depth (minimum amount is 9").
- Page 7 Email: Happy@Hearthsong.com • Phone: 1-800-533-4397 • Direct message us on social We’ll work together to ensure your best experience! Complete policy at Hearthsong.com/Returns #732958 Conforms to ASTM F1148. Made in China. © 2023 Children’s Group, LLC. Madison, VA 22727 1-800-533-4397 Hearthsong.com...
