FunShine
Safety Assembly and Installation Instructions
Assembly:
1. Thread the four Curved
Poles through the
sleeves of the Swing
Mat one by one.
#730584 Conforms to ASTM F1148 Made in China. ©HearthSong

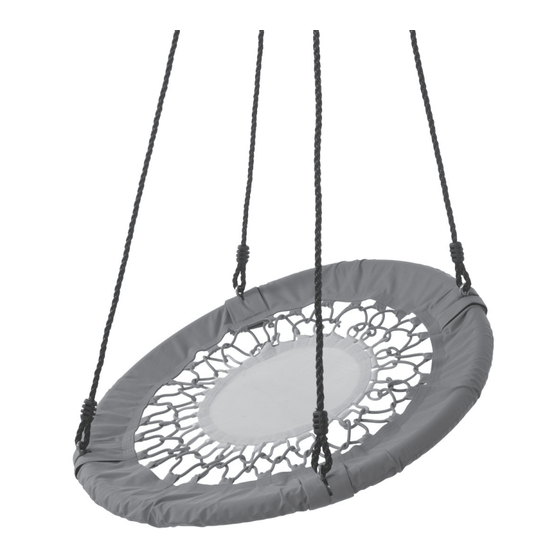

Swing
®
Includes:
4 Curved Poles
1 Swing Mat
4 Nuts
4 Washers
1 Wrench
2. Connect Curved Poles
to create two halves.
2020. Madison, VA 22727. 1-800-533-4397 HearthSong.com
®
2 Hanging Ropes, each with
• 2 0-ring bolts attached
• 1 S-hook attached for
adjustment of rope length
3. Place the open ends of
each half together so
they're at an angle.
#730584 | Ages 5+
Adult installation and supervision required.
Takes 2 adult 10 minutes to assemble.
Ropes adjusts up to 60" | 32" diam. swing
Weight Limit: 200 lbs.
4. With two adults,
simultaneously join the
ends while aligning
the holes so that they
"snap" into place.
(Continued on next page...)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HearthSong FunShine Swing
Summary of Contents for HearthSong FunShine Swing
- Page 1 Swing they're at an angle. ends while aligning Mat one by one. the holes so that they "snap" into place. (Continued on next page...) #730584 Conforms to ASTM F1148 Made in China. ©HearthSong 2020. Madison, VA 22727. 1-800-533-4397 HearthSong.com ®...
- Page 2 4. Can be hung on an A-frame or swing set or on a tree limb of a diameter of at least 10"-12". 5. The maximum fall height should not exceed 18". * Hanging hardware not included and can be purchased separately at Hearthsong.com. USE: •...
- Page 3 (minimum amount is 9"). Replace as needed. Specification for Home Playground Equipment. Please retain these instructions for future use. #730584 Conforms to ASTM F1148 Made in China. ©HearthSong 2020. Madison, VA 22727. 1-800-533-4397 HearthSong.com ® Only use color bar if instructions are 4C. Take out if only B&W...
