HearthSong Sunshine Metal Climbing Dome Assembly Instructions

#730767

For ages 4 and up.

Adult assembly and installation required.

Takes 2 adults 2 hours to install.

Weight capacity: 800 lbs.

For outdoor use only, over soft surfaces.

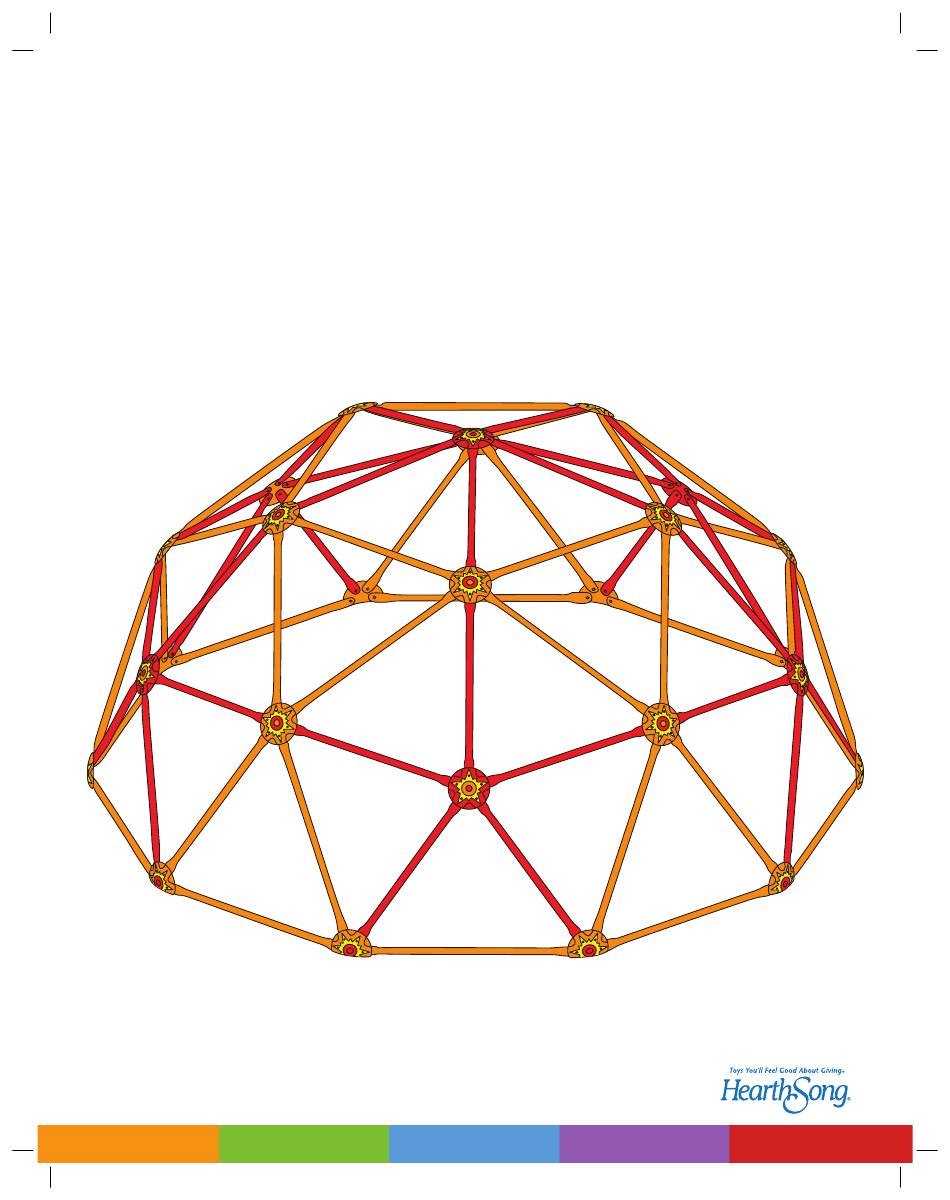

Sunshine Metal Climbing Dome

Assembly Instructions

Fully Assem-

Madison, VA 22727. 1-800-533-4397

hearthsong.com

730767_SunriseGeoDome.indd 1

12/20/16 2:32 PM

Table of Contents

Need help?

Do you have a question about the Sunshine Metal Climbing Dome and is the answer not in the manual?

Page 1 Takes 2 adults 2 hours to install. Weight capacity: 800 lbs. For outdoor use only, over soft surfaces. Sunshine Metal Climbing Dome Assembly Instructions Fully Assem- Conforms to ASTM F1148 Made in China ©2016 HearthSong ® Madison, VA 22727. 1-800-533-4397 hearthsong.com 730767_SunriseGeoDome.indd 1 12/20/16 2:32 PM...
Page 2 Make sure you have all the necessary parts: Six-Point Cap (A) x10 Short Bar (D) x30 Five-Point Cap (B) x 6 Long Bar (E) x35 Four-Point Carriage Locking Cap (C) x10 Bolt x130 Nut x130 Step 1: The assembly of the climber can best be approached as assembling a series of sections. Start by putting a section together, then make 4 more sections and connect them all together: The first step to assembling a section is illustrated above.
Page 3 Step 2: Add a top, bottom, and left side to each of the five sections, using four bars (2 D bars and 2 E bars), two five-point caps (B), and one four-point cap (C). Step 3: Hex 1 of 5 Hex 2 of 5 All 5 hex assemblies attached to each other.
Page 4 Step Now assemble the section that will become the top of the climber, using five D bars and a five-point cap (B). Step 5: Bolt the assembled top to the five-point caps (B) on the top of the completed base of the climber.
