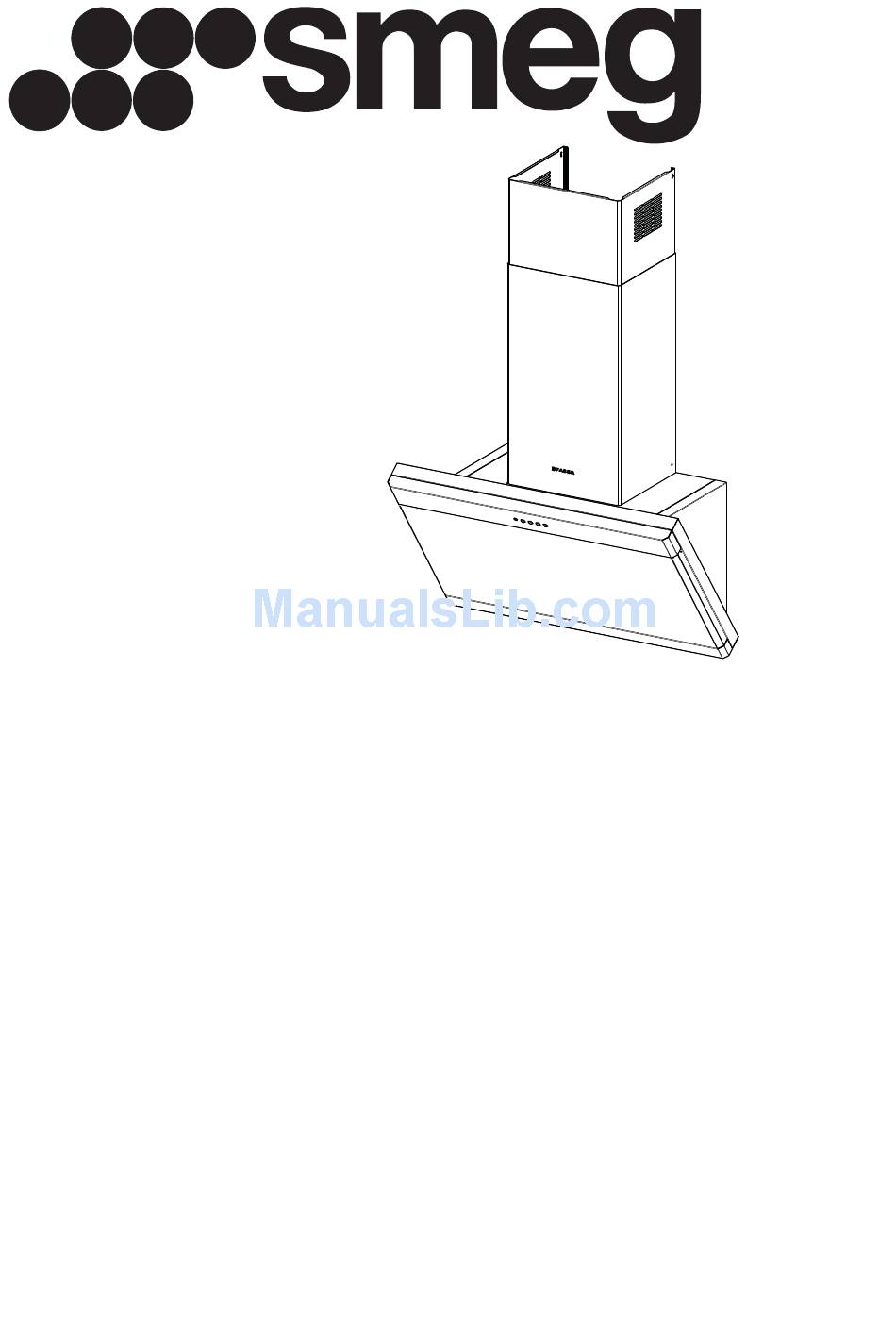

- Page 1 Libretto di Istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Руководство по эксплуатации Bruksanvisning Brugsvejledning KL175X...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI... 4 CARATTERISTICHE... 5 INSTALLAZIONE ... 6 USO... 9 MANUTENZIONE ... 10 INDEX RECOMMENDATIONS AND SUGGESTIONS ... 12 CHARACTERISTICS ... 13 INSTALLATION... 14 USE ... 17 MAINTENANCE ... 18 SOMMAIRE CONSEILS ET SUGGESTIONS... 20 CARACTERISTIQUES... 21 INSTALLATION... 22 UTILISATION ...
- Page 3 ÍNDICE CONSELHOS E SUGESTÕES... 52 CARACTERÍSTICAS ... 53 INSTALAÇÃO... 54 UTILIZAÇÃO ... 57 MANUTENÇÃO... 58 УКАЗАТЕЛЬ СОВЕТЫ И РЕКОМЕНДАЦИИ ... 60 ХАРАКТЕРИСТИКИ... 61 УСТАНОВКА... 62 ЭКСПЛУАТАЦИЯ... 65 УХОД... 66 INNEHÅLL REKOMMENDATIONER OCH TIPS ... 68 EGENSKAPER... 69 INSTALLATION... 70 ANVÄNDING... 73 UNDERHÅLL...
-
Page 4: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. - Page 5 CHARACTERISTICS Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support Wall Plugs Screws 4,2 x 44,4...
-
Page 6: Installation
INSTALLATION Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 1080 mm above the hob. •... -
Page 7: Ducted Version Air Exhaust System
Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the... -
Page 8: Electrical Connection
ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. -
Page 9: Control Panel
BUTTON T1 Speed T2 Speed T3 Speed Fixed Flashing Light Warning: Button T1 turns the motor off, after first passing to speed one. Control panel FUNCTIONS Turns the Motor on at Speed one. Turns the Motor off. Turns the Motor on at Speed two. When pressed briefly, turns the Motor on at Speed three. -
Page 10: Maintenance
MAINTENANCE Cleaning the Comfort Panels • Pull the Comfort Panel to open it. • Disconnect the panel from the hood canopy by sliding the fix- ing pin lever. • The comfort panel must never be washed in a dishwasher. • Clean the outside by using a damp cloth and neutral liquid de- tergent. -
Page 11: Replacing The Activated Charcoal Filter
Activated charcoal filter (Recirculation version) REPLACING THE ACTIVATED CHARCOAL FILTER • The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage. • Open the comfort panels pulling them downwards. •...
