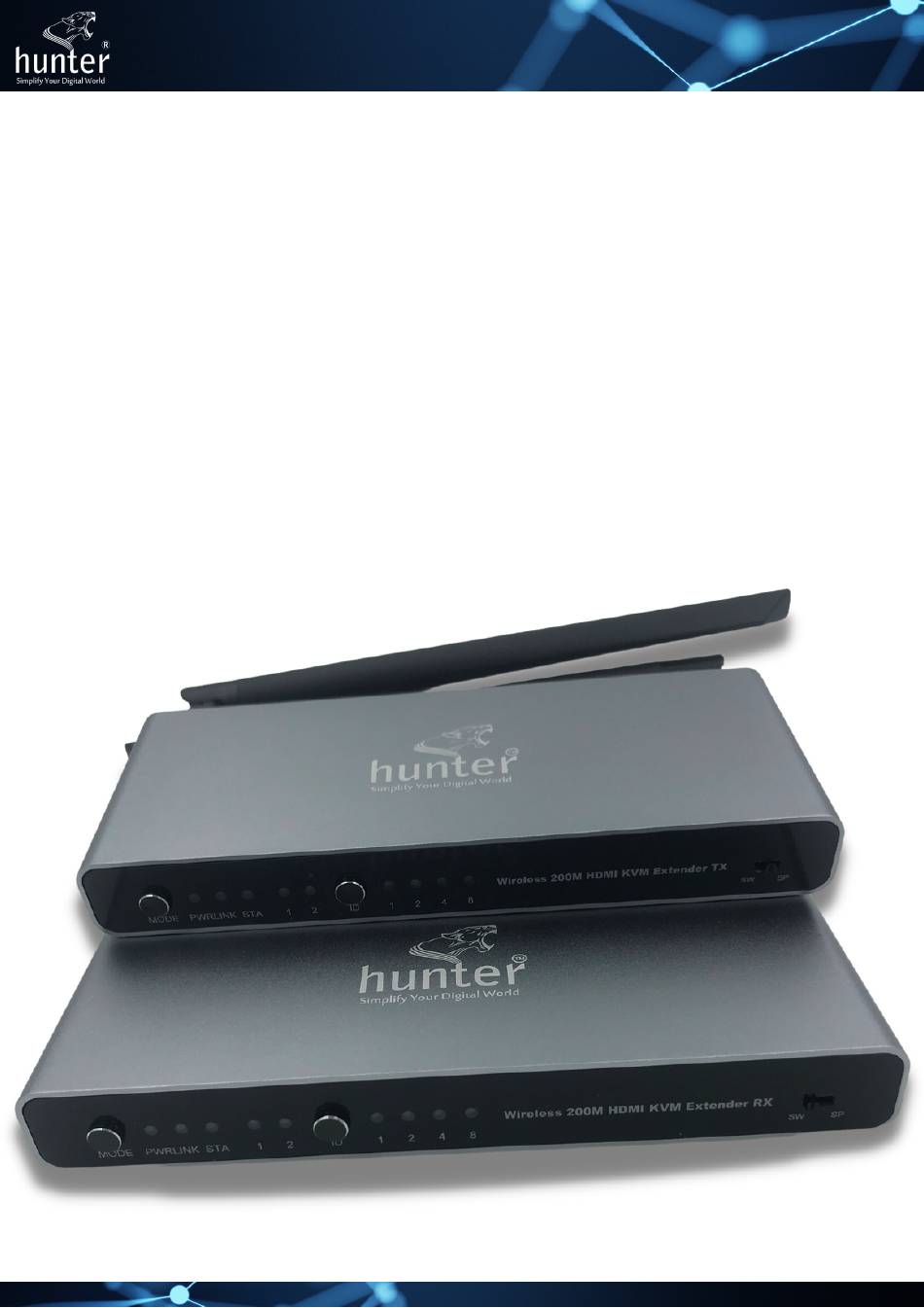

- Page 1 Hunter Wireless 200M HDMI KVM Extender USER MANUAL 9104-Hunter HTE-200EWHDK Wireless 200M HDMI KVM Extender www.hunterbharat.com www.hunterbharat.com...
- Page 2 Product Introduction Hunter Wireless HDMI KVM Extender 1080p - 200m extends high definition HDMI signals wirelessly from a source device to a display device up to 200 meters with the advanced application of transport protocol and wireless technology. It requires no cables between the transmitter (TX) and receiver (RX), making the installation easy and clean. Great for homes and offices.
-
Page 3: Conference Room
Specifications HDMI Transmitter Input/Output Ports 1x HDMI port/1 x PC/1 x AUX 1x IR Transmitter/1 x HDMI port HDMI Receiver Input/Output Ports 1x IR Receiver 1x HDMI port/2 x PC/1 x AUX Wireless length between Rx and TX 200 meters HDMI Input 1080p/720p/576p/576i/480p/480i HDMI Output 1080p/720p/576p/576i/480p/480i Power Supply DC 5 V 2 A... - Page 4 Operation Control & Functions Transmitter - TX Light signal and button: 1 Mode button:Click to enable DHCP mode(lighting for mode 1),and long press to switch channel bit(lighting for mode 2). 2 Power light:Lighting when power is supplied. 3 Link(Ethernet)light:Lighting when Ethernet is connected 4 STA(HDMI)light:Flashing when data is transmitting.
- Page 5 Receiver -RX Light signal and button: 1 Mode button: Click to switch display mode (lighting for mode 1), and long press to switch channel bit (lighting for mode 2). 2 Power light:Lighting when power is supplied. 3 Link(Ethernet) light:Flashing when data is transmitting. 4 STA(HDMI) light: Lighting when HDMI cable is connected.
- Page 6 Channel Adjustment Low-bit channel 1-15: Press ID button to switch channel from 1 to 15. www.hunterbharat.com Advanced section for more channels If 15 channels are not enough for your circumstances, up to 255 channels are provided. The channel ID more than 15 is “high bits * 16 + low bits”. 1.
- Page 7 2. Example for channel 16-32: www.hunterbharat.com (1) Long press MODE button to light on Mode 2 signal to adjust high-bit channel. (2) Click ID button to 1. High-bit channel 1 makes low-bit channel adjustment start from channel 16. (High-bit channel 2 makes low-bit channel adjustment start from 32. So as high-bit channel 3-15 adjust low-bit channel from 46-255.) (3) Long press MODE button again to switch to low-bit adjustment.
-
Page 8: Installation
Note: Only channel 1-15 are adjustable when high-bit channel is 0, which means not allowing the adjustment of high-bit channel 0 and low-bit channel 0 simultaneously. Installation Splitter Mode Display (1 to 1): www.hunterbharat.com 1. Position the toggle switch to Splitter Mode on both RX and TX. 2. - Page 9 Switch Mode Display (1 to N, N to 1): 1. Position the toggle switch to Switch Mode on both RX and TX. 2. Connect power to 5V/2A and a monitor to display output on RX. 3. Connect RX and TX by the USB-A data cable to pair. 4.
- Page 10 Installation of Remote Control Two flexible methods for remote control are supported: IR control, USB Keyboard/ Mouse control. The connection examples are only for the remote control function, please arrange other display kits depending on your needs. 1. IR control: Equip IR kit on RX and TX to control the device connected to TX from RX.
- Page 11 Installation of Audio Input and Output 1. HDMI input and HDMI output 4. HDMI/ AUX input and HDMI/ AUX output www.hunterbharat.com 5. HDMI input and AUX output 2. AUX input and HDMI output 3. HDMI input and HDMI/ AUX outp 6.
- Page 12 Configuration Examples Extender (1 to 1) Splitter (1 to N) www.hunterbharat.com Switcher (1 to 1, N to 1) www.hunterbharat.com...
- Page 13 IR BLASTER (TX) To control the source: IR Receiver (RX) Plug IR Blaster into IR TX port of transmitt Plug IR Receiver into IR RX port of receiver er unit; place blaster in front of the IR eye o unit; place receiver at or near display. f the source. www.hunterbharat.com Package Content Hunter HDMI RX Hunter HDMI TX 5V 2A DC Power Windband IR Rx USB Cable Windband IR Tx Supply Adapter Cable Cable www.hunterbharat.com...
- Page 14 www.hunterbharat.com www.hunterbharat.com...
