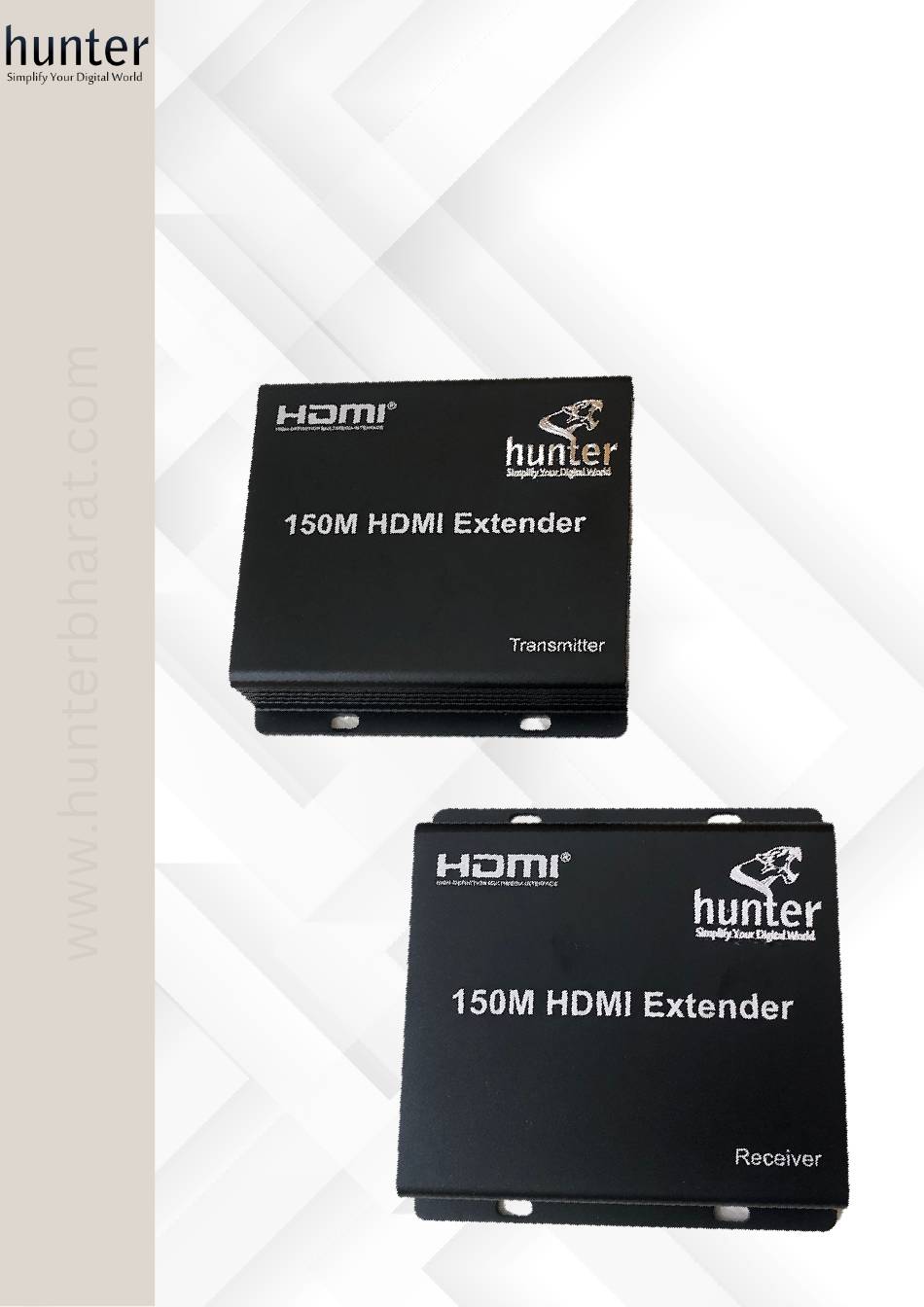

- Page 1 Hunter HDMI Extender FHD 150m with POE 9443-HTC-150EPoE USER MANUAL...
- Page 2 Product Introduction Hunter HDMI Extender uses single cat6 or 6E(recommended) cable instead of HDMI cable to transmit high definition signal up to 150 meters. The Extender is designed to supply for long distance transmission of high definition signal. Features Allows HDMI signals to be transmitted over a single Cat5e/6 cable.
- Page 3 Physical interface diagram: Reset Reset DC/12V DC/12V HDMI In HDMI Out Ethernet Ethernet DC/12V --- Power adapter port PWN --- Power indicator HDMI --- Signal indicator Link --- Network connection indicator Reset --- Restart key HDMI In --- Connect HDMI signal source HDMI Out --- HDMI output, connect HDMI display device Ethernet --- Network interface by cat5e/6 Connection &...
- Page 4 Connection Diagram CAT6/6E Cable HDMI Cable HDMI Cable Warranty 1 Year If your product does not work properly because of a defect in materials or workmanship, our Company (warrantor) will, for the length of the period indicated as 1 Years, which starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product.
