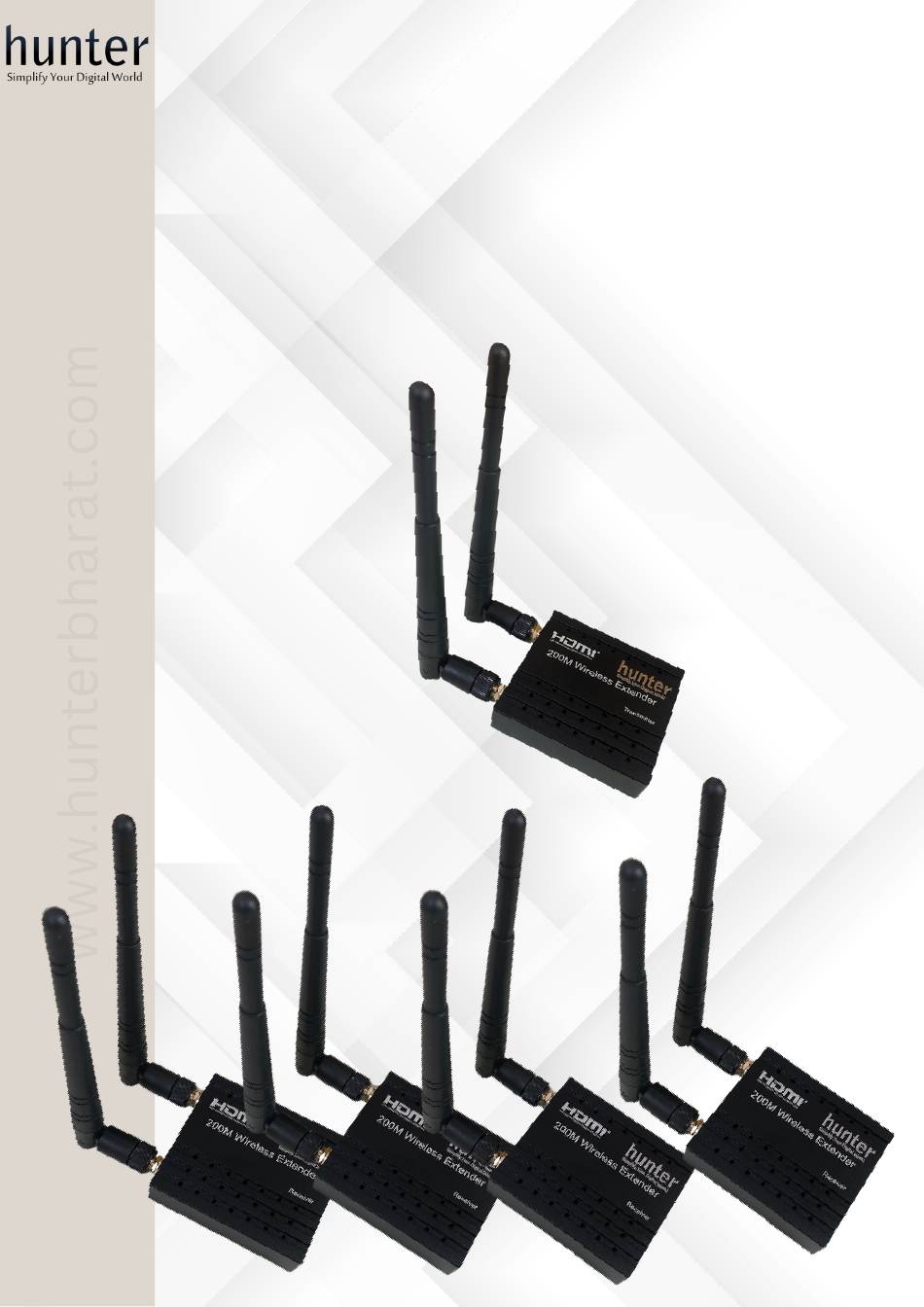

- Page 1 Hunter Full HD Wireless HDMI Extender 200 M Set (1+4) 9442-HTC-200WEHD USER MANUAL Transmitter Receivers...
- Page 2 Product Introduction Hunter HDMI Wireless Extender utilizes 2.4G and 5G modules to facilitate high-speed, high-performance wireless transmission between consumer electronics, computers, and mobile devices. By combining high bandwidth capacity with robust error correction capabilities, it ensures the transmission of HD video signals. This extender can transmit signals up to 200 meters in open areas and is capable of penetrating walls (the transmission range will reduce based on the walls &...
- Page 3 Operating and Connecting: DC/5V ANT1 ANT2 HDMI Out HDMI In DC/5V ANT1 ANT2 HDMI Out 1: ANT1-2 --- Antenna 4: DC/5V --- 5V DC Power 2: HDMI Out --- HDMI input port loop-out port 5: HDMI Out --- HDMI Out port 3: HDMI In --- HDMI Input...
- Page 4 Connection Diagram HDMI cable HDMI cable Type-C cable Type-C cable 200m（open area ） HDMI cable HDMI cable HDMI cable HDMI cable Type-C cable Type-C cable Type-C cable Connection and Operation: Connect the HD source to the input of the wireless extender TX with 1 HDMI cable Connect the output of the wireless extender RX to the display device with 1 HDMI cable...
