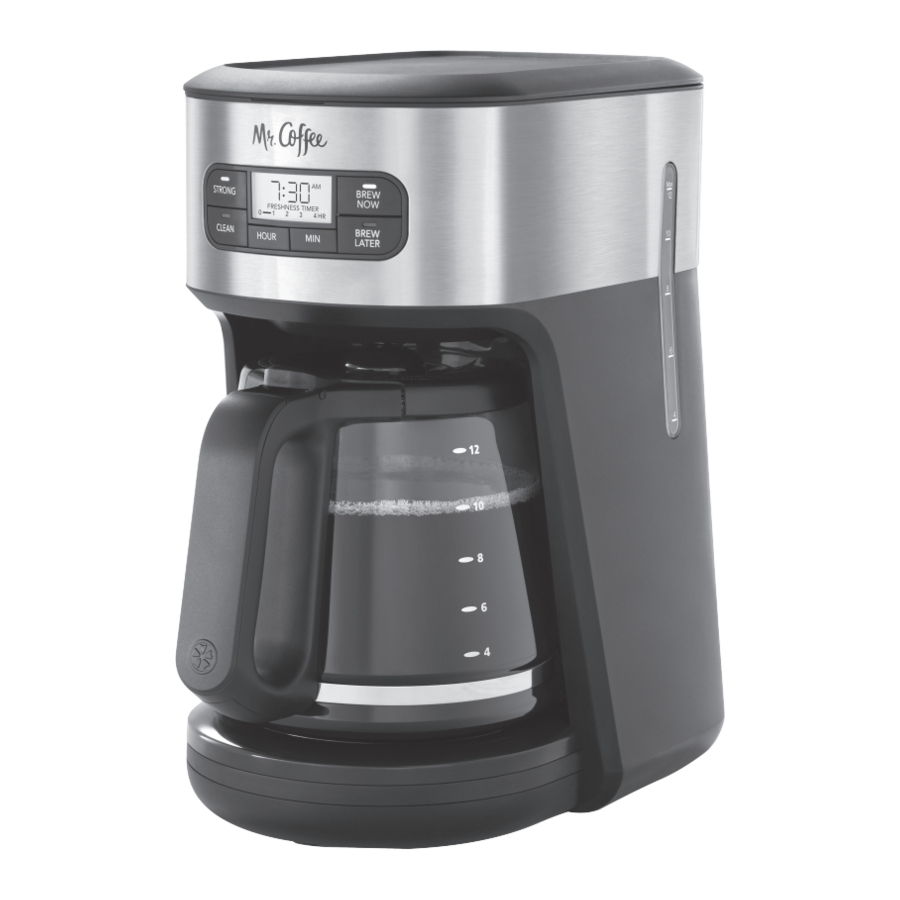

Mr. Coffee BVMC-EM100 - Programmable Coffee Maker Manual

Get To Know Your Coffeemaker Brewer

1. Brew Basket
2. Carafe
3. Control Panel
4. Brewer Base
5. Grab-a-cup Auto Pause
6. Warming Plate
7. Water Reservoir Lid

Coffeemaker Extras

(not included with all models)

• Water Filtration Disk


Understand Your Control Panel

1. Strong Brew Button
2. Strong Indicator
3. Clean Button
4. Clean Indicator
5. Brew Later Button
6. Brew Later Indicator
7. Hour Button
8. Minute Button
9. Brew Now /Off Button
10. Brew Now Indicator
11. Clock Display
12. AM/PM Indicator
13. Freshness Timer

Getting Started

Unpack your Coffeemaker

Unpack your coffeemaker and remove all plastic bags, cartons and any tape on the brewer.

KEEP PLASTIC BAGS AWAY FROM CHILDREN.

Setting the Clock

Plug in brewer into an outlet. Press the HR and MIN buttons to set the clock. Pressing any button other than HR or MIN or 5 seconds of inactivity will set the clock at the time selected.

Water Filtration System

Using the carbon-based water filter in your coffeemaker during the brewing process helps remove up to 97% of the chlorine from the water and improves the taste of your coffee.

To use the water filtration system, please follow these steps:

1. Align the red indicator on the frame to the letter that corresponds with the month that you are using the disk for the first time. This serves to remind you to change the disk every month (approx. 30 brewing cycles). To change the disk, remove the used disk, insert new disk into the frame.
2. Rinse the water filter in fresh water before first use.
3. Follow the instructions from the "Brewing Coffee" section.
4. When you are done brewing, rinse the water filter with fresh water. Do not put your water filter in the dishwasher.

To replace the water filter disks: slide the used disk from your water filtration system. To insert the new disk, slide disk into the frame.

Clean Before First Use

1. Wash the Parts - Wash the carafe and brew basket in a mixture of mild detergent and water. Rinse each thoroughly.
2. Fill Water Reservoir – Fill the Water Reservoir with fresh water to the MAX fill line.
3. Place Carafe – Set the Carafe on the warming plate.
4. Run without Coffee – Leave the Brew Basket empty. Press the BREW NOW button once so that the Brew Now
   Indicator is illuminated to begin the Cleansing Brew cycle. There will be an audible signal when the brewing cycle is complete. Once the unit stops dripping, pour the hot water in the carafe into the sink.

Note: Brew Basket and Carafe are top rack dishwasher safe.

Suggested Coffee Measurement Chart

1 level tablespoon (tbsp) = 5 gr. / 0.17 oz.
1 cup = 5 fl. oz. of brewed coffee

Use more or less coffee to suit your taste. Please note that extra fine coffee grounds and decaf coffee may leave some grounds in the carafe after brewing.

Brewing Coffee

1. Fill Water Reservoir – Fill the Water Reservoir with fresh water to the desired amount. Use the Water Window to check how much water is in the reservoir.
2. Line the Brew Basket - Place an 8-12 Cup Paper Filter or for best results use a Reusable Coffee filter (not included with all models) inside the Brew Basket.
3. Add Coffee – Scoop the desired amount of coffee into the Brew Basket. (Figure 1)

   Figure 1

   Refer to the Coffee Measuring Chart for guidance based on the number of cups being brewed.
4. Place Carafe - Place the Carafe on the Figure 1 warming plate.
5. The BREW NOW Indicator will remain illuminated for the duration of the keep warm time. To turn the coffeemaker off before it goes off automatically after 4 hours, press the Brew Now button.

   Figure 2

Note: For a fresh cup, remember to clean the Brew Basket between each brew.

Using the Strong Brew Function

The Strong Brew Function slows down the brewing process to allow the hot water to fully saturate the grounds and extract bolder flavors. There will be brief pauses in the brewing process in order to pull the strong taste from your coffee grounds.

1. To enjoy a richer and bolder cup of coffee, follow steps 1-4 in the "Brewing Coffee" section or steps 1-3 in the "How to Use the Brew Later Function" section.
2. Press the STRONG Button once at the beginning of brewing so that the Strong Brew Indicator is illuminated. (Figure 3)

   Figure 3
3. If you change your mind mid-brew, press the STRONG Button again so that the Strong Brew Indicator is no longer illuminated.

Using the Brew Later Function

You must set the clock before using this feature.

1. To set the Brew Later function, follow steps 1-4 in the "Brewing Coffee" section.
2. Press BREW LATER. The Brew Later Indicator will illuminate. The clock will flash the currently set Brew Later time (if no time has been set, the clock will show 12:00 AM). To set desired brew time, press the HR and MIN buttons. 5 seconds of inactivity will set Brew Later at the time selected. The Brew Later Indicator will remain illuminated to indicate that the coffeemaker is set to brew at a later time. The clock will go back to showing the set time of day. (Figure 4)

   Figure 4
3. If you change your mind and wish to turn off the Brew Later feature, simply press BREW LATER again and the Brew
   Later indicator will turn off. Once the Brew Later time is set, the coffeemaker will automatically remember the time until you change it or unplug the machine.

NOTE: As a reminder, if you want to continue to use the Brew Later feature, you will have to repeat these steps each time. Your coffeemaker will not automatically start again the next day.

Understanding the Freshness Timer

The Freshness Timer displays how long it has been since the coffee was brewed. It automatically starts at the beginning of the brew cycle. The progress bar will illuminate in 1 hour segments. At the end of 4 hours, all bars will be lit and the coffeemaker will automatically turn off.

Water

While it may not seem like an important ingredient, coffee is 98 percent water. The type of water that you brew with greatly affects the final taste. Always use clean, fresh water that is filtered and free of impurities. It is best to avoid soft water or well water. Please refer to the "Advanced Water Filtration System" section to learn more about how your coffeemaker reduces impurities in water.

Routine Cleaning

A clean coffeemaker is essential to brewing great tasting coffee each and every time.

Daily Cleaning

Make sure your coffeemaker is unplugged and has cooled completely before cleaning.
Remove the Brew Basket and Carafe and wash them in a solution of hot water and mild liquid soap, and dry thoroughly. You can also place the Brew Basket and Carafe in the dishwasher; top-rack only. Do not wash the Advanced Water Filtration cartridge with soap.

Using the Clean Function to Decalcify your Coffeemaker

Minerals (calcium/limestone) found in water will leave deposits in your coffeemaker and affect its performance. The Clean Indicator will illuminate when it is recommended to clean and decalcify your coffeemaker using vinegar. To decalcify your coffeemaker, follow the steps below.

1.
   Remove the Advanced Water Filtration System from the coffeemaker.
2. Prepare 4 cups or 20 fl. oz. of undiluted, white household vinegar. Pour the vinegar into the water reservoir on the carafe side.
3. Place an empty 8-12 cup basket-style paper filter or a Mr. Coffee Reusable Coffee Filter into the brew basket.
4. Place the empty carafe on the unit, centered on the warming plate.
5. Press CLEAN so that the Clean indicator lit solid. The prepared cleaning solution will begin being brewed through the coffeemaker. (Figure 5)

   Figure 5

6. The entire cycle will take approximately 45 minutes to complete. The Clean Indicator will turn off when the cycle is complete.
7. Discard the cleaning solution and rinse the carafe thoroughly with clean water.
8. Fill the water reservoir with 12 cups of clean, fresh water.
9. Place the empty carafe back on the coffeemaker, centered on the warming plate.
10. Remove and discard the paper filter used during the cleaning cycle. If a Mr. Coffee Reusable Coffee Filter was used during cleaning, remove it and rinse it thoroughly before replacing it in the brew basket.
11. Press BREW NOW so that the Brew Now Indicator is illuminated and allow the full brew cycle to complete, rinsing the coffeemaker with hot water.
12. Discard the water from the carafe and rinse the carafe thoroughly with clean water.
13. Repeat steps 8 through 12 one more time, to ensure the coffeemaker is fully rinsed.

The Clean Indicator will blink when your coffeemaker has counted 90 brew cycles. Follow steps 1-13 to complete the Clean function. The Clean Indicator will turn off once the clean function is run in its entirety (this will take 45 minutes). If you wish to stop the Clean function once it has already begun, press the CLEAN button, the Clean function will stop and the Clean Indicator will turn off. Press the BREW NOW button again to ensure the cleaning solution is completely brewed through the machine and follow steps 7-12. If you wish to turn off the Clean Indicator without running a decalcification cycle, simply press the CLEAN button so that the Clean Indicator is lid solid and then quickly press the CLEAN button again and the Clean Indicator will turn off.
Please note that we strongly recommend that you run the
Clean function in its entirety when prompted by the Clean Indicator to ensure that your coffeemaker's performance is not affected over time.
If the Clean Indicator is not illuminated, but you wish to use the Clean function, you can still follow steps 1-13.

Cleaning Frequency

Troubleshooting your Coffeemaker

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
5. Unplug from outlet when either the appliance or display clock (if provided) is not in use, and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an Authorized Service Center for examination, repair or adjustment. Do not attempt to replace or splice a damaged cord.
7. The use of an accessory not recommended by the appliance manufacturer for use with this appliance may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into the wall outlet (for appliances with detachable cords). To disconnect, turn any control to the off position, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. All lids should be closed during use.
14. Scalding may occur if the lid is removed or brew basket door is opened during or immediately after the brewing cycles. Contents may be hot. Allow to cool before opening the lid.

For appliances with sealed capsules

15.
    To avoid the risk of injury, never open or disengage the brew chamber during the brew cycle.
16. Only use capsules intended for this appliance. If the capsule does not fit, do not force the capsule into the appliance.

For appliances with glass containers:

17. The container is designed for use with this appliance. It must never be used on a range top.
18. Do not set a hot container on a wet or cold surface.
19. Avoid sudden temperature changes, such as rinsing, washing, filling, or immersing a hot container with cold liquids.
20. Do not use a cracked or chipped container or a container having a loose or weakened handle.
21. Do not clean container with cleansers, steel wool pads, or other abrasive material.

For appliances with service panels:

22.
    TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE THIS COVER. NO USER–SERVICEABLE PARTS INSIDE. REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY.

SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY

Polarized plug

North American models with polarized plugs:

This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature or modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS

A short power-supply cord (or detachable power-supply cord) may be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
2. If the appliance is of the grounded type, the extension cord should be a grounding type 3-wire cord; and
3. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

Do not pull, twist or otherwise abuse the power cord.

PRODUCT NOTICES

1. Place the appliance on a hard, flat, level surface to avoid interruption of airflow underneath the coffeemaker.
2. Glass decanters only: Discard the decanter immediately if it is ever boiled dry.
3. Glass decanters only: Protect the decanter from sharp blows, scratches or rough handling.
4. Do not operate the appliance with an empty water tank.
5. Keep the area above the appliance clear during use, as hot steam will escape the appliance.

If you have any questions about your new coffeemaker, please contact us at 1-800-672-6333
or visit us at www.mrcoffee.com.
