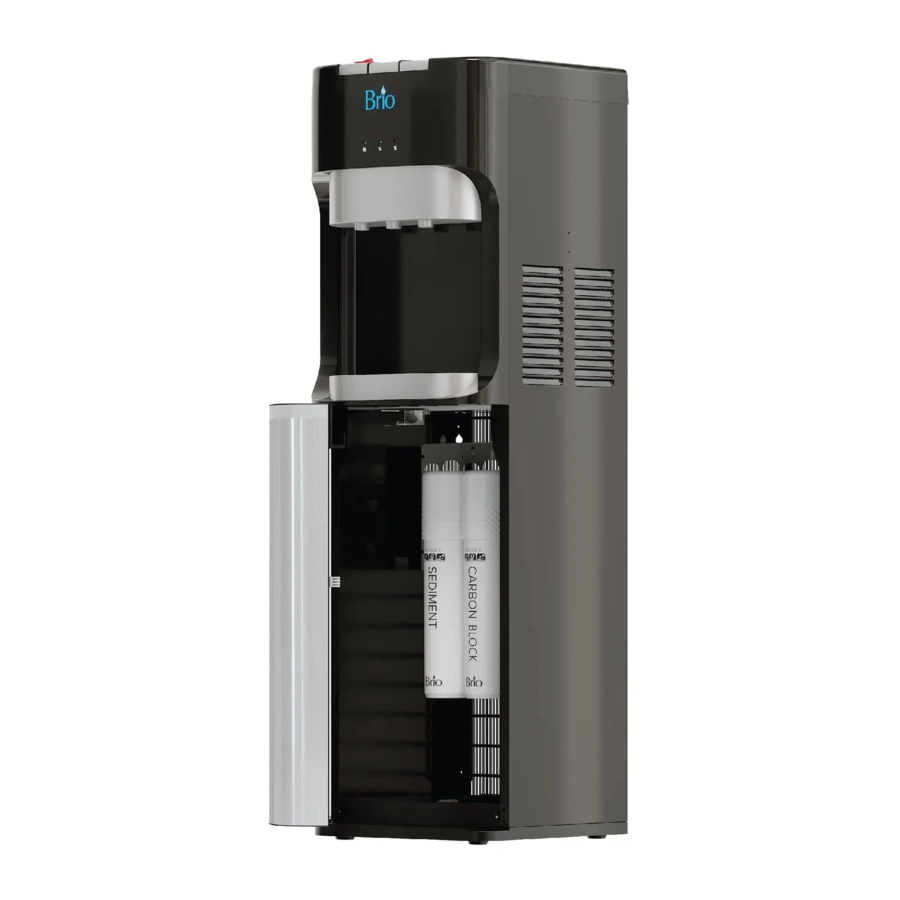

Brio CLPOU420UVF2 - Water Dispenser Manual

Product Features

Indicator Panel Description

1. Power indicator light - When illuminated, indicates the dispenser is on. When blinking, UV is working.
2. Hot water indicator light - When illuminated, indicates that the dispenser is heating water.
3. Cold water indicator light - When illuminated, indicates the dispenser is cooling water.

Product Dimensions

Package Contents

Materials Needed

Installation

1. Determine Installation Location

   1. Place the dispenser upright.
   2. Locate the dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet.
      NOTICE: Do NOT plug in the power cord until the entire installation section is completed.
   3. Position the back of the dispenser no closer than 20 cm (8 in.) from a wall and permit free airflow between the wall and water dispenser.
2. Connect to the Cold Water Supply

   DO NOT CONNECT THIS WATER LINE TO A HOT WATER SUPPLY LINE. The water supply to the unit MUST be from the COLD WATER LINE. Using HOT WATER will severely damage your filters.

   1. Turn off and then disconnect the current cold water supply line.
   2. Connect the feed water adapter (E) to the cold water supply line.
   3. Connect the cold water supply line on top of the feed water adapter (E).
      NOTE: An extra adapter nut is included on top of the feed water adapter (E) to attach to a 3/8 in. or 1/2 in. feed plumbing line.
   4. Insert the shut-off valve with tube (B) straight into the quick connector piece of the feed water adapter (E).

   5. Gently tug on the tube (B) to ensure a secure connection with the feed water adapter (E).

3. Flush the Filters

   Follow this procedure every time you replace your filters.

   Ensure the water supply is off before you begin.
   1. Connect a filter (D) to the filter housing (C) by twisting the filter (D) clockwise.

   2. Connect the tip of the shut-off valve tube (B) to the left side of the filter housing (C).

   3. Connect the filter flushing tube (A) to the right side of the filter housing (C) and lay the open end of the filter flushing tube (A) over a sink or receptacle to collect water.
   4. Flush each filter for a minimum of 5 minutes. The recommended rate is 1.5‑3 gallons of water (about 10 minutes) or until the water is clear in appearance.
   5. Shut off the valve at the water source and remove the filter housing from the tube (B).

4. Install the Filters and Complete the Installation
   1. After flushing, twist each filter (D) clockwise into the filter housings located inside the dispenser cabinet. The sediment filter goes on the left, the carbon filter on the right.

   2. Remove the safety plug from the water inlet hole on the back of the dispenser by pushing in the inlet hole collar and then gently pulling out the plug.
   3. Connect the tip of the shut-off valve tube (B) into the water inlet hole on the back of the dispenser. Then turn on the main water supply and ensure the valve in the tube (B) is on.


Operation

This unit has been tested and sanitized prior to packing and shipping. During transit, dust and odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water prior to drinking any water.

Turn the Dispenser On/Off

Before you activate the hot and cold switches, ensure water has filled the tanks inside the dispenser in order to prevent dry heating.

1. Plug in the dispenser.
2. Run water through the cold and hot water taps until water begins to dispense.
3. To power on the cooling system, flip the cooling switch to the On position.
4. To power on the heating system, flip the heating switch to the On position.

Dispense Cold Water
NOTE: Water will take approximately 1 hour after plugging in and turning on to become completely chilled. The cooling light will turn off once the water has been fully chilled.

1. .Place a drinking glass or container under the cold water faucet and press cold water button to dispense cold water.
2. Release when your container is full.

Dispense Hot Water and Activate Child Safety Lock

This unit dispenses water at temperatures that can cause severe burns. Avoid direct contact with hot water. Keep children and pets away from the unit while dispensing. Never allow children to dispense hot water without proper and direct supervision. Disable the heating feature by switching the heating convenience switch to the Off position.
NOTE: Water will take approximately 15-20 minutes after plugging in and turning on to reach its hottest temperature. The heating light will turn off once the water has been fully heated.

1. This water dispenser is equipped with a child safety feature in order to prevent inadvertent dispensing. To enable dispensing of hot water, place a cup or container under the hot water faucet. Slide the red lock button on the hot water button to the left. While holding the red button, press the hot water button and dispense hot water.
2. Release the red lock button and hot water button once your container is full.

Troubleshooting

Cleaning and Maintenance

Clean the Dispenser

Before cleaning, make sure the power switch is in the O (off) position and unplug the water dispenser.

This dispenser contains UV technology that will help keep your dispenser clean. However, if you do need to clean your dispenser for any reason, follow these steps:

1. Remove remaining water from reservoirs in the dispenser by dispensing from the hot and cold taps into a pitcher or bucket.
2. Remove the top cover (1), cold tank cover (2), and separator (3).

3. Rinse off the separator (3) in the sink and wipe clean with a soft cloth.
4. Create a cleaning solution of 0.3 gallons vinegar and 0.3 gallons hot tap water. Allow the cleaning solution to fill the reservoir and sit for at least 10 minutes.
5. Place a large bucket beneath the drain outlet at the back of the dispenser.
6. Remove the drain cover and drain the water.
7. Reinstall the drain cover, separator, cold tank cover, and top cover after draining. Ensure all water supply connections are connected securely.
8. Plug the dispenser back into the outlet and turn on.

Filter Replacement Schedule

Replace the Filters

Only replace the filters with new filters designed for this dispenser. Any other type of filter will damage the machine and void any warranty.
When a filter is approaching the end of its life, the red indicator light starts to blink. When the filter has reached the end of its life, the indicator light remains red. To change filters:

1. Shut off the water supply.
2. Remove the old filters and replace with new filters. Ensure the sediment filter is on the left and the carbon block filter is on the right.
3. To flush your new filters, follow the instructions in Step 5 ‑ Flush the Filters and Complete the Installation.
4. Press the filter reset button until the red indicator light turns off.

Filter Specifications

Care and Maintenance

• Keep this dispenser in a dry and cool place and avoid direct sunshine.
• Ensure the back of the dispenser is at least 20 cm (8 in.) away from the wall.
• Never put the dispenser on paper or foam, which may store water and then cause creepage. Never put anything flammable beside this machine.
• Do not use the dispenser outdoors or in a place that can be splashed by water.
• If the dispenser is not in use for longer than a 24-hour period, turn off the heating switch or the refrigerating switch to save power and drain any remaining water.
• If the water supply is cut off, shut off the water supply and turn the dispenser off. When the water supply is back on, re-open the water supply to the dispenser, turn the dispenser on, and allow the dispenser to run in order to discharge sediment.

Safety Information

To reduce risk of injury and property damage, you must read this entire guide before assembling, installing and operating the dispenser.

This product dispenses water at very high temperatures. Failure to use properly can cause personal injury. When operating this dispenser, always exercise basic safety precautions, including the following:

• Prior to use, this dispenser must be properly assembled and installed in accordance with this manual.
• For indoor use only. Keep the water dispenser in a dry place away from direct sunlight. Do NOT use outdoors.
• Install and use only on a hard, flat and level surface.
• Do NOT place the water dispenser in an enclosed space or cabinet.
• Do NOT operate the dispenser in the presence of explosive fumes.
• Use only properly grounded outlets.
• Do not use an extension cord.
• Always grasp the plug and pull straight out from the outlet. Never unplug by pulling on the power cord.
• Do NOT use the dispenser if the cord becomes frayed or otherwise damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• To protect against electric shock, do NOT immerse cord, plug, or any other part of the dispenser in water or other liquids.
• Ensure the water dispenser is unplugged prior to cleaning.
• Never allow children to dispense hot water without proper and direct supervision. Unplug the unit to prevent unsupervised use by children.
• Service should be performed only by a certified technician.
• The appliance must not be cleaned by a water jet and is not suitable for installation in an area where a water jet could be used.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• This appliance should work under environment of temperatures from 4°C~40°C (39°F~104°F) and humidity ≤90%.
• Never turn the machine upside down or lean it more than 45°.
• After turning the dispenser off, allow the dispenser to sit idle for 3 minutes before turning on again.

Intended Use

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments.
• Farm houses.
• Hotels, motels, and other residential-type environments.
• Bed-and-breakfast-type environments.
• Catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
