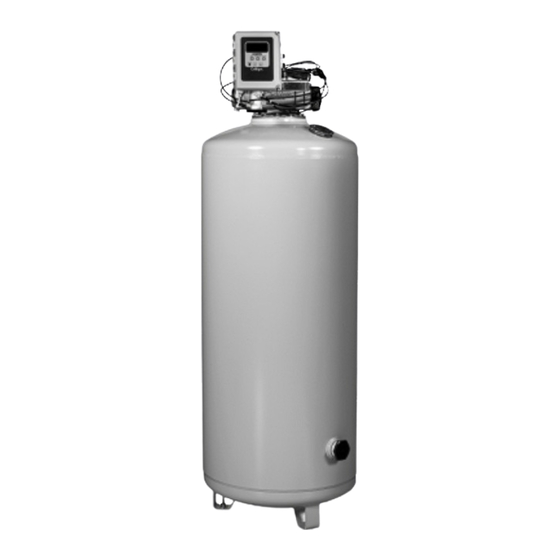

Culligan's Hi-Flo
®
Standard Features
• 24 Volt Culligan's MVP™ Controller – Field
programmable with a back-lit LCD display and
UL listed 120v/24v transformer.
• Single, Duplex, Triplex, or Quad Configurations
• Regeneration initiation by choice of time clock,
meter or differential pressure switch.
• Carbon Filters – For reduction of organics (flow
rates up to 39gpm), or chlorine (flow rates up to
77gpm).
55e Commercial Filters
• Depth Filters – Flow rates up to 193gpm.
• Top-Mounted Control Valve – Keeps plumbing
connections simple and adaptable. Full flow
porting with rounded orifices and wide-open
cartridges promote good flow characteristics and
low pressure fluctuations.
• Corrosion resistant tanks – Made of low carbon
steel with epoxy interior lining and finish coat
painted exterior.
More
Advertisement
Table of Contents
Related Manuals for Culligan HD-202
Summary of Contents for Culligan HD-202
-
Page 1: Standard Features
Culligan’s Hi-Flo travel centers vehicle wash Standard Features • 24 Volt Culligan’s MVP™ Controller – Field programmable with a back-lit LCD display and UL listed 120v/24v transformer. • Single, Duplex, Triplex, or Quad Configurations • Regeneration initiation by choice of time clock, meter or differential pressure switch. -
Page 2: System Specifications
Certification Products manufactured and marketed by Culligan International Company (Culligan) and its affiliates are protected by patents issued or pending in the United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time, without prior notice. - Page 3 3 Operational, maintenance and replacement requirements are essential for this product to perform as advertised. Service is available through independently operated Culligan dealerships. PERATING Hi-Flo 55 HD-202 HD-242 HD-302 HD-362 HD-423 HD-483 HD-544 HD-604 HD-726 HD-846 @ 10 @ 21 @ 28...
- Page 4 2 Backwash flow rates are based on 10 gpm/ft water temperature or the type of carbon used. 3 Operational, maintenance and replacement requirements are essential for this product to perform as advertised. Service is available through independently operated Culligan dealerships. ILTERS FOR RGANIC...
- Page 5 2 Backwash flow rates are based on 12-14 gpm/ft water temperature or other water conditions. 3 Operational, maintenance and replacement requirements are essential for this product to perform as advertised. Service is available through independently operated Culligan dealerships. ILTERS FOR EDUCTION...
- Page 6 • Hi-Flo ® • CSM • Hi-Flo ® • Hi-Flo ® Trust The Water Experts ® Introducing the Culligan MVP Electronic Controller ® ultifunctional Sequences the regeneration process of water softeners or filtration systems Time, Volume, Aqua-Sensor *or external device ®...
- Page 7 1-800-CULLIGAN ©2003 Culligan International Co. Printed in USA (5/03) MOORE PART NO. 46968 , Aqua-Sensor, www.culligan.com and Hey Culligan Man are trademarks of Culligan International Company. MVP Designed With The Ease ® ® * Aqua-Sensor: Patent # US 5,699,272 ** Progressive Flow: Patent # US 5,060,167 , # US 5,351,199 Check for compliance with state and local laws and regulations.
- Page 8 XLF F For use with IQS Electronic Water Treatment Equipment Controller EGENERATION Product Description The XLF flow sensor package is an input device for the IQS type controller used to measure treated water flow. Flow data then provides one or all of the following functions: Packages are available for use in treated water pipe sizes from 1 inch through 6 inch.
-
Page 9: Flow Sensor
5" thru 8" 10" up 180 psig @ 68 factory for greater *Refer to table for temperature/pressure/ distance requirements installation fitting relationships. Commercial Systems ©2000 Culligan International Co. 1-800-CULLIGAN www.culligan.com DCO 992196 Printed in USA 01/00 SL-0064 Moore Part No. 49004 Maximum 44.0... -
Page 10: Warranty
* The tank must be protected by a vacuum breaker device as described in the unit's operating manual. Damage to the tank caused by vacuum is not covered by this warranty. The unit must be used in operating conditions that conform to Culligan's recommended design guidelines. - Page 11 Hi-Flo 55e CAD File: Hi-Flo 55e Depth Single.dwg...
- Page 12 Hi-Flo 55e CAD File: Hi-Flo 55e Depth Duplex.dwg...
- Page 13 Hi-Flo 55e CAD File: Hi-Flo 55e Depth Triplex.dwg...
- Page 14 Hi-Flo 55e CAD File: Hi-Flo 55e Depth Quad.dwg...
- Page 15 Hi-Flo 55e CAD File: Hi-Flo 55e Carbon Single.dwg...
- Page 16 Hi-Flo 55e CAD File: Hi-Flo 55e Carbon Duplex.dwg...
- Page 17 Hi-Flo 55e CAD File: Hi-Flo 55e Carbon Triplex.dwg...
- Page 18 Hi-Flo 55e CAD File: Hi-Flo 55e Carbon Quad.dwg...
- Page 19 Hi-Flo 55e - Use for Cullsorb Only CAD File: Filt_HF55.dwg...
