Smeg FC40PXNFE Instruction Booklet

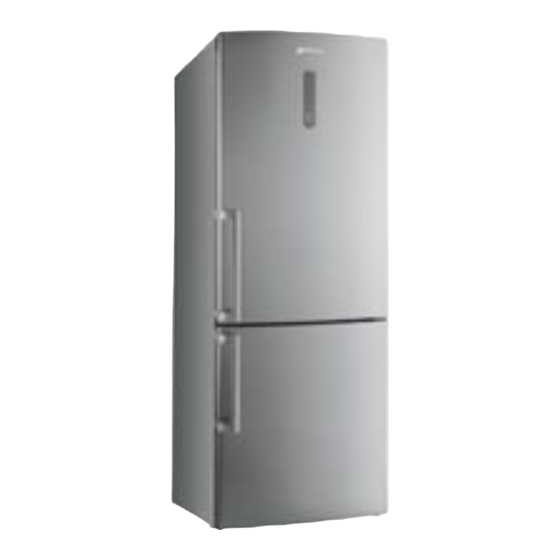

Electronic no-frost combi refrigerator fridge-freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC40PXNFE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smeg FC40PXNFE

Summary of Contents for Smeg FC40PXNFE

  • Page 2: Table Of Contents

    BEFORE USING YOUR REFRIGERATOR ... 2 Information on No-Frost technology ... 2 Safety Information ... 3 Security warnings ... 4 Installation and Operation of your Refrigerator ... 5 Before Starting to Operate Your Refrigerator ... 5 USAGE INFORMATION ... 6 Display and control panel ...

  • Page 3: Before Using Your Refrigerator

    SHIPMENT AND REPOSITIONING ... 23 Tips For Saving Energy ... 26 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ... 27 PART- 1. BEFORE USING YOUR REFRIGERATOR Information on No-Frost technology No-frost refrigerators differ from other static refrigerators in their operating principle. In normal fridges, the humidity entering the fridge due to door openings and the humidity inherent in the food causes freezing in the freezer department.

  • Page 4: Safety Information

    Safety Information • While carrying and positioning the fridge, do not give damage to the cooler gas circuit. • If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. •...

  • Page 5: Security Warnings

    Security warnings Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

  • Page 6: Installation And Operation Of Your Refrigerator

    Installation and Operation of your Refrigerator • The operation voltage of your refrigerator is 220-240 V and 50 Hz. • A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

  • Page 7: Usage Information

    PART- 2. USAGE INFORMATION Display and control panel Use of control panel 1. Indicator and bar of Super Freeze mode 2. Indicator and bar of Super Cool mode 3. Adjustment indicators and bars of freezer. The active setting value will be illuminated. All bars from minimum up to the relative setting value will be illuminated.

  • Page 8: Operating Your Fridge

    Operating your Fridge (See in page 27, pict:1) On / Off button After the appliance is plugged, all symbols will appear for 2 seconds, and then the startup values will appear as -18°C on freezer setting indicator and +4°C on cooler setting indicator. All buttons on the control panel are touch-operated.

  • Page 9: Super Cool Mode

    • After a period of maximum 24 hours after the function is activated, the freezing process will be completed. • Freezer may be adjusted, Super Freeze will be cancelled and the selected setting values will proceed. • Temperature of super cool and cooler may be adjusted. In this case, super freeze mode continues.

  • Page 10: Economy Mode

    Economy Mode Freezer and Cooler operate in the economical conditions that are determined in the control unit. When would it be used? • When you want your fridge to operate economically. How would it be used? • Touch button ECO. •...

  • Page 11: Drink Cool Mode

    • To cancel, you will just need to press on button VACATION. • Your fridge will continue to operate in the previous setting values. Drink Cool Mode When would it be used? • This mode is used to cool the drinks within adjustable time.

  • Page 12: Light Cancelling Mode

    Light Cancelling Mode When would it be used? • If you want to cancel lights of cooler, you can select this mode. • Press on Freezer (F) and Cooler (R) buttons simultaneously, and open and close the cooler door 3 times. The mode will be selected in this way. From now on, the lights will not come on when freezer and cooler doors are opened.

  • Page 13: Cooler Temperature Settings

    Cooler Temperature Settings • Initial temperature value for the Cooler Indicator is +4°C. • Press cooler (R) button once. • When you first push this button, +2°C appears on the setting indicator of the cooler. • W henever you press on this button, one bar comes on cooler bar graphic indicator and lower temperature will be set.

  • Page 14: Warnings About Temperature Adjustments

    Warnings about Temperature Adjustments • Your temperature adjustments will not be deleted when an energy breakdown occurs. • It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency. • Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

  • Page 15: Freezer Box

    Freezer Box The freezer box allows foods are maintained more regularly. Removing The freezer box; • Pull the box out as far as possible • Pull the front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment.

  • Page 16: Fresh Dial

    • W hile this department is used as 0 °C Department, Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. W hen chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...

  • Page 17: Food Placement

    FOOD PLACEMENT PART- 3. Cooling Compartment • To prevent humidification and odor formation, the food should be placed in the refrigerator in enclosed cups or with their top being covered. • The hot food and drinks should also be cooled in the room temperature before being placed in the refrigerator.
  • Page 18 • Please do not place the food you shall newly freeze nearby the already frozen food. • You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once. •...
  • Page 19 Meat and fish Steak Wrapping in a foil Lamb meat Wrapping in a foil Veal roast Wrapping in a foil Veal cubes In small pieces Lamb cubes In pieces Minced meat In packages without using spices Giblets (pieces) In pieces Bologna Should be packaged even if it has sausage/salami...
  • Page 20 Vegetables and Fruits Take the leaves apart, cut the heart into pieces, and Cauliflower leave it in water with a little lemon juice for a while String beans and Wash and cut to small beans pieces Beans Hull and wash Mushroom and Wash and cut to small asparagus...
  • Page 21 Dairy Products Pastry Packet (Homogenize) In its own packet Milk Cheese-excluding In slices white cheese Butter, margarine In its package Albumen Some salt or sugar is Egg mixture added for preventing it (Albumen – yolk) from becoming dense. Some salt or sugar is Yolk added for preventing it from becoming dense.

  • Page 22: Cleaning And Maintenance

    PART- 4. CLEANING AND MAINTENANCE • Make sure you have disconnected the plug from the socket before starting the cleaning. • Please do not clean the refrigerator by pouring water in it. • You may wipe the inner and outer parts of your device by using warm and soapy water with a soft cloth or sponge.

  • Page 23: Replacing The Light Bulb

    Replacing The Light Bulb Replacing the Refrigerator Light Bulb (If the illumination is occured via lamp ) 1. Unplug the unit from the power supply, 2. Remove the screws on each side of the refrigerator lamp cover(A). 3. Change the light bulb (B) with a new one (not more than 15 Watt) 4.

  • Page 24: Before Calling The Service

    SHIPMENT AND REPOSITIONING PART- 5. • Original package and foam may be kept for re-transportation (optionally). • You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation. •...
  • Page 25 If your refrigerator does not operate; • Is there a power failure? • Is the plug connected to the socket correctly? • Is the fuse of the socket to which the plug is connected or the main fuse blown? • Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.
  • Page 26 • Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidification.
  • Page 27 Tips For Saving Energy 1– Install the appliance in a coll, well vantilated room , but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate. 2– Allow ward food and drinks to cool down outside the appliance. 3–...
  • Page 28 THE PARTS OF THE APPLIANCE AND THE PART- 7. This figure has been drawn for information purposes about parts and accessories of the appliance. Parts may vary according to the model of the appliance. 1) On/Off Button 2) Light Sensor 3) Cooler Glass Shelf 4) Crisper Cover 5) Odor filter...
