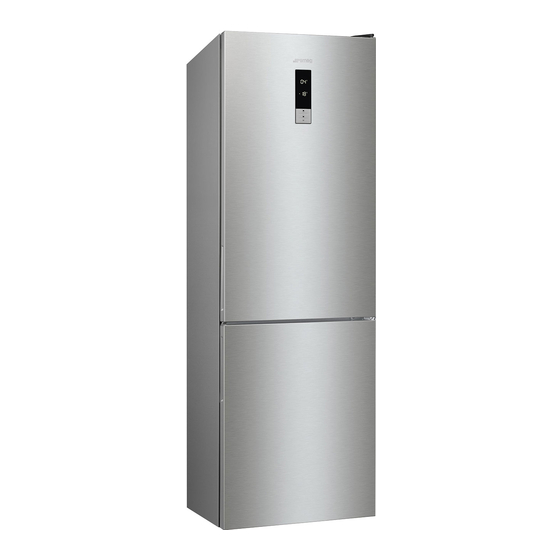

- Page 1 Fridge - Freezer / User Manual Congelatore - Frigorifero / Manuale per l’uso FC60EN3XL...
- Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................5 1.1 General Safety Warnings ....................5 1.2 Installation warnings .......................9 1.3 During Usage........................9 2 DESCRIPTION OF THE APPLIANCE ............11 2.1 Dimensions ........................12 2.2 Information about New Generation Cooling Technology ..........13 2.3 Display and Control Panel ....................13 2.4 Operating Your Fridge Freezer ..................14 2.4.1 Super Freeze Mode ....................14 2.4.2 Super Cool Mode.......................14... - Page 4 7 TIPS FOR SAVING ENERGY ................ 30 8 TECHNICAL DATA ..................31 9 INFORMATION FOR TEST INSTITUTES ............ 31 10 CUSTOMER CARE AND SERVICE ............31 EN - 4...
-
Page 5: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. - Page 6 natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
- Page 7 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 8 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...
-
Page 9: Installation Warnings
1.2 Installation warnings • Do not cover the body or top of fridge freezer with lace. This will affect the Before using your fridge freezer for the first performance of your fridge freezer. time, please pay attention to the following •... - Page 10 Packaging and the Environment • Do not place explosive or flammable material in your fridge. Place drinks with Packaging materials protect high alcohol content vertically in the your machine from damage that fridge compartment and make sure their may occur during transportation. tops are tightly closed.
-
Page 11: Description Of The Appliance
2 DESCRIPTION OF THE General notes: Fresh Food Compartment (Fridge): Most APPLIANCE efficient use of energy is ensured in the configuration with the drawers in the bottom This appliance is not intended to be used part of the appliance, and shelves evenly as a built-in appliance. -
Page 12: Dimensions
2.1 Dimensions Overall dimensions 2010,0 595,0 650,0 the height, width and depth of the appliance without the handle. Overall space required in use 981,6 Space required in use 1243,5 2160,0 the height, width and depth of the 695,0 appliance including the handle, plus the space necessary for free 744,1 circulation of the cooling air, plus... -
Page 13: Information About New Generation Cooling Technology
USING THE APPLIANCE 2.3 Display and Control Panel 2.2 Information about New Generation Cooling Technology Fridges with new-generation cooling technology have a different operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. -
Page 14: Operating Your Fridge Freezer
2.4 Operating Your Fridge Freezer Notes: • Maximum amount of fresh food (in Lighting (If available) kilograms) to be frozen within 24 hours is When the product is plugged in for the shown on the appliance label. first time, the interior lights may turn on 1 •... -
Page 15: Economy Mode
2.4.3 Economy Mode • To cancel, you will just need to press on mode button. Purpose 2.4.4 Holiday Mode Energy savings. During periods of less frequent use (door opening) or absence How Would It Be Used? from home, such as a holiday, Eco program can provide optimum temperature whilst saving power. -
Page 16: Drink Cool Mode
2.4.5 Drink Cool Mode 2.4.6 Screen Saver Mode Purpose Purpose This mode is used to cool drinks within an This mode saves energy by switching off all adjustable time frame. control panel lighting when the panel is left inactive. How Would It Be Used? How to Use? •... -
Page 17: The Child Lock Function
2.4.7 The Child Lock Function 2.5 Temperature Settings Purpose 2.5.1 Freezer Temperature Settings Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings. Activating Child Lock • The initial temperature value for the freezer setting indicator is -18°C. -
Page 18: Cooler Temperature Settings
2.5.2 Cooler Temperature Settings Freezer Cooler Remarks Compartment Compartment Must be used when you wish to freeze food in a short period of time. These temperature settings must be used when the environmental C, -20 temperature is C or high or if you think the refrigerator compartment is not cool enough... -
Page 19: Accessories
2.7 Accessories • A 5 minute delay function is applied to prevent damage to the compressor Visual and text descriptions in the of your appliance when connecting accessories section may vary according or disconnecting to mains, or when to the model of your appliance. an energy breakdown occurs. -
Page 20: The Chill Drawer (In Some Models)
Removing the freezer box: 2.7.4 The Fresh Dial (In some models) • Pull the box out as far as possible (The images are representative) • Pull the front of the box up and out Carry out the opposite of this operation when refitting the sliding compartment. -
Page 21: Adjustable Door Shelf (In Some Models)
2.7.5 Adjustable Door Shelf (In some 2.7.6 Adjustable Glass Shelf (In some models) models) Six different height adjustments can be Adjustable glass shelf mechanism provides made to provide storage areas that you higher storage spaces with a simple need by adjustable door shelf. movement. -
Page 22: Maxi-Fresh Preserver (If Available)
3 FOOD STORAGE 2.7.8 Maxi-fresh preserver (If available) Maxi Fresh Preserver technology helps to remove ethylene gas (a 3.1 Refrigerator Compartment volatile organic compound For normal operating conditions, set the released naturally from fresh temperature of the cooler compartment to foods) and unpleasant odors +4 or +6 from the crisper. -
Page 23: Freezer Compartment
• Do not put food in front of the air flow Maximum How and where to Food passage. storage time store • Consume packaged foods before the Butter and On the designated 1 week recommended expiry date. margarine door shelf Do not allow food to come into contact with Bottled Until the... - Page 24 • When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged. • Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible. •...
- Page 25 The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment. Maximum storage time Meat and fish Preparation (months) Steak Wrap in foil 6 - 8 Lamb meat Wrap in foil 6 - 8 Veal roast...
-
Page 26: Cleaning And Maintenance
Maximum storage time Vegetables and Fruits Preparation (months) Strawberry and Wash and hull 8 - 12 Blackberry Cooked fruits Add 10 % of sugar to the container Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum storage time Thawing time at room Thawing time in oven (months) -
Page 27: Defrosting
5 SHIPMENT AND 4.1 Defrosting REPOSITIONING 5.1 Transportation and Changing Positioning • The original packaging and foam may be kept for re-transportation (optional). • Fasten your appliance with thick water tray packaging, bands or strong cords and follow the instructions for transportation •... -
Page 28: Before Calling After-Sales Service
6 BEFORE CALLING AFTER-SALES SERVICE Errors Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators. ERROR TYPE MEANING WHAT TO DO... - Page 29 ERROR TYPE MEANING WHAT TO DO 1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct Likely to occur after: temperature.
- Page 30 7 TIPS FOR SAVING ENERGY There is a build-up of humidity inside the appliance 1. Install the appliance in a cool, well- Check if: ventilated room, but not in direct sunlight • All food is packed properly. Containers and not near a heat source (such as a must be dry before being placed in the radiator or oven) otherwise an insulating appliance.
- Page 31 The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. Visit our website to: https://www.smeg.com/info/download- manual EN - 31...
