Matatakitoyo Torque Tools FTT Operation Manual

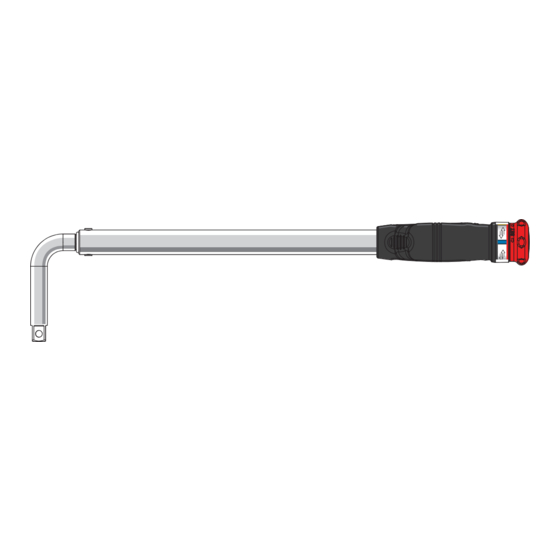

L-Shaped Adjustable Torque Wrench
Multi Pre-Set Type
OPERATION MANUAL
TORQUE 1/2"
Tube
BEFORE STARTING
1. Study this instruction before use.
2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has
an accuracy of C.W. ±4% .
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not continuously apply force after hearing the clicking sound or feel shock.
8. Do not use any kind of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Do not immerse grease inside ratchet head. It may cause unexpected damage.
10. Use special care at minimum torque setting.
11. Please wear gloves and goggles when working.
WARNING
HOW TO USE
Choose a qualified socket
After all the nuts are installed, use a torque wrench to tighten the screws one by one in the order.
1
4 holes
3
4
2
1
5 holes
3
4
5
2
LIGHT BLUE
WHITE
GREY
BLUE
YELLOW
Grip Hand Force
Insert square drive securely to the socket.
Main Scale
Knob
CONTENTS
Torque wrench
Supplied in a plastic box.
Do not continuously apply force after
hearing the clicking sound or feel shock.
Models covered
FTT
Manual
STOP
CLICK
