Matatakitoyo Torque Tools DTP-80N Operation Manual

Adjustable Torque Ｗｒ ｅ ｎ ｃ ｈ
OPERATION MANUAL
3/8" 1/2" 3/4"
TORQUE
Insert Gear
BEFORE STARTING
1. Study this instruction before use.
2. This torque wrench as calibrated and tested before leaving the factory is certified to meet the current standard specification and has
an accuracy of C.W. ±4% / C.C.W. ±6%.
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTERNERS ONLY.
DO NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Over torque will cause tool damage and personal injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result of losing accuracy and void the warranty.
7. Do not continuously apply force after hear click or feel shock.
8. Do not use any format of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Do not immerse grease inside ratchet head. It may cause unexpected damage.
10. Use special care at minimum torque setting.
11. Please wear gloves and goggles when working.
WARNING
HOW TO USE
CLICK
PUSH
CLOCKWISE CLICK
FOR RIGHT THREAD NUT
Choose quality socket
Insert square drive securely to the socket.
1"
Tube
CLICK
PUSH
ANTI-CLOCKWISE CLICK
FOR LEFT THREAD NUT
Main Scale Graduation Scale
Grip
CONTENTS

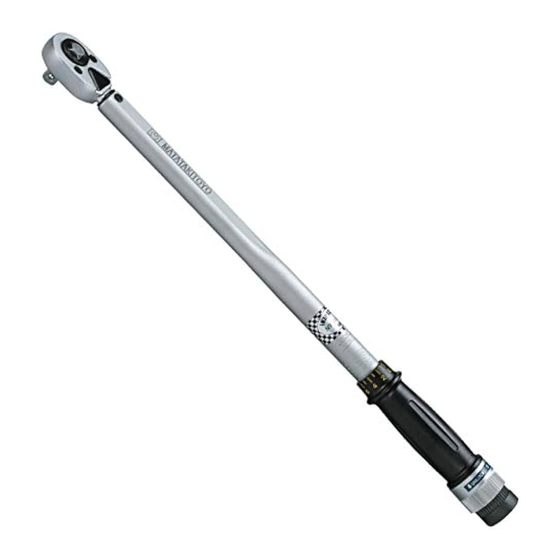

Torque wrench
Supplied in a plastic box.
STOP
Do not continuously apply force after hear
click or feel shock.
Models covered
DTP
Lock Ring
Hand Force
Manual
CLICK
