Matatakitoyo Torque Tools INS2 Operation Manual

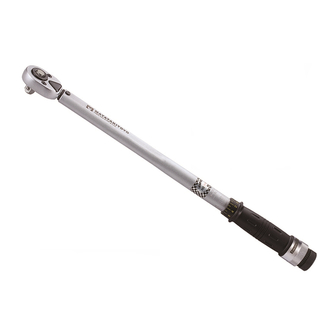

Insulated Torque Wrench, Click Type
OPERATION MANUAL
TORQUE 3/8" 1/2"
Quick Release

BEFORE STARTING

1. Study this instruction before use.
2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has
an accuracy of C.W.±4%.
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not continuously apply force after hearing the clicking sound or feel shock.
8. Do not use any kind of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Do not immerse grease inside ratchet head. It may cause unexpected damage.
10. Use special care at minimum torque setting.
11. This tool should be visually inspected before use.
12. Please wear gloves and goggles when working.
WARNING

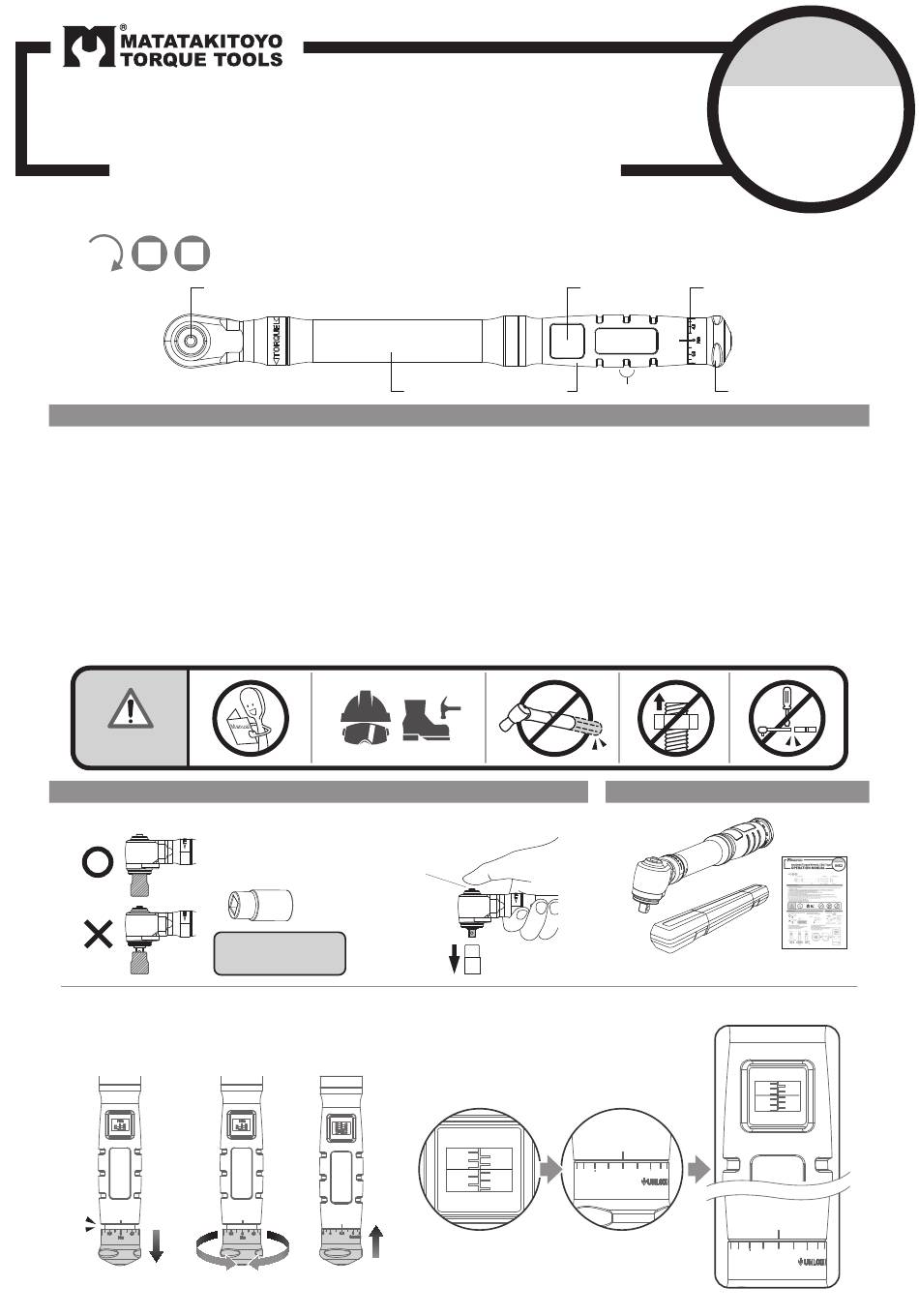

HOW TO USE

Insert square drive securely to the socket.
Choose a qualified
insulated socket
1. Pull the knob to unlocked.
2. Turn the knob clockwise or counter-clockwise
(Right or left) to set the desired torque.
3. Push the knob to set finished.
1 2
Unlock
Set
Tube
Quick release button design.
Push the button to release socket.
PUSH
For example : ITEM NO. INS2-100N
To set torque to 58.5 Nm.
Red line of main scale need to reach 55 Nm (see A)
and adjust graduation scale to 3.5 Nm (see B).
Then 55+3.5=58.5Nm.(see C)
3
A
35
45
55
65
75
85
Lock
Main Scale
Grip Hand Force
CONTENTS
Torque wrench
35
40
45
50
55
60
65
70
75
80
85
Supplied in a plastic box.
B
30
40
50
60 4.5 4 3.5 3 2. 5
70
80
Models covered
INS2
Graduation Scale
Knob
Manual
30
35
40
45
50
55
60
65
70
75
80
85
30
35
40
45
50
55
60
65
C
70
75
80
85
4.5 4 3.5 3 2. 5
