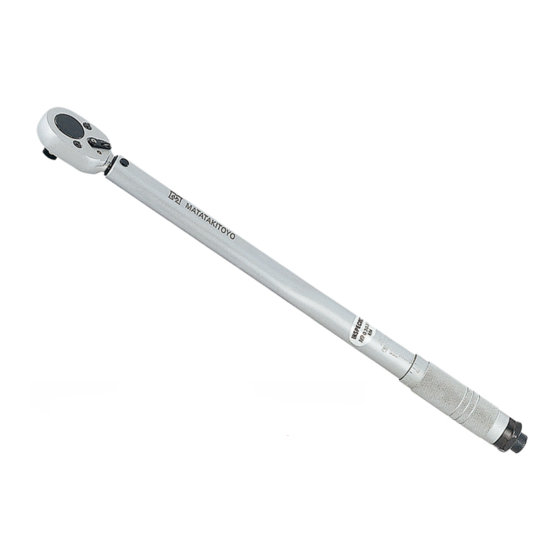

Adjustable Torque Ｗrench
OPERATION MANUAL
1/4"
3/8"
1/2"
TORQUE
Quick Release
Ratchet Lever
BEFORE STARTING
1. Study this instruction before use.
2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has
an accuracy of C.W.±4% / C.C.W.±6%.
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not continuously apply force after hearing the clicking sound or feel shock.
8. Do not use any kind of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Do not immerse grease inside ratchet head. It may cause unexpected damage.
10. Use special care at minimum torque setting.
11. Please wear gloves and goggles when working.
WARNING
HOW TO USE
Position of ratchet lever for clockwise/counter-clockwise tightening.
left
right
center
Insert square drive securely to the socket.
Quick release button design.
Push the button to release socket.
Main Scale
Tube
Choose a qualified socket
PUSH
Graduation Scale
Lock Ring
CONTENTS
Torque wrench
Supplied in a plastic box.
The head can be flexible in 15 degrees
bidirectional range.
STOP
CLICK
Do not continuously apply force after hearing the clicking
sound or feel shock.
Models covered
HPR
Grip
Hand Force
Manual
Advertisement
Table of Contents
Related Manuals for Matatakitoyo Torque Tools HPR
Summary of Contents for Matatakitoyo Torque Tools HPR

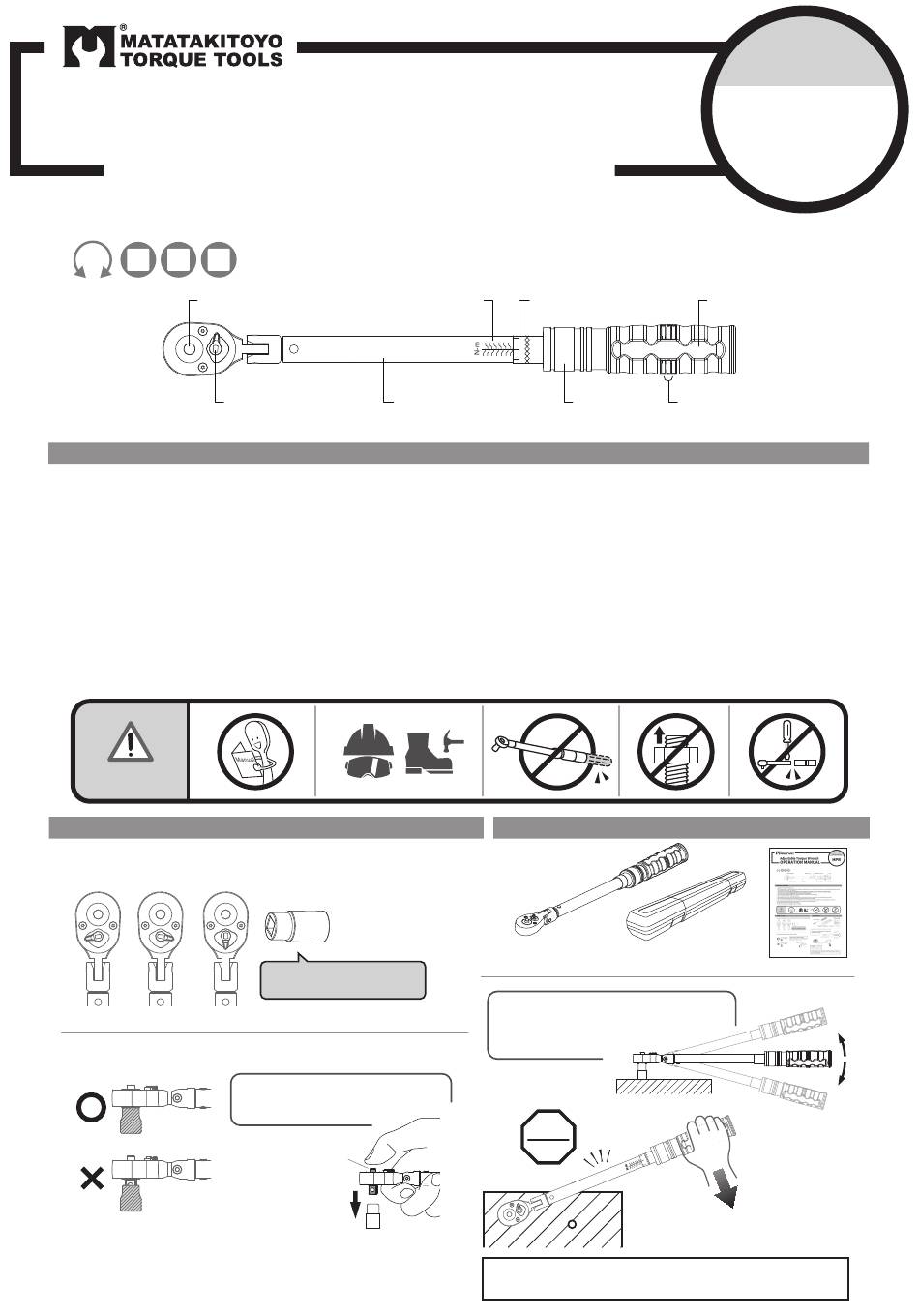

- Page 1 Models covered Adjustable Torque Ｗrench OPERATION MANUAL 1/4” 3/8” 1/2” TORQUE Quick Release Main Scale Graduation Scale Grip Ratchet Lever Tube Lock Ring Hand Force BEFORE STARTING 1. Study this instruction before use. 2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has an accuracy of C.W.±4% / C.C.W.±6%.
- Page 2 HOW TO SET TORQUE VALUE 1. Pull the lock ring to unlocked. For example : ITEM NO. HPR-210N 2. Turn the grip clockwise or counter-clockwise To set torque to 135 Nm. Firstly pull and hold the lock ring, turn the grip (Right or left) to set the desired torque.
