RocwooD RWEM32 Original Instructions Manual

32cm 1200w electric lawnmower
Hide thumbs

Advertisement

Quick Links

Download this manual

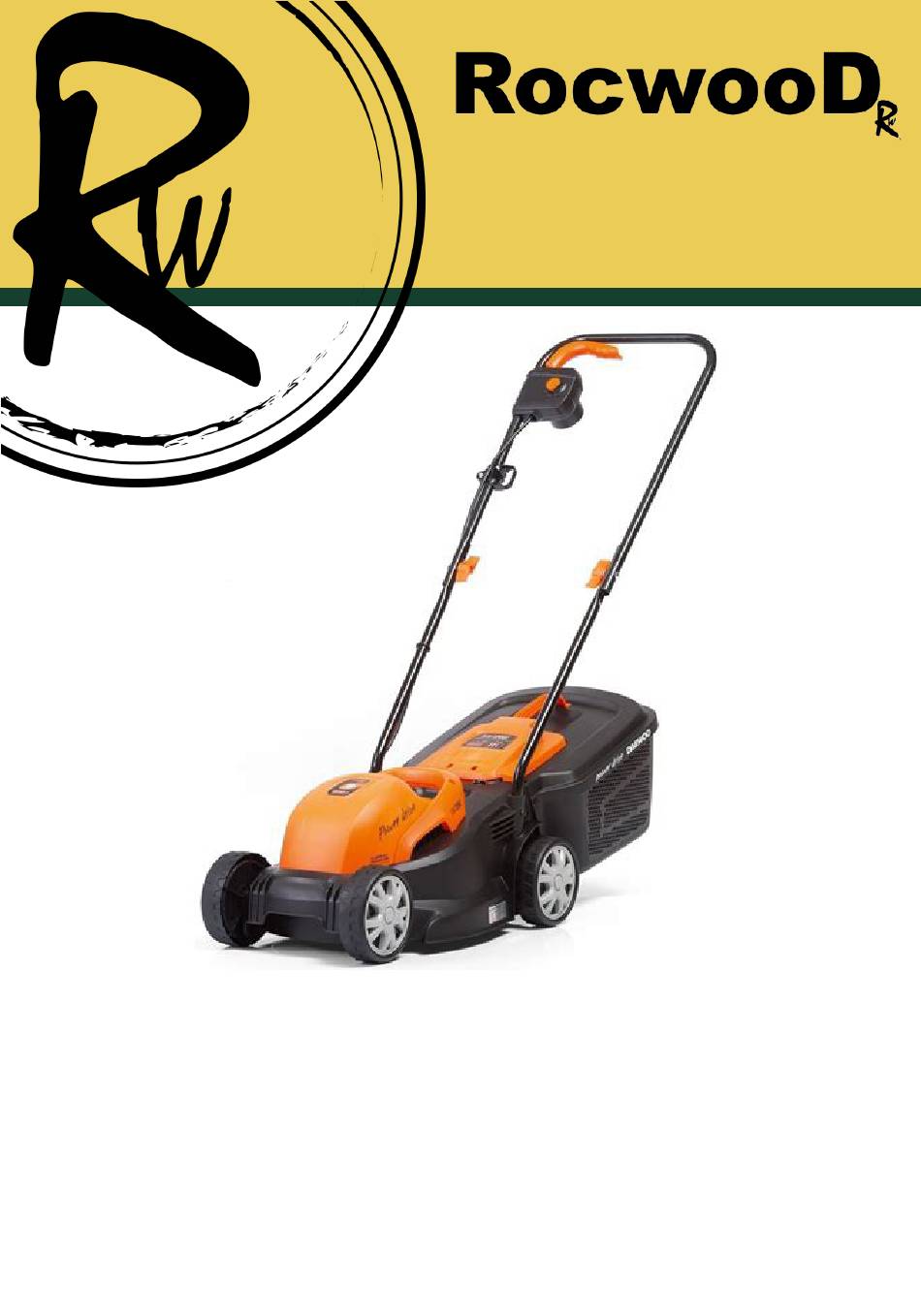

32cm 1200W Electric
Lawnmower
RWEM32
en - Original Instructions
ASSEMBLY REQUIRED
Minimum Two Persons
Save these instructions
Before use please read & understand this manual; paying particular attention to the safety instructions before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement
determines the right to make modifications without prior warning.
Images are used for illustration purposes only.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RWEM32 and is the answer not in the manual?

Questions and answers

Related Manuals for RocwooD RWEM32

Summary of Contents for RocwooD RWEM32

  • Page 1 32cm 1200W Electric Lawnmower RWEM32 en - Original Instructions ASSEMBLY REQUIRED Minimum Two Persons Save these instructions Before use please read & understand this manual; paying particular attention to the safety instructions before use. Incorrect use of the product could put the operator or machine in danger.
  • Page 2 Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from RocwooD LTD. In all cases this copyright notice must remain intact.
  • Page 3 CONTENTS SPECIFICATION IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS KNOW YOUR MACHINE ASSEMBLY OPERATION MAINTENANCE & STORAGE TROUBLESHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY INTENDED USE This machine is to be used exclusively for cu ng natural grass in private homes and hobby gardens. Never use the machine for other purposes.
  • Page 4 INSTRUCTION MANUAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its applica on and limita ons as well as the specific poten al hazards. Retain these instruc ons for future reference. The operator is responsible for following the warnings & instruc ons in this manual and on the produc t. Read &...
  • Page 5 GENERAL SAFETY RULES Before you put the machine into opera on , you must read this instruc on manual. When using this machine, observe the following safety instruc ons to exclude the risk of personal injury or material damage. Please also observe the special safe ty instruc ons in the respective chapters. Where applicable, follow the legal direc ves or regula ons for the preven on of accidents in rela on to the use of this machine.
  • Page 6 INSTRUCTION MANUAL SAFETY INSTRUCTIONS 1. Operate in daylight or good artficial lighting. If possible, do not use on overly wet ground. 2. Ensure good stability on slopes. 3. Be particularly careful if changing direction of travel on the slope . 4.
  • Page 7 14. Maintain your machine. Check for misalignment or binding of moving parts, breakage of parts & any other condi on that may affect the opera on. If damaged, have the machine repaired by an Approved Service Dealer immediately. Many accidents are caused by poorly maintained machines.
  • Page 8 INSTRUCTION MANUAL SPECIFICATIONS Model RWEM32 Motor - Rated Power 1200W Motor - Rated Voltage 230-240V ~50Hz Cu ng Width 32 cm Height of Cut 25-45-65 mm Height Adjustments Grassbox Capacity Electrical Cable Length Guaranteed Sound Power Leve l 96 dB(A) Vibra on 10.0 m/s...
  • Page 9 KNOW YOUR MACHINE 1. Trigger 2. Grassbox Top 3. Safety Bu on 4. Grassbox 5. Top Handle 6. Wheel 7. Cable Tidy 8. Grassbox Flap 9. Handle Fixing Knob 10. Motor Housing 11. Lower Handle 12. Deck...
  • Page 10 INSTRUCTION MANUAL ASSEMBLY ASSEMBLY/PRE - OPERATION This manual gives instruc ons on the correct assembly and safe use of your machine. It is important that you read these instruc ons carefully. If necessary, obtain assistance to remove from packaging, take care when carrying the mower to the lawn, as the blades are sharp.
  • Page 11 3. Ensure the clips on trigger assembly (3A) are in posi on to lock it to the top handle, indica on line (3B) aligned, the trigger assembly is now assembled (3C). 4. Once a ached, a empt to move the trigger assembly downwards to confirm if secure. HANDLE ASSEMBLY 1.
  • Page 12 INSTRUCTION MANUAL 3. A ach the upper handle with bolts and handle knob fixings to the lower handles, un l secure (A3). 4. The upper handle is height adjustable. Handles can be fixed in desired posi oⅠ nⅠorⅡ Ⅱ (A4). Note: Ensure that the cable clips are used to fix the cable to the handles.
  • Page 13 FITTING FULLY ASSEMBLED GRASSBOX TO LAWNMOWER 1. Li the rear grass-flap. Make sure the mowers discharge chute is clean and free from debris. 2. Locate fully assembled grassbox onto loca on points at the rear of the deck as illustrated 3.
  • Page 14 INSTRUCTION MANUAL OPERATION STARTING THE MACHINE Ensure the machine is within the working grassed area. Plug the machine into the electric supply, ensuring it meets the recommended requirements. Feed the cable through the cable dy/hook as shown. Press the Safety Bu on (A) and pull the Trigger (B) towards the main handle. The mower will start, and blade immediately rotates.
  • Page 15 MOWING TIPS Under certain condi ons, such as very tall grass, it may be necessary to raise the height of cut to reduce pushing effort, prevent overloading of the motor and leaving clumps of grass clippings. It may also be necessary to reduce ground speed and/or push the lawn mower over the area a second me.
  • Page 16 INSTRUCTION MANUAL BLADE MAINTENANCE The cu ng blade will con nue to rotate a er the motor is switched off. Slicing is possible if care is not taken. Wear appropriate hand coverage. Remove the electric plug from the mains supply. Clean the underside of the deck with a s ff brush, before any maintenance is undertaken to the blade.
  • Page 17 STORAGE For trouble free service, make sure the machine is clean and dry before storing. Please ensure the machine is stored away from direct sunlight. Store indoors or in a safe, locked protected area during severe weather and winter months. If storing for an extended period, inspect, clean and repair the machine if necessary.
  • Page 18 INSTRUCTION MANUAL TROUBLE SHOOTING ISSUE CORRECTION 1. Check the mains connec on cable, plug fuse and circuit breaker. 2. Start on short grass or on an area which has already been mown. 3. Unplug the mower. Clean the discharge chute/housing, the blade must Motor does not run rotate freely.
  • Page 19 Notes...
  • Page 20 INSTRUCTION MANUAL PARTS DIAGRAM...
  • Page 21 PARTS LIST Item No. Name Item No. Name Upper Handle Belt 5PJ416 Wheel Trim Upper Fixing Star Lock Dome Washer Lower Fixing Nut M5 Wheel Bolt 8x20/8.8 Cable Hook Washer Ø8×Ø21×1.5 Bolt M5×16 Blade Screw ST4x16F Front Axle Switch Box Lower Deck Trigger Rear Axle...
