Summary of Contents for RocwooD RWLM20-33

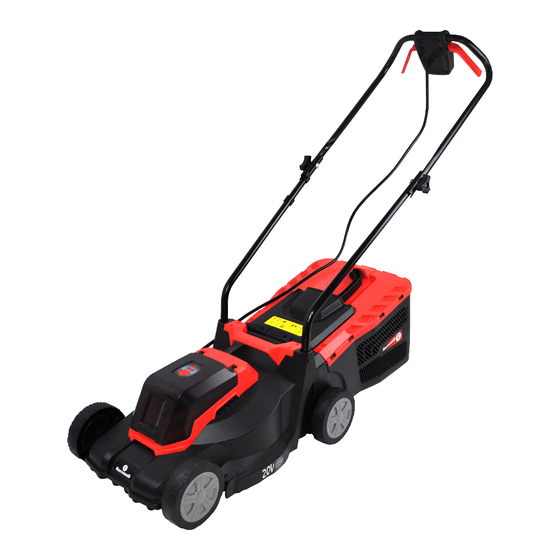

- Page 1 CORDLESS LAWN MOWER RocwooD INSTRUCTION MANUAL RWLM20-33 WWW.ROCWOOD.CO.UK...
- Page 2 Symbols The following symbols and signal words are used in this user manual, on the lawn mower or on the packaging. Meaning of symbols used on the product: 1. Sound power level 2. WARNING- Beware of thrown objects - keep bystanders away. 3.
-
Page 3: General Power Tool Safety Warnings
General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. 4) Power tool use and care a) Do not force the power tool.
-
Page 5: Lawnmower Safety Warnings
Lawnmower safety warnings a) Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. b) Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation. - Page 6 Instructions for use Part designation Grip handle Battery compartment cover Upper handlebar Grass catcher Wire clip wheel Control cable wheel cover Lower handlebar Safety lock-off switch Knob Start lever Carry handle Safety key Transport handle...
- Page 7 Assembly Install handlebars Slide the lower push bar into the opening provided and secure with the accessory screws as shown in figure a. On the other side it is done similarly. Use the tension knob to attach the lower push frame and the upper push frame as shown in figure b Install the grass catcher Assemble the left and right shells of the grass catcher cage as shown in figure c until the buckle is fully in place as shown in figure d.
-
Page 8: Adjust The Cutting Height
Conditions a) Only mow in daylight or with good artificial lighting. b) If possible, avoid using the machine on wet grass. c) Do not mow on excessively steep slopes. d) never mow while people, especially children, or animals are in the vicinity. Operating instructions Adjust the cutting height WARNING! -
Page 9: Operation
Operation WARNING! To prevent unintentional switching on, the lawnmower is equipped with an on-switch lock (Figure j/Pos.1), which must be pressed before the shift lever (Figure j/Pos.2 ) can be pressed. When the lever is released, the lawnmower is switched off. Perform this process a few times to make sure your device is working correctly. Before performing any repair or maintenance work on the device, make sure that the blade does not rotate and that the devices battery has been removed. -
Page 10: Technical Data
Lift the ejection flap with one hand and hold the bag by the handle with the other hand and hang it from above. Technical data RWLM20-33 Power supply: 20V d.c. - Page 11 When installing the new blade, please pay attention to the installation direction of the blade. Then tighten the fastening screw again. The tightening torque should be about 25 Nm. Maintenance There are no other parts to maintain inside the unit. Ordering spare parts: When ordering spare parts, the following information should be provided;...
- Page 12 Safety instructions for charging the battery The battery is slightly precharged at the factory. Charge the battery completely before first use. The battery heats up during charging and heavy use of the product. Always let the battery cool down to room temperature after or before charging.
-
Page 13: Cleaning And Storage
CLEANING AND STORAGE • Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. • Remove all debris, especially from the ventilation slots. • Always lubricate the cutting blade with protective spray before storage. •... -
Page 14: Declaration Of Conformity
2014/30/EU The Electromagnetic Compatibility Directive 2011/65/EU And (EU)2015/863 Restriction of Hazardous Substances Directive Hereby declare that: Equipment cordless lawn mower Model number RWLM20-33/GY2150 is in conformity with the applicable requirement of the following documents Ref. No. EN 62841-1:2015 + A11:2022...
