DEADFRONT KNOCKOUT REMOVAL INSTRUCTIONS

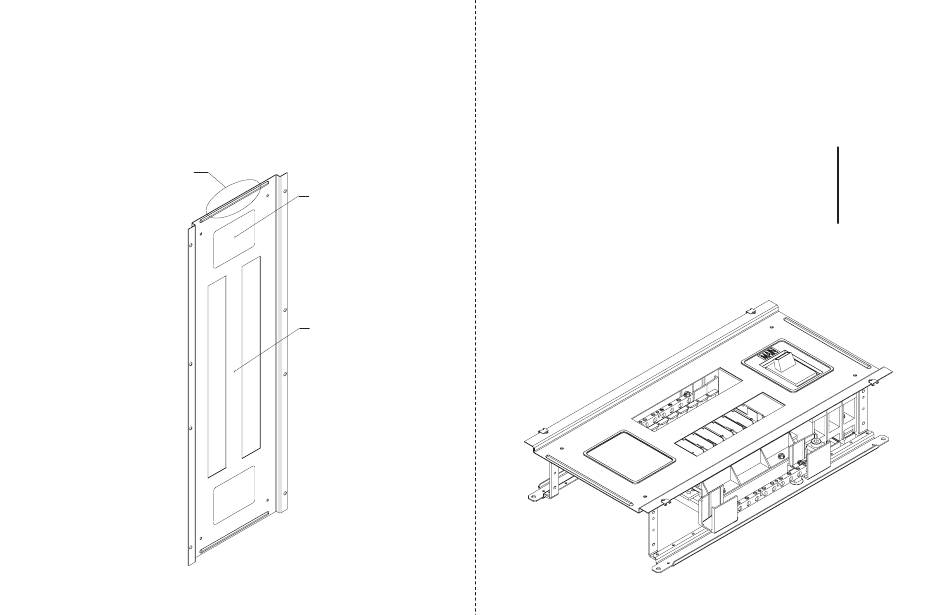

11. Stand the deadfront on the floor with the plate to be

removed in the upper position as shown below.

Grasping the upper edge of the deadfront, strike the

center of the front surface of the knockout plate with a

hammer until two of the plate attachment splices are

broken.

12. Bend the plate back-and-forth about the two remain-

ing attachments until the plate breaks free.

GRASP DEADFRONT

IN THIS AREA

CENTER OF

KNOCKOUT

PLATE

FRONT OF

DEADFRONT

FLOOR

-4-

S1, S2, and P1 Panelboard Kit

MBKFD1 for Main or Subfeed

FD breakers

Installation

Instructions

12-A-1005-01 Rev. 6

Page 1 12. Bend the plate back-and-forth about the two remain- ing attachments until the plate breaks free. S1, S2, and P1 Panelboard Kit GRASP DEADFRONT Installation MBKFD1 for Main or Subfeed IN THIS AREA Instructions CENTER OF KNOCKOUT FD breakers...
Page 2 Installation Instructions The following instructions are for the installation of a Siemens main/subfeed breaker kit for FXD6, FD6, HFXD6, and HFD6 breakers in S1, S2, and P1 Type panelboards. The kit may be installed as a main or a subfeed in panels rated 250 amps or less.
