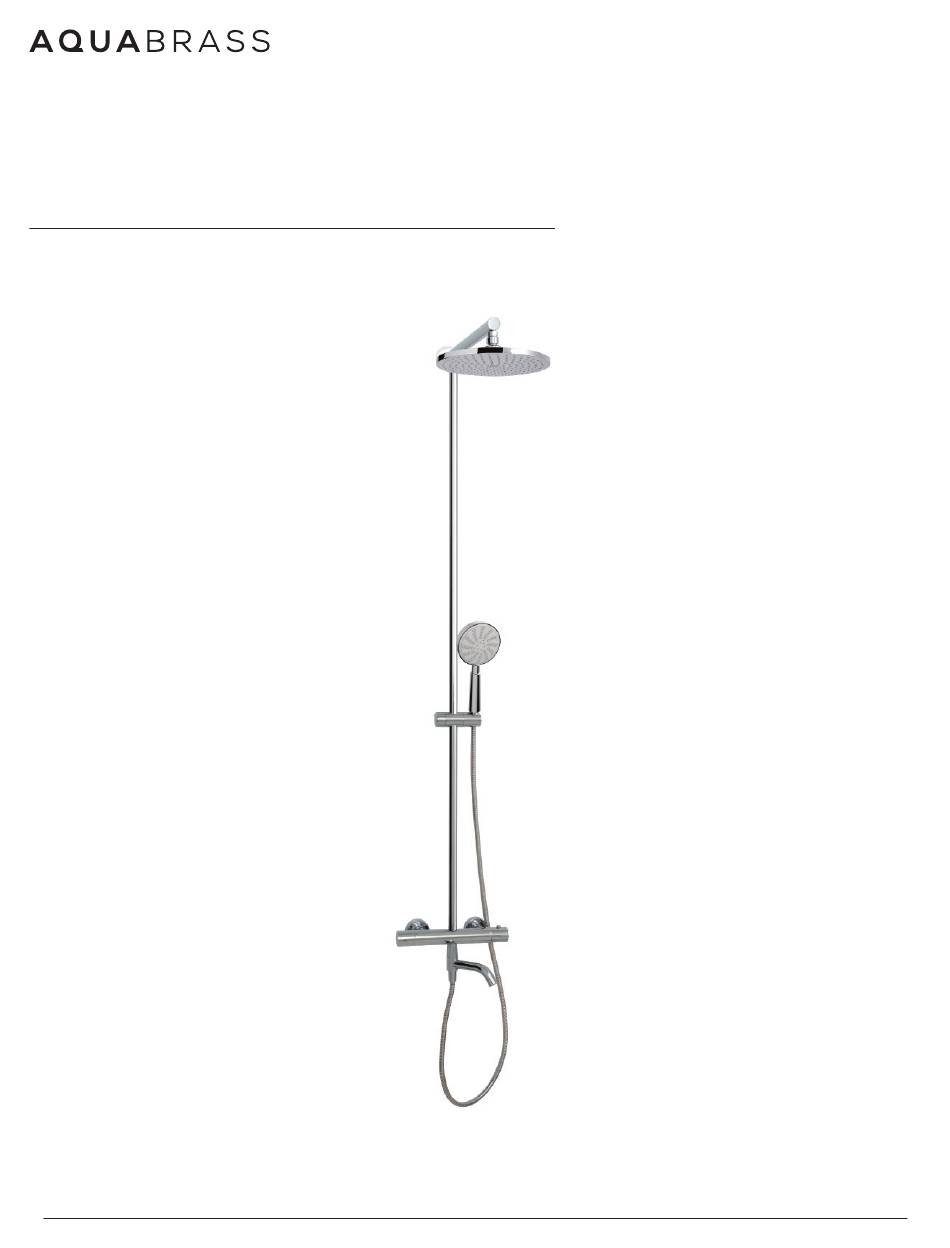

- Page 1 Tila 62335 1/2” thermostatic tub/shower column colonne bain / douche thermostatique 1/2” Installation Guide Guide d’installation aquabrass.com Last revision: 10/24/2019...
- Page 2 Tila 62335 1/2” thermostatic tub/shower column colonne bain / douche thermostatique 1/2” Service Parts / Schéma des pièces Item Code English Français Item Code English Français ALT7-90-551-01 Flange Bride ALT7-90-550-01 Offset elbow Coude de déviation ALT7-905-52-01 Complete tube Tube comple...
- Page 3 Tila 62335 1/2” thermostatic tub/shower column colonne bain / douche thermostatique 1/2” General Dimensions / Dimensions générales [572.00] ø[62.80] 22 1/2” 2 1/2” [11.00] [459.01] 7/16” ø[62.80] 18 1/16” 2 7/16” [225.00] 8 7/8” [385.01] 15 3/16” ø[22.00] 7/8” [1570.00] 61 13/16”...
-
Page 4: General Dimensions
Tila 62335 1/2” thermostatic tub/shower column colonne bain / douche thermostatique 1/2” Flange Braket Crochet de la bride [1570.00] 61 13/16” Finished wall Min. [150.00] 5 7/8” Mur de finition Max. [167.40] 6 9/16” 1/2’’ copper pipes (x4) [30.00] 1 3/16”... -
Page 5: Install The Valve
Tila 62335 1/2” thermostatic tub/shower column colonne bain / douche thermostatique 1/2” Install the flange Position the wall support (3) at distance of 61 13/16" from the center of water pipes (as show Fig.1). Mark the position of three hoses (1) and drill three hoses 1/4". - Page 6 Tila 62335 1/2” thermostatic tub/shower column colonne bain / douche thermostatique 1/2” Install the column Screw two part of tube (7-8) together, insert the bottom of shower column (8) to the valve body (9). Insert the other end of the shower column to the shower arm (4).
-
Page 7: Cartridge Replacement
Tila 62335 1/2” thermostatic tub/shower column colonne bain / douche thermostatique 1/2” Cartridge replacement Starting by shutting off water supply lines. replace cartridge 11), move the all components (from 1 to 5 or 6 to 9). To replace the spout cartridge (12) -
Page 8: Warranty
WARR ANT Y Aquabrass of fers a lifetime warranty against defects in materials and workmanship under normal conditions of use, care and maintenance of the product(s), for as long as the original purchaser owns their home. The warranty applies only when the product is purchased from an authorized Aquabrass dealer. -
Page 9: Garantie
9805 rue Clark Montréal, Québec H3L 2R5 1 888 239-9336 tech@ad-waters.com Pour les demandes internationales : communications@aquabrass.com Aquabrass se réserve le droit de modifier des caractéristiques de ses produits sans avis ni obligation ainsi que de remplacer ou de retirer certains modèles. - Page 10 Adjustment s for specif ic restric tions can be made on most of our lavator y bathroom faucet s in order to coordinate with regional f low rate allowances. A low f low restric tor is sold at $10 per unit . Please contac t your local Aquabrass representative for additional details.
-
Page 11: Autres Informations
Net toyer ces résidus en tout temps avec de l’eau propre, puis sécher. En raison de la nature des finis sur mesure d’Aquabrass et de l’impor tance de les entretenir de manière appropriée, la garantie couvrant les finis sur mesure est de trois (3) ans. Aucun retour n’est accepté pour les finis sur mesure.
