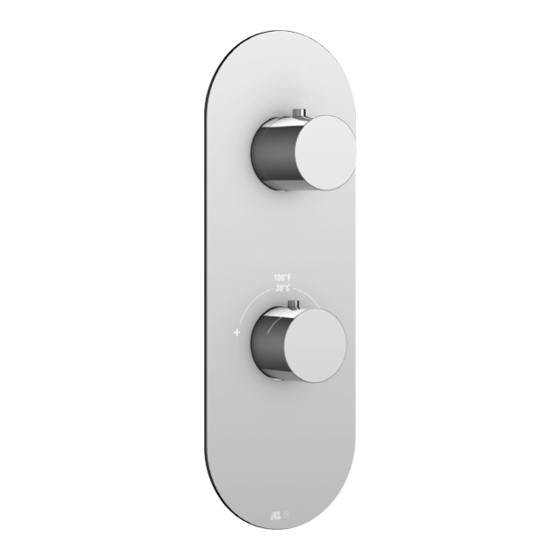

- Page 1 Trim Kit for Demi-Totem 12123 Installation Guide Guide d’installation TRIM KIT for DEMI-TOTEM thermostatic valve 12123 pour la valve thermostatique DEMI-TOTEM 12123 last revision: 26/10/2016 aquabrass.com...
- Page 2 Trim Kit for Demi-Totem 12123 R8295 - 2-way shared functions / 2-voies partage de fonctions R9295 - 2-way 1 function at a time / 2-voies 1 fonction à la fois R8395 - 3-way shared functions / 3-voies partage de fonctions R9395 - 3 way 1 function at a time / 3-voies 1 fonction à...
- Page 3 Trim Kit for Demi-Totem 12123 Service Parts / Schéma des pièces The spare parts in dotted line are provided with the demi totem 12123. Les pièces détachées en pointillé sont fournies avec le demi-totem 12123. Item Code English Français ABST00543 Rectangular trim Plaque décorative rectangulaire...
- Page 4 Trim Kit for Demi-Totem 12123 S8295-S9295-S8395-S9395-R8295-R9295-R8395-R9395 trims / plaques décoratives [107.95] [107.95] 4 1/4” 4 1/4” [45.00] ø 1 3/4” [115.00] [115.00] 4 1/2” 4 1/2” [305.00] [305.00] 12” 12” [45.00] ø 1 3/4” S8295 [3.18] R8295 1/8” last revision: 26/10/2016...
-
Page 5: Installation
Trim Kit for Demi-Totem 12123 Installation Installing the diverter cartridge Installation de la cartouche du déviateur First, shut off the 2 check-valves (1), afterwards, un- screw the large nut (2) and remove the protective plug (3) (see Fig. 1) Insert the diverter cartridge (4) into the valve body as show (Fig. -
Page 6: Installation De La Garniture
Trim Kit for Demi-Totem 12123 Installing the trim kit Installation de la garniture Screw the M24x1 threaded tube (1) back in place and install the broach extension (2). Then, screw the multifunction hub (3) on the threaded tube. Screw the cylinder (4) onto the thermostat rough then put the temperature stop ring (5). -
Page 7: Water Temperature Adjustment
Trim Kit for Demi-Totem 12123 Water temperature adjustment Réglage de la température de l’eau The highest tempature setting has been factory preset at 120˚F (49˚C). However, the preset temperature can be adjusted by following these steps: Remove the setscrew (4), the handle (5), the screw (3) and volume control handle (2) (See Fig.4). -
Page 8: Maintenance
Trim Kit for Demi-Totem 12123 Maintenance To service the cartridges Entretien des cartouches Shut off the main water supply, then remove all the components from (6) to (19). (See Fig.6). Afterwards, shut off the 2 check valves (1) by turning them clock- wise with a screwdriver. -
Page 9: Entretien
Care Entretien To clean your Aquabrass faucet or accessory, wash with a wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on a regular basis. DO NOT USE ANY ABRASIVE, CHEMICAL OR CORROSIVE, POWDER OR ANY OTHER STRONG CLEANERS INCLUDING DETERGENTS, WINDOW CLEANERS AND DISINFECTANTS ON YOUR Aquabrass PRODUCT as they will destroy the finish and therefore VOID THE WARRANTY. -
Page 10: Garantie Limitée À Vie
- Aquabrass polished chrome and brushed nickel finishes are warranted for the life of the product to the original purchaser. All other finishes will be war- ranted for five years (Satin Nickel Natural [#210] is designed to develop a patina over time). Raw Brass (#400) is a living finish for which there is no warranty Normal wear and tear is not covered by this warranty. - Page 11 Trim Kit for Demi-Totem 12123 last revision: 26/10/2016 aquabrass.com...
