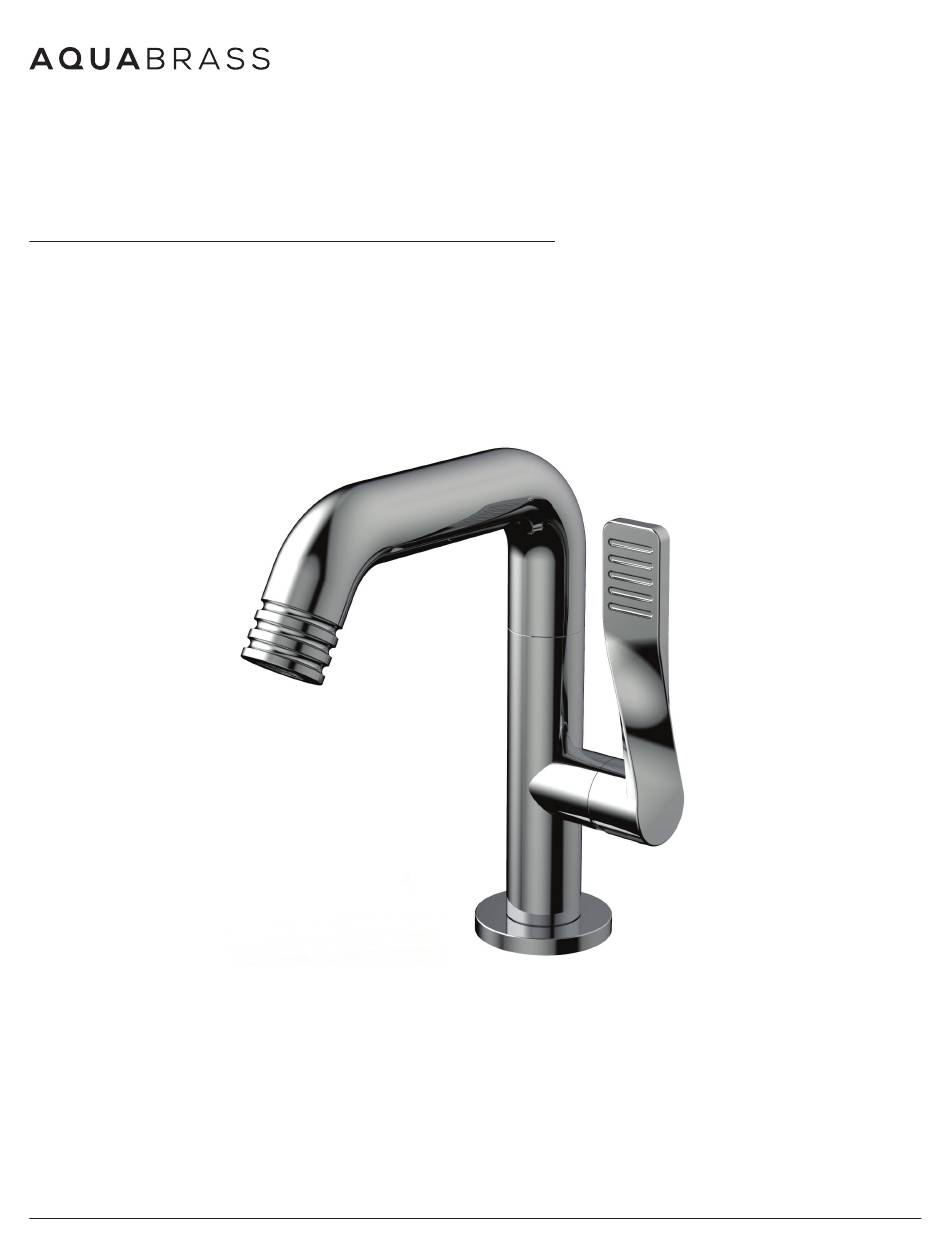

- Page 1 Tubo 12014 single-hole lavatory faucet robinet de lavabo monotrou Installation Guide Guide d’installation aquabrass.com last revision: 06/11/2020...
- Page 2 Tubo 12014 single-hole lavatory faucet robinet de lavabo monotrou Service parts / Schéma des pièces Item Code English Français Item Code English Français ABAE51998 Aerator Aérateur Dome cap Capuchon en dôme ABFC14674 ABCA66099 Cartridge Cartouche ABFP41021 Tie down kit Ensemble d’attache...
- Page 3 Tubo 12014 single-hole lavatory faucet robinet de lavabo monotrou General dimensions / Dimensions générales [205.00] 8 1/16” [195.00] 7 11/16” [165.00] 6 1/2” [135.00] 5 5/16” [50.00] 2” CAUTION: FOR BEST RESULTS, WE STRONGLY RECOMMEND THE INSTALLATION OF THIS FAUCET BE DONE BY A LICENSED PLUMBER.
- Page 4 Tubo 12014 single-hole lavatory faucet robinet de lavabo monotrou Prepare the faucet Install the faucet Drain installation Préparation du robinet Installation du robinet Installation du drain Fig.1 Fig.2 Fig.3 Insert the tie down kit (1) to the rod. WE RECOMMEND DRILLING A Unscrew the tube (2) and remove the Secure the faucet with the metal nut (2).
- Page 5 Tubo 12014 single-hole lavatory faucet robinet de lavabo monotrou Cartridge replacement Cleaning the aerator Remplacement de la cartouche Nettoyage de l’aérateur Fig.4 Fig.5 To clean the aerator, remove it (1) from Start by shutting off water supply lines the spout with the key supplied (2).
-
Page 6: Warranty
OUR WARR ANT Y ON FINISHES Polished chrome, electro black, stainless steel and PVD finishes carr y a limited lifetime warrant y against defects. All other Aquabrass finishes are warranted for three (3) years. Finishes on drains are not covered by the warrant y, nor the normal wear of any finish. Normal wear and tear is the expected decline in the condition of a product /finish due to normal ever yday use. - Page 7 Adjustment s for specif ic restric tions can be made on most of our lavator y bathroom faucet s in order to coordinate with regional f low rate allowances. A low f low restric tor is sold at $10 per unit . Please contac t your local Aquabrass representative for additional details.
- Page 8 Tubo 12014 single-hole lavatory faucet robinet de lavabo monotrou aquabrass.com last revision: 06/11/2020...
- Page 9 Tubo 12014 single-hole lavatory faucet robinet de lavabo monotrou aquabrass.com last revision: 06/11/2020...
