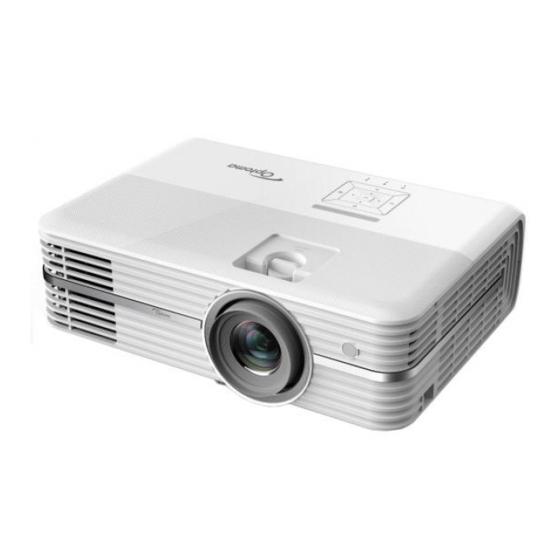

Optoma UHD380x User Manual

Optoma UHD380x User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DLP
Projector
®
User manual

Advertisement

Table of Contents
loading

Related Manuals for Optoma UHD380x

Summary of Contents for Optoma UHD380x

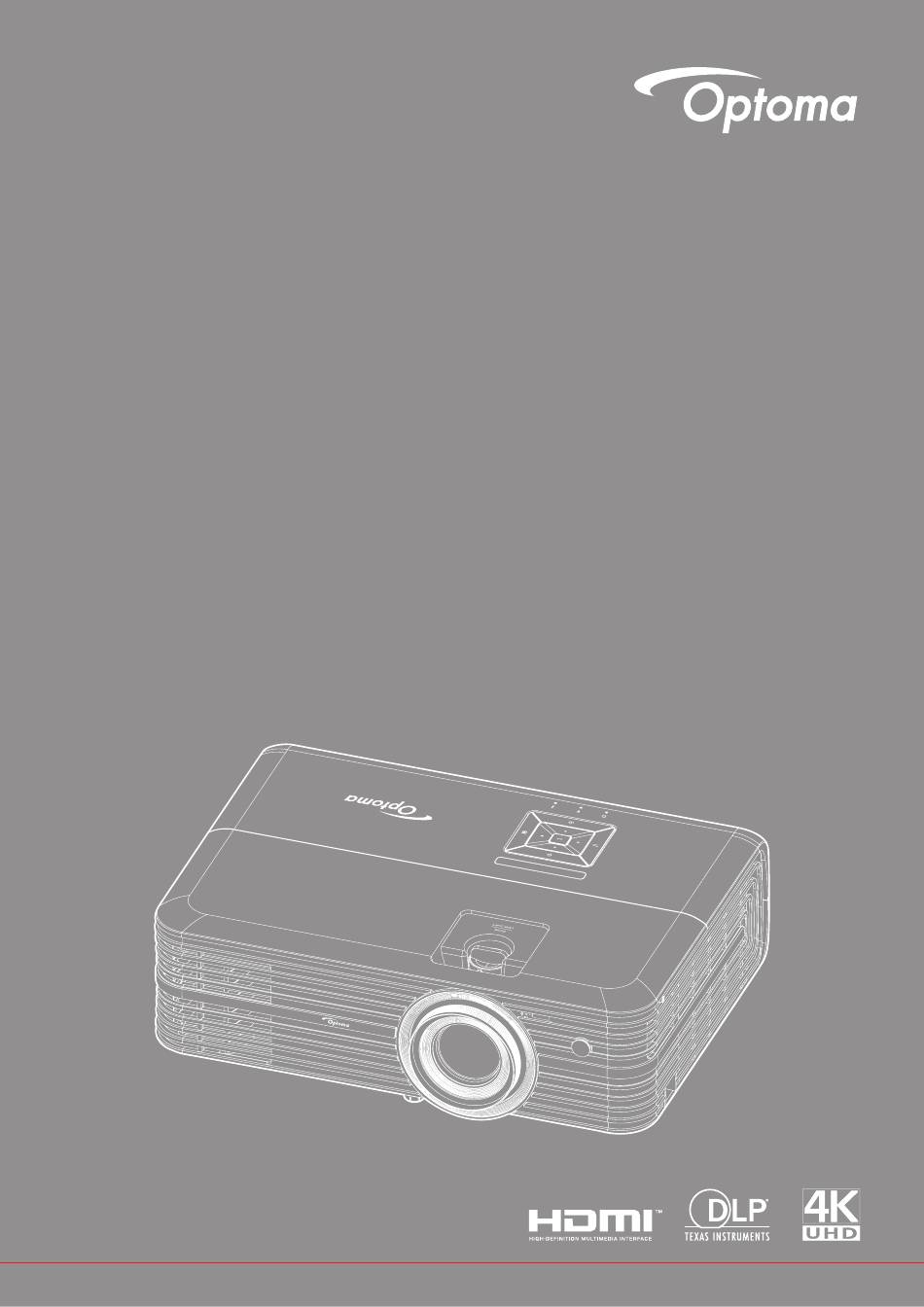

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Cleaning the lens ........................5 3D Safety Information ........................ 6 Copyright ........................... 7 Disclaimer ..........................7 Trademark Recognition ......................7 FCC ............................7 Declaration of Conformity for EU countries ................8 WEEE ............................
  • Page 3 Compatible resolutions ......................59 Image size and projection distance ..................61 Projector dimensions and ceiling mount installation ..............62 IR remote codes ........................63 Troubleshooting ........................64 Warning indicators ........................66 Specifications ........................... 68 Optoma global offices ....................... 69 English...

  • Page 4: Safety

    SAFETY The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: Cleaning The Lens

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 6: 3D Safety Information

    ‡ Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your fingers. ‡ Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is damaged due to the cleaning process, it is not covered by the warranty.

  • Page 7: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2018 Disclaimer The information in this document is subject to change without notice.

  • Page 8: Declaration Of Conformity For Eu Countries

    Noticee: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector. Operation Conditions This device complies with Part 15 of the FCC Rules.

  • Page 9: Introduction

    ‡ The actual remote control may vary depending on the region. ‡ The remote control is shipped with the battery. ‡ * For European warranty Information, please visit www.optoma.com. Optional accessories HDMI cable Lens cap Notee: Optional accessories vary depending on model, specification and region.

  • Page 10: Product Overview

    INTRODUCTION Product Overview Minimum 100mm Minimum Minimum 100mm 100mm Minimum Minimum 300mm 300mm Minimum 100mm Notee: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

  • Page 11: Connections

    INTRODUCTION Connections Item Item RJ-45 Connector Service Connector RS232 Connector 10. S/PDIF Connector HDMI 1 Connector 11. USB2.0 Connector HDMI 2 Connector 12. AUDIO OUT Connector VGA Connector 13. USB-A Connector 12V OUT Connector 14. Kensington Lock Port AUDIO IN Connector 15.

  • Page 12: Keypad

    INTRODUCTION Keypad Item Item Power Lamp LED Enter On/Standby LED Menu Return Home Four Directional Select Keys Temp LED English...

  • Page 13: Remote Control

    INTRODUCTION Remote control Enter Item Item Power On / Off Source Home Return Four Directional Select Keys Enter Mute 10. Display Mode Volume - 11. Option Menu 12. Volume + Notee: ‡ Some keys may have no function for models that do not support these features. ‡...

  • Page 14: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English...

  • Page 15: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item Item Item 1. RJ-45 Cable 5. Audio In Cable 9. S/PDIF Out Cable 13. HDMI Dongle 2. HDMI Cable 6. USB Flash Drive 10. USB Power Cable 14. Wi-Fi Dongle for Alexa Wi-Fi Dongle for 3.

  • Page 16: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom, lens shift, and focus...

  • Page 17: Remote Setup

    SETUP AND INSTALLATION ‡ To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible. Focus Ring Notee: The projector will focus at a distance of 1.2m to 8.1m. Remote setup Installing / replacing the battery Use a coin to turn the battery cover counterclockwise until the cover opens.
  • Page 18 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an angle within 30° (horizontally) or 20° (vertically) perpendicular to the projector’s IR remote control sensor to function correctly.

  • Page 19: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Enter Enter Powering on Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red. Turn on the projector by pressing the “ ” button on the projector keypad or the remote control. A start up screen will display in approximately 10 seconds and the On/Standby LED will be flashing blue.
  • Page 20 USING THE PROJECTOR [Select Power Mode] [Select OTA Sever ] [Agreement] Powering off Turn off the projector by pressing the “ ” button on the projector keypad or the remote control. The following message will be displayed: Power Off Please press power again Press the “...

  • Page 21: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the “ ”...

  • Page 22: Home Screen Overview

    USING THE PROJECTOR Home screen overview The Home screen is displayed every time you start the projector. From the main Home screen, it basically divided into 3 main categories: Projector, Application, and Settings. To navigate the Home screen, simply use the buttons on the remote control or the projector keypad. You can return to the main Home screen at any time by pressing the on the remote control or on the...

  • Page 23: Projector Settings

    USING THE PROJECTOR Projector settings On the Projector home screen, you can change the input source, configure the projector settings, and adjust the volume level. Selecting an input source Besides pressing the “ ” button on the remote control to select the desired input, you can also change the input source by selecting Source option.
  • Page 24 USING THE PROJECTOR Configure the projector settings Select Projector Settings to manage various device configurations including configuring the device settings, viewing the system information, and restore the system settings. General menu navigation Press Enter on the remote control or on the projector keypad to enter the Projector Settings menu.
  • Page 25 USING THE PROJECTOR Use pq keys to select the desired item in the sub menu and then press Enter or to view further settings. Adjust the settings by using tu keys. Select the next item to be adjusted in the sub menu and adjust as described above. Press Enter or to confirm, and the screen will return to the main menu.
  • Page 26 USING THE PROJECTOR Level 1 Level 2 Level 3 Level 4 Value BrilliantColor™ 1 ~ 10 Color Temperature Native Native HDTV Color Gamut Presentation Cinema Game Auto [Default] Color Space [Not HDMI Input] Auto [Default] RGB(0~255) Color Space [HDMI Input] RGB(16~235) Color Settings Red [Default]...
  • Page 27 USING THE PROJECTOR Level 1 Level 2 Level 3 Level 4 Value Eco. Brightness Mode Bright Digital Zoom -5 ~ 25 [Default:0] 16:9 Aspect Ratio Native Image Settings Auto [Default] PureMotion Middle High Reset 3D Mode Off [Default] Auto [Default] 3D Format Top and Bottom Frame Packing...
  • Page 28 USING THE PROJECTOR Level 1 Level 2 Level 3 Level 4 Value Direct Power On Off [Default] On [Default] Auto Power Off Off(0) ~ 990 (30 min Power Settings increments) Sleep Timer(min.) [Default: Off] Eco. [Default] Power Mode(Standby) Active Full Power Active Projector ID 0 ~ 99 [Default: 0] None [Default]...
  • Page 29 USING THE PROJECTOR Level 1 Level 2 Level 3 Level 4 Value Regulatory Serial Number HDMI1 / HDMI2 / VGA / Source Component / Media Resolution None / Cinema / HDR/ HDR SIM. / Game / Display Mode Reference / Bright / User / 3D / ISF Day / ISF Night Brightness Mode...
  • Page 30 USING THE PROJECTOR Image settings menu Display mode There are many factory presets optimized for various types of images. Cinema: Provides the best colors for watching movies. ‡ ‡ HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut.
  • Page 31 USING THE PROJECTOR Brightness Adjust the brightness of the image. Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Sharpness Adjust the sharpness of the image. Color Adjust a video image from black and white to fully saturated color. Tint Adjust the color balance of red and green.
  • Page 32 USING THE PROJECTOR Notee: This menu is only available if the input source is RGB. Dynamic Black Use to automatically adjust the picture brightness to give optimum contrast performance. Brightness Mode Adjust the brightness mode settings. ‡ Eco: Choose “Eco” to dim the projector lamp which will lower power consumption and extend the lamp life.
  • Page 33 USING THE PROJECTOR 1280 3840 2160 HDTV 1920 1080 3840 2160 PureMotion Use to preserve a natural motion of the displayed image. Reset Return the factory default settings for color settings. 3D menu Notee: The maximum resolution is 1080P (4K resolution is not supported). 3D Mode Use this option to enable/disable the 3D mode function.
  • Page 34 USING THE PROJECTOR Projector settings menu Lamp Settings ‡ Lamp Hour: Display the projection time. Lamp Reset: Resets the lamp hour counter after replacing the lamp. ‡ ‡ Lamp Reminder: Choose this function to show or to hide the warning message when the changing lamp message is displayed.
  • Page 35 USING THE PROJECTOR 12V Trigger: Use this function to enable or disable the trigger. ‡ ‡ On: Choose “On” to enable the trigger. ‡ Off: Choose “Off” to disable the trigger. Info menu View the projector information as listed below: ‡...
  • Page 36 USING THE PROJECTOR Adjusting the volume level Select Volume to adjust the audio volume level. Then press Enter on the remote control or on the projector keypad to enter the Volume menu. Use tu keys to adjust the desired volume level. Notee: You can set the volume level to 0 to activate the mute function.

  • Page 37: Application Settings

    USING THE PROJECTOR Application settings On the Application home screen, you can view the multimedia files, register the projector to the Device Cloud, and stream media files wirelessly. To switch to the Application home screen, select one of the main categories and use tu keys to select Application.
  • Page 38 USING THE PROJECTOR Video Decode Maximum Maximum Bit Rate File Format Video Format Profile Resolution (bps) MPG, MPEG MPEG1/2 1920 x 1080 60fps 40M bps MP@HP MOV, MP4, MKV H.264 4096 x 2176 30fps 135M bps MP/HP @Level 5.1 AVI, MOV, MP4 MPEG4 1920 x 1080 60fps 40M bps...
  • Page 39 USING THE PROJECTOR Document Size Support Version and Format Pages/Lines Limitation Format Limitation Kingsoft Spreadsheets Files (*.et) Kingsoft Spreadsheets Template (*.ett) Microsoft Excel 97/2000/XP/2003 Workbook (*.xls) Microsoft Excel 97/2000/XP/2003 Template (*.xlt) Row Limit: up to 65,535 Text Files (*.csv) Excel Column Limit: up to 256 Up to 30MB Web Pages (*.htm, *.html)
  • Page 40 USING THE PROJECTOR Entering the multimedia mode Insert a USB flash drive to the USB connector on the rear side of the projector. The available files appears on the screen. Notee: To manually enter the multimedia mode, select Application > Media Player. Browse and select the file you want to view.
  • Page 41 USING THE PROJECTOR Playing Videos From the left panel, select Video to browse all video files. If there are several folders, press pqtu keys to select the desired folder, then press Enter/ view the subfolder content. Press pqtu keys to select the video you want play, then press Enter/ to start the playback.
  • Page 42 USING THE PROJECTOR Viewing Photos From the left panel, select Picture to browse all picture files. If there are several folders, press pqtu keys to select the desired folder, then press Enter/ view the subfolder content. Press pqtu keys select a photo, then press Enter/ to view the photo in full screen.
  • Page 43 USING THE PROJECTOR ± Select enlarge photo to magnify the view of a photo. ± Select Previous to view the previous photo. Select Next to view the next photo. ± Slide show Settings cycle mode Set the slide show mode option. cycle effect Select the transition effect between each slide displays.
  • Page 44 USING THE PROJECTOR Playing Music From the left panel, select Music to browse all songs or audio files. If there are several folders, press pqtu keys to select the desired folder, then press Enter/ view the subfolder content. Press pqtu keys to select the song you want play, then press Enter/ to start the playback.
  • Page 45 USING THE PROJECTOR Viewing Document From the left panel, select Doc to browse all document files. If there are several folders, press pqtu keys to select the desired folder, then press Enter/ view the subfolder content. Press pqtu keys to select the document you want to view, then press Enter/ to open the file.
  • Page 46 USING THE PROJECTOR Notee: When opening a Powerpoint file, the Play Mode menu will appear on the screen. Then select the desired play mode and select OK to start browsing the file. English...
  • Page 47 USING THE PROJECTOR Registering the projector to Device Cloud Select Smart Home to register the projector to the Device Cloud. Then press Enter on the remote control or the projector keypad to enter the Smart Home menu. The current setting parameters are displayed on the screen. To register the projector to the Device Cloud, please refer to page 70.
  • Page 48 USING THE PROJECTOR Wireless Media Streaming Select TapCast to project your mobile device display to the projector through Wi-Fi connection. Then press Enter on the projector keypad to enter the TapCast screen. on the remote control or When using TapCast function for the first time, download and install the TapCast application into your mobile device.

  • Page 49: Application Settings

    USING THE PROJECTOR Notee: The connection method may varies depending on the dongle type. Please refer to its documentation for details. Launch “TapCast” application and connect to your dongle. Once connected, the mobile device display will be projected on the screen. Application settings Accessing all apps Select Apps to view the apps list.

  • Page 50: General Settings

    USING THE PROJECTOR General settings On the Settings home screen, you can set the on-screen display (OSD) language and configure the network settings. To switch to the Settings home screen, select one of the main categories and use tu keys to select Settings.
  • Page 51 USING THE PROJECTOR Configuring the network settings Select Network to configure the network setting. Then press Enter on the remote control or on the projector keypad to enter the Network menu. Select Projector Control Settings. Then perform the necessary settings. Notee: To configure the wireless connection, select Wireless Setting (Wi-Fi Display) and do the following: a.
  • Page 52 USING THE PROJECTOR b. Connect to an available Wi-Fi network from the list. If you connect to a secure Wi-Fi network, you must enter the password when prompted. English...
  • Page 53 USING THE PROJECTOR LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. Projector (Ethernet) Wired LAN terminal functionalities This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.
  • Page 54 USING THE PROJECTOR Ethernet Settings Configure the network parameters. ± DHCP: Off ± IP Address: 192.168.0.100 ± Subnet Mask: 255.255.255.0 ± Gateway: 192.168.0.254 ± DNS: 192.168.0.51 Wireless Settings Connect to other Alexa devices after you have complete the necessary connection settings. English...
  • Page 55 USING THE PROJECTOR Projector Control Functions Configure how to monitor and control your projector over the network. English...

  • Page 56: Maintenance

    MAINTENANCE Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen. Warning Lamp Warning Lamp life exceeded. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible.
  • Page 57 MAINTENANCE Replacing the lamp (continued) Procedure: Switch off the power to the projector by pressing the “ ” button on the projector keypad or the remote control. Allow the projector to cool down for at least 30 minutes. Disconnect the power cord. Remove the 2 screws securing the top cover.

  • Page 58: Installing And Cleaning The Dust Filter

    MAINTENANCE Installing and cleaning the dust filter Installing the dust filter Notee: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

  • Page 59: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital (HDMI 1.4) Native resolution: 1920 x 1080 @ 60Hz Established Timing Standard Timing Descriptor Timing Supported Video Mode Detail Timing 720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz 720 x 480i @ 60Hz 16:9 1920 x 1080p @ 60Hz (default)
  • Page 60 ADDITIONAL INFORMATION B0 / Established Timing B0 / Standard Timing B1 / Video Mode B1 / Detail Timing 4096 x 2160 @ 30Hz 4096 x 2160 @ 50Hz 4096 x 2160 @ 60Hz Notee: Support 1920 x 1080 @ 50Hz. Analog Native resolution: 1920 x 1080 @ 60Hz B0 / Established Timing...

  • Page 61: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance Screen Size W x H Projection Distance (D) Offset (HD) Diagonal length (inch) size (inch) (feet) of 16e:9 Screen Width Height Width Height Wide Tele Wide Tele (feet) 0.66 0.37 25.97 14.61 1.05 3.44 0.02 0.07...

  • Page 62: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 63: Ir Remote Codes

    ADDITIONAL INFORMATION IR remote codes Enter MTX. Format Data0 Data1 Data2 Data3 Description Power Refer to the "Power On/ Off the Projector" on / off section on page 19. Source Press to select an input signal. Home Press to return to the Home screen. Press to launch the on-screen display Menu...

  • Page 64: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 65 ADDITIONAL INFORMATION Two images, side-by-side format ‡ Set the “3D” --> ”3D Format” to “SBS“. Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

  • Page 66: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes red. ‡ "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes red. This indicates the projector has overheated.
  • Page 67 ADDITIONAL INFORMATION ‡ Power off: Power Off Please press power again ‡ Temperature warning: Warning TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above.

  • Page 68: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description - Graphic up to 2160p@60Hz Maximum resolution - Maximum Resolution: HDMI1 (2.0): 2160p@60Hz HDMI2 (2.0): 2160p@60Hz Native resolution (w/o actuator) 1920x1080 Lens Manual zoom and manual focus Image size (diagonal) 34.1”~302.4”, optimized@wide 82”(2.2m) Projection distance 1.2~8.1m, optimized@1.61m Electrical Description...

  • Page 69: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 47697 Westinghouse Drive, 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94539, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 3178 Laurelview Ct. 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 70 *36.7CM08G001-A* P/N:36.7CM08G001-A www.optoma.com...
